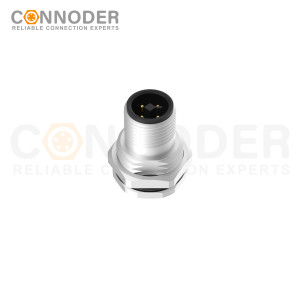

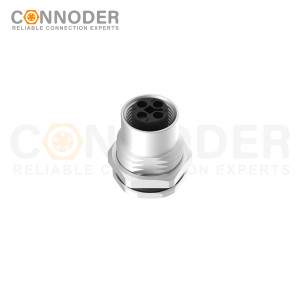

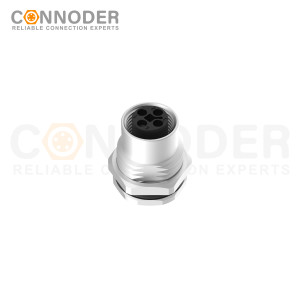

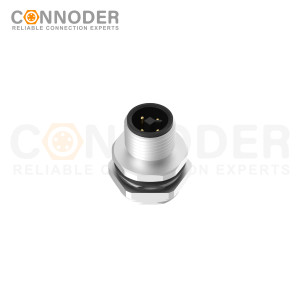

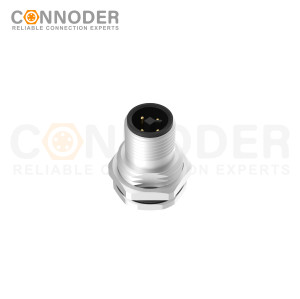

M12 T coded Female Circular Connector-Panel Mount,Solder Connection,M16x1.5, Rear Fastened
- Model
- MC12TF-04F2LSLNS301
Item specifics
- Type
- M12 Circular Connector
- Contact Connection Type
- Female Connector
- Number OF Positions
- 2 Pin/2 Pin+PE/3 Pin+PE
- Coding
- T
- Termination
- Solder
- Mounting Type
- Rear Fastened
- Shielded Option
- Unshielded
- Approval
- UL
- Pollution
- III
- Flame Retardant
- IEC61076-2-111
Review
Description
M12 T coded Circular Connector characteristic
Description
- The M12 T code Circular Connector from Connoder is the ideal solution specifically designed for industrial power transmission. T-coded connectors, with their unique design and superior performance, offer unmatched reliability in a wide range of industrial applications.
- Efficient power transmission: The M12T coded connector supports a voltage class of 60V.
- High standard of protection: IP67 or higher protection to ensure stable operation in wet or dusty environments.
- Anti-misinsertion design: The unique key design of the T-code effectively prevents the wrong connection with other types of connectors and ensures the safe operation of the equipment.
- Durable: Made of high-quality materials, with good impact resistance and corrosion resistance, adapt to a variety of harsh environments.
M12 T coded Circular Connector Specification
Shell Material | Brass Nickel Plated/Zinc Alloy Nickel Plated/PA+GF | |
Sealing Material | Epoxy Resin/Rubber | |
Contact Material | Phosphor Copper Gold Plated/Brass Gold Plated | |
Insulator Material | PA+PA+GF/TPU | |
Molding Material | TPU/PVC | |
Contact Resistance | ≤5mΩ | |
Durability | ≥ 500 Cycles | |
Insulation Resistance | 100 MΩ | |
Applicable Temperature | -40℃ Tо +80℃ | |
Waterproof Grade | IP67/IP68 | |
M12 T coded Circular Connector Size diagram
M12 T coded Circular Connector Electrical parameter:
Product model | Pins | Rated current | Rated voltage | Wire Gauge/Size | |||
A/C | D/C | AWG | mm² | ||||
MC12TF-02F2LSLNS301 | 2 | 12A | 60V | 60V | 16 | 1.5 | |
MC12TF-03F2LSLNS301 | 2+PE | 12A | 60V | 60V | 16 | 1.5 | |
MC12TF-04F2LSLNS301 | 3+PE | 12A | 60V | 60V | 16 | 1.5 | |
M12 T coded Circular Connector Coding Parameter:
| Code Type | Pins | Male | Female |
| S Code | 2 |  |
 |
| 2+PE |  |
 |
|
| 3+PE |  |
 |
|
| T Code | 2 |  |
 |
| 2+PE |  |
 |
|
| 3+PE |  |
 |
|
| K Code | 2 |  |
 |
| 2+PE |  |
 |
|
| 3+PE |  |
 |
|
| 4+PE |  |
 |
|
| L Code | 2 |  |
 |
| 2+FE |  |
 |
|
| 3 |  |
 |
|
| 3+FE |  |
 |
|
| 4 |  |
 |
|
| 4+FE |  |
 |
|
| M Code | 2 |  |
 |
| 2+PE |  |
 |
|
| 3+PE |  |
 |
|
| 4+PE |  |
 |
|
| 5+PE |  |
 |
Note: If you need more parameter pictures or can not see clearly, please contact our customer service staff
M12 T coded Circular Connector Wire Definition:
| Pins | 2+PE S Core Color | Pins | 4+PE S Core Color | Pins | 4Pin T Core Color | |||
| 1 | BK1 |  |
1 | BK1 | |
1 | BN |  |
| 2 | BK2 | |
2 | BK2 | |
2 | WH |  |
| PE | GNYE |  |
3 | BK3 | |
3 | BU |  |
| PE | GNYE | |
4 | BK | |
|||
| - | ||||||||
| Pins | 4/4+PE L Core Color | Pins | 4+PE K Core Color | Pins | 5+PE M Core Color | |||
| 1 | BN | |
1 | BK1 | |
1 | BK1 | |
| 2 | WH | |
2 | BK2 | |
2 | BK2 | |
| 3 | BU | |
3 | BK3 | |
3 | BK3 | |
| 4 | BK | |
4 | BK4 | |
4 | BK4 | |
| PE | GY |  |
PE | GNYE | |
5 | BK5 | |
| PE | GNYE | |
||||||
Remark: Wiring definition according to conventional standards. if according to the agreement or other please contact our sales.
M12 T coded Circular Connector Application:
Industrial Automation
Food Packaging
Warehousing Logistics
Automated Production
