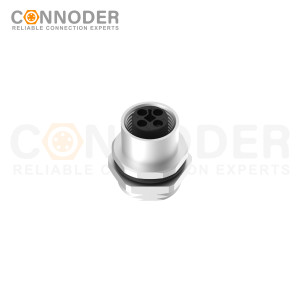

M12 T Coded Male Straight Circular Connector-Field Wireable,Solder Connection,PG7
- Model
- MC12TM-04N1LSMNS601
Item specifics
- Type
- M12 Circular Connector
- Contact Connection Type
- Male Connector
- Number OF Positions
- 2 Pin/2 Pin+PE/3 Pin+PE
- Coding
- T
- Termination
- Screw
- Mounting Type
- Straight Plastic Assembled
- Shielded Option
- Unshielded
- Approval
- UL
- Pollution
- III
- Flame Retardant
- IEC61076-2-111
Review
Description
M12 T Coded Circular Connector characteristic
Description
- The M12 T code Circular Connector from Connoder is the ideal solution specifically designed for industrial power transmission. T-coded connectors, with their unique design and superior performance, offer unmatched reliability in a wide range of industrial applications.
- Efficient power transmission: The M12T coded connector supports a voltage class of 60V.
- High standard of protection: IP67 or higher protection to ensure stable operation in wet or dusty environments.
- Anti-misinsertion design: The unique key design of the T-code effectively prevents the wrong connection with other types of connectors and ensures the safe operation of the equipment.
- Durable: Made of high-quality materials, with good impact resistance and corrosion resistance, adapt to a variety of harsh environments.
Difference between PG7 and PG9
PG7 and PG9 are German standard thread sizes for cable fixing devices.PG7 is suitable for cable diameters from approx. 3.5mm to 6.5mm, while PG9 is suitable for cable diameters from approx. 4mm to 8mm. The choice depends on the cable diameter and equipment requirements.
M12 T Coded Circular Connector Specification
Shell Material | Brass Nickel Plated/Zinc Alloy Nickel Plated/PA+GF | |
Sealing Material | Epoxy Resin/Rubber | |
Contact Material | Phosphor Copper Gold Plated/Brass Gold Plated | |
Insulator Material | PA+PA+GF/TPU | |
Molding Material | TPU/PVC | |
Contact Resistance | ≤5mΩ | |
Durability | ≥ 500 Cycles | |
Insulation Resistance | 100 MΩ | |
Applicable Temperature | -40℃ Tо +80℃ | |
Waterproof Grade | IP67/IP68 | |
M12 T Coded Circular Connector Size diagram
M12 T Coded Circular Connector Electrical parameter:
Product model | Pins | Rated current | Rated voltage | Wire Gauge/Size | |||
A/C | D/C | AWG | mm² | ||||
MC12TM-02N1LSMNS601 | 2 | 12A | 60V | 60V | 16 | 1.5 | |
MC12TM-03N1LSMNS601 | 2+PE | 12A | 60V | 60V | 16 | 1.5 | |
MC12TM-04N1LSMNS601 | 3+PE | 12A | 60V | 60V | 16 | 1.5 | |
M12 T Coded Circular Connector Coding Parameter:
| Code Type | Pins | Male | Female |
| S Code | 2 |  |
 |
| 2+PE |  |
 |
|
| 3+PE |  |
 |
|
| T Code | 2 |  |
 |
| 2+PE |  |
 |
|
| 3+PE |  |
 |
|
| K Code | 2 |  |
 |
| 2+PE |  |
 |
|
| 3+PE |  |
 |
|
| 4+PE |  |
 |
|
| L Code | 2 |  |
 |
| 2+FE |  |
 |
|
| 3 |  |
 |
|
| 3+FE |  |
 |
|
| 4 |  |
 |
|
| 4+FE |  |
 |
|
| M Code | 2 |  |
 |
| 2+PE |  |
 |
|
| 3+PE |  |
 |
|
| 4+PE |  |
 |
|
| 5+PE |  |
 |
Note: If you need more parameter pictures or can not see clearly, please contact our customer service staff
M12 T Coded Circular Connector Wire Definition:
| Pins | 2+PE S Core Color | Pins | 4+PE S Core Color | Pins | 4Pin T Core Color | |||
| 1 | BK1 |  |
1 | BK1 | |
1 | BN |  |
| 2 | BK2 | |
2 | BK2 | |
2 | WH |  |
| PE | GNYE |  |
3 | BK3 | |
3 | BU |  |
| PE | GNYE | |
4 | BK | |
|||
| - | ||||||||
| Pins | 4/4+PE L Core Color | Pins | 4+PE K Core Color | Pins | 5+PE M Core Color | |||
| 1 | BN | |
1 | BK1 | |
1 | BK1 | |
| 2 | WH | |
2 | BK2 | |
2 | BK2 | |
| 3 | BU | |
3 | BK3 | |
3 | BK3 | |
| 4 | BK | |
4 | BK4 | |
4 | BK4 | |
| PE | GY |  |
PE | GNYE | |
5 | BK5 | |
| PE | GNYE | |
||||||
Remark: Wiring definition according to conventional standards. if according to the agreement or other please contact our sales.
M12 T Coded Circular Connector Application:
Industrial Automation
Food Packaging
Warehousing Logistics
Automated Production
