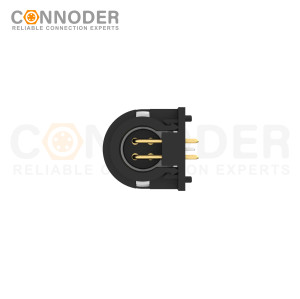

M12 D Coded Female Circular Connector-Panel Mount,PCB Dip-solder Connection,M16x1.5, Front Fastened
- Model
- MC12DF-04R2LDLNS301
Item specifics
- Type
- M12 Circular Connector
- Contact Connection Type
- Female Connector
- Number OF Positions
- 4 Pin
- Coding
- D
- Termination
- PCB type
- Mounting Type
- Front Fastened
- Shielded Option
- Unshielded
- Approval
- UL
- Pollution
- III
- Flame Retardant
- IEC61076-2-111
Review
Description
M12 D Coded Circular Connector characteristic
Description
- Pin count configuration: M12 D coded connectors are typically available in a 4-pin configuration, making them ideal for Ethernet and other high-speed data transfer protocol applications such as ProfiNet and EtherCAT. This configuration meets the needs of most industrial networks, ensuring fast and stable data exchange.
- High-performance materials: The M12 D coded connectors feature gold-plated contacts and corrosion-resistant housing materials. The high-quality material not only improves the electrical conductivity, enhances the durability of the connector, and can maintain stable operation under harsh working conditions.
- Protection level: up to IP67 or higher protection level, effectively prevent dust from entering, and can resist underwater immersion in a short time. The M12D code connector also performs well outdoors or in wet, dusty environments.
- Application scenario: M12 D coded circular connectors are widely used in industrial Ethernet, Internet of Things (IoT), factory automation, sensor networks and other fields. Whether used to connect field devices or to build complex network architectures, M12D coded connectors provide the ideal solution.
M12 D Coded Circular Connector Specification
Shell Material | Brass Nickel Plated/Zinc Alloy Nickel Plated/PA+GF | |
Sealing Material | Epoxy Resin/Rubber | |
Contact Material | Phosphor Copper Gold Plated/Brass Gold Plated | |
Insulator Material | PA+PA+GF/TPU | |
Molding Material | TPU/PVC | |
Contact Resistance | ≤5mΩ | |
Durability | ≥ 500 Cycles | |
Insulation Resistance | 100 MΩ | |
Applicable Temperature | -40℃ Tо +80℃ | |
Waterproof Grade | IP67/IP68 | |
M12 D Coded Circular Connector Size diagram
M12 D Coded Circular Connector Electrical parameter:
Product model | Pins | Rated current | Rated voltage | Wire Gauge/Size | |||
A/C | D/C | AWG | mm² | ||||
MC12DF-04R2LDLNS301 | 4 | 4A | 250V | 250V | 22 | 0.34 | |
M12 Straight Female Connector Coding Parameter:
| Pins | 4D | Pins | 4D |
| Male |  |
Female |  |
Note: If you need more parameter pictures or can not see clearly, please contact our customer service staff
M12 Straight Female Connector Wire Definition:
| Pins | 4 Pin Core Color | |
| 1 | YE |  |
| 2 | WH |  |
| 3 | OG |  |
| 4 | BU |  |
Remark: Wiring definition according to conventional standards. if according to the agreement or other please contact our sales.
M12 Straight Female Connector PCB Pins Arrangement:
| Pins | 4D | Pins | 4D |
| Male |  |
Female | |
M12 Circular Connector Application:
Industrial Automation
Food Packaging
Warehousing Logistics
Automated Production
