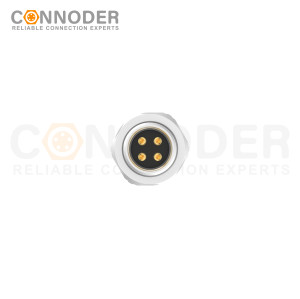

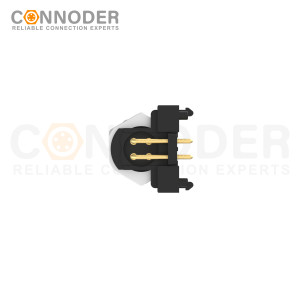

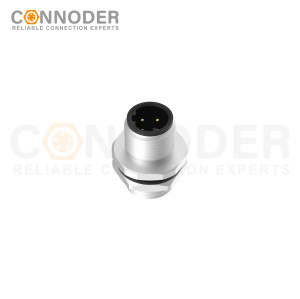

M12 D Coded Male Curved Circular Connector-Rear Mount Sockets, PCB Dip-solder Connection,M15x1
- Model
- MC12DM-04R2LDLSR201
Item specifics
- Type
- M12 Circular Connector
- Contact Connection Type
- Male Connector
- Number OF Positions
- 4 Pin
- Coding
- D
- Termination
- PCB type
- Mounting Type
- Right Angle Sockets
- Shielded Option
- Yes/No Optional
- Approval
- UL
- Pollution
- III
- Flame Retardant
- IEC61076-2-111
Review
Description
M12 Circular Connector characteristic
Description
- M12 round connector provides multiple key control options (A, B, C, D, K, L, M, P, S, T, X, Y) and pins (2, 3, 4, 5, 6 , 8, 12, 17), ensure reliable connection and stable signal transmission.
- Its compact design and high reliability are suitable for various applications such as industrial automation, robotics and process control.
- The M12 circular connector is designed with a threading, which is easy to install and has IP67/IP68 waterproof level. Use national standard brass and thickened copper core to ensure excellent conductivity. Nickel -plated metal shells and wear -resistant nuts provide a firm connection, the contact is plated, and the life span is 500 times, and the contact resistance is low.
M12 Circular Connector Specification
Shell Material | Brass Nickel Plated/Zinc Alloy Nickel Plated/PA+GF | |
Sealing Material | Epoxy Resin/Rubber | |
Contact Material | Phosphor Copper Gold Plated/Brass Gold Plated | |
Insulator Material | PA+PA+GF/TPU | |
Molding Material | TPU/PVC | |
Contact Resistance | ≤5mΩ | |
Durability | ≥ 500 Cycles | |
Insulation Resistance | 100 MΩ | |
Applicable Temperature | -40℃ Tо +80℃ | |
Waterproof Grade | IP67/IP68 | |
M12 Circular Connector Size diagram
M12 Circular Connector Electrical parameter:
Product model | Pins | Rated current | Rated voltage | Wire Gauge/Size | |||
A/C | D/C | AWG | mm² | ||||
MC12DM-04R2LDLSR201 | 4 | 4A | 250V | 250V | 22 | 0.34 | |
M12 Circular Connector Coding Parameter:
| Pins | 4D | Pins | 4D |
| Male |  |
Female |  |
Note: If you need more parameter pictures or can not see clearly, please contact our customer service staff
M12 Circular Connector Wire Definition:
| Pins | 4 Pin Core Color | |
| 1 | YE |  |
| 2 | WH |  |
| 3 | OG |  |
| 4 | BU |  |
Remark: Wiring definition according to conventional standards. if according to the agreement or other please contact our sales.
M12 Circular Connector PCB Pins Arrangement:
| Pins | 4D | Pins | 4D |
| Male |  |
Female | |
M12 Circular Connector Application:
Industrial Automation
Food Packaging
Warehousing Logistics
Automated Production
