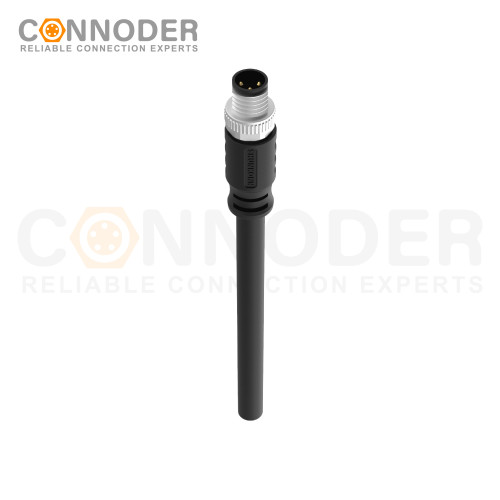

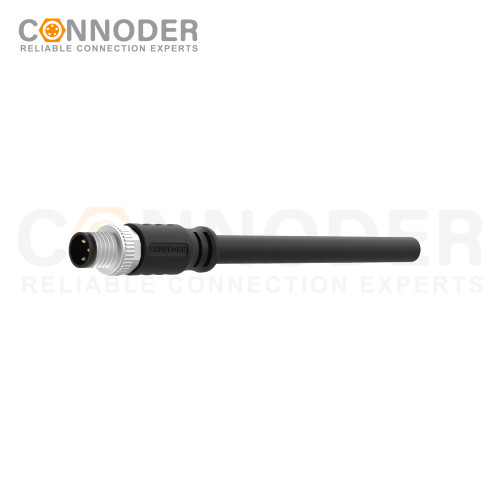

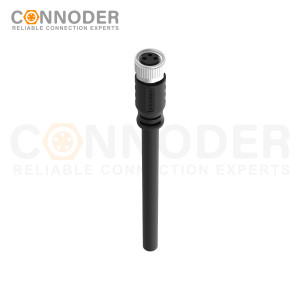

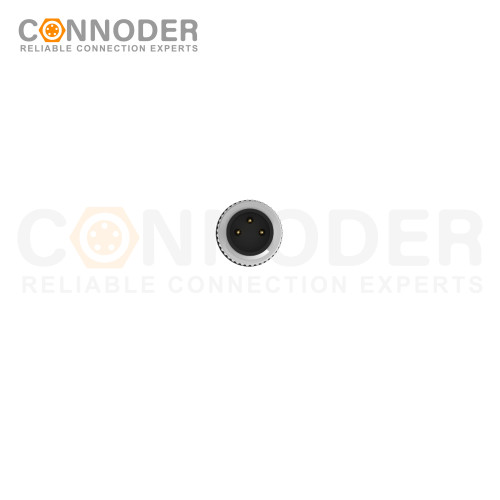

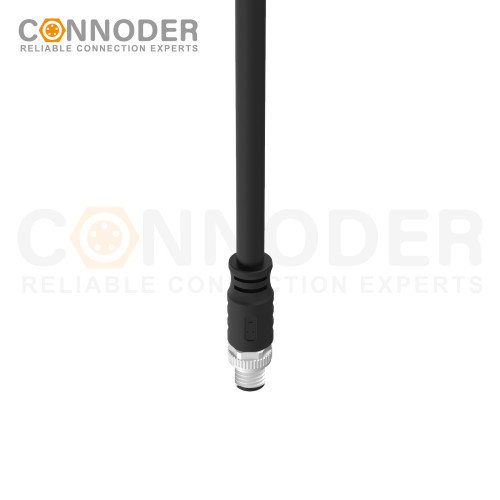

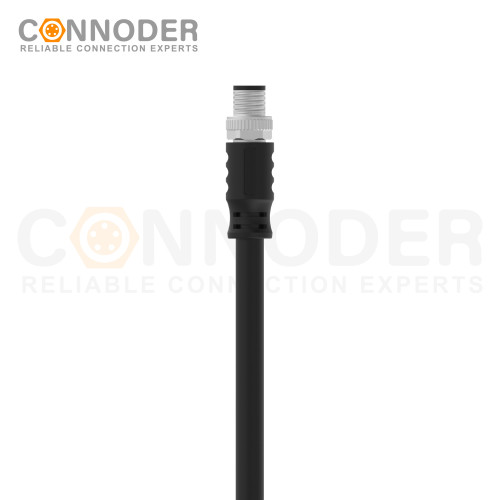

Model
MB08AM-035LSSTXXXXX01

Item specifics

Type
M8 Cable Connector
Contact Connection Type
Male Connector
Number OF Positions
3 Pin（3/4/5/6/8 Pin Optional）
Coding
A
Termination
Solder
Mounting Type
Overmolded Type
Shielded Option
Yes/No Optional
Approval
UL
Pollution
III
Flame Retardant
IEC61076-2-111

Review

Description

M8 sensor cables characteristic
M8 sensor cables
Description
  • M8 sensor cables are widely used in industrial automation, sensor and actuator systems for signal transmission or power supply.
  • Needle number configuration: There are different needle number configurations 3, 4, 5, 6, 8, to adapt to different application requirements.
  • Protection level: With high protection level IP67, able to work in harsh environments.
  • Material choice: The connector housing may be made of plastic or metal, depending on the application requirements.
  • Cable length and type: can be equipped with different lengths of cable, and can choose PVC, PUR and other materials of cable jacket, to meet the specific environment of oil resistance, wear resistance requirements.
M8 sensor cables Specification
Shell Material
Brass Nickel Plated/Zinc Alloy Nickel Plated/PA+GF
Sealing Material
Epoxy Resin/Rubber
Contact Material
Phosphor Copper Gold Plated/Brass Gold Plated
Insulator Material
PA+GF/TPU
Molding Material
TPU/PVC
Contact Resistance
≤5mΩ
Durability
≥ 500 Cycles
Insulation Resistance
100 MΩ
Applicable Temperature
-40℃ Tо +80℃
Waterproof Grade
IP67/IP68
M8 sensor cables Electrical parameter:
Product model
Pins
Rated current
Rated voltage
Wire Gauge/Size
A/C
D/C
AWG
mm²
MB08AM-035LSSTXXXXX01
3
3A
60V
60V
24
0.25
MB08AM-045LSSTXXXXX01
4
3A
60V
60V
24
0.25
MB08AM-065LSSTXXXXX01
6
1.5A
30V
30V
26
0.14
MB08AM-085LSSTXXXXX01
8
1.5A
30V
30V
26
0.14
M8 sensor cables Coding Parameter:
Pins 3A 4A 6A
Male M8-3A-Male M8-4A-Male M8-6A-Male
8A 5B 4D
M8-8A-Male M8-5B-Male M8-4D-Male
Pins 3A 4A 6A
Female M8-3A-Female M8-4A-Female M8-6A-Female
8A 5B 4D
M8-8A-Female M8-5B-Female M8-4D-Female
Note: If you need more parameter pictures or can not see clearly, please contact our customer service staff
M8 sensor cables Wire Definition:
Pins 3 Pin Core Color Pins 4 Pin A Core Color Pins 4 Pin D Core Color
1 BN Image 1 BN Image 1 YE Image
2 - Image 2 WH Image 2 WH Image
3 BU Image 3 BU Image 3 OG Image
4 BK Image 4 BK Image 4 BU Image
-
Pins 5 Pin Core Color Pins 6 Pin Core Color Pins 8 Pin Core Color
1 BN Image 1 BN Image 1 WH Image
2 WH Image 2 WH Image 2 BN Image
3 BU Image 3 BU Image 3 GN
4 BK Image 4 BK Image 4 YE Image
5 GY Image 5 GY Image 5 GY Image
6 PK Image 6 PK Image
7 BU Image
8 RD
Remark: Wiring definition according to conventional standards. if according to the agreement or other please contact our sales.
