M12 vs M23 Connector Comparison
- Share
- Issue Time
- Jun 12,2026
Summary
As industrial automation, robotics, and Industry 4.0 technologies continue to evolve, selecting the right connector has become increasingly important. Connectors are no longer just components that establish electrical connections—they play a critical role in ensuring system reliability, signal integrity, equipment uptime, and long-term operational efficiency.

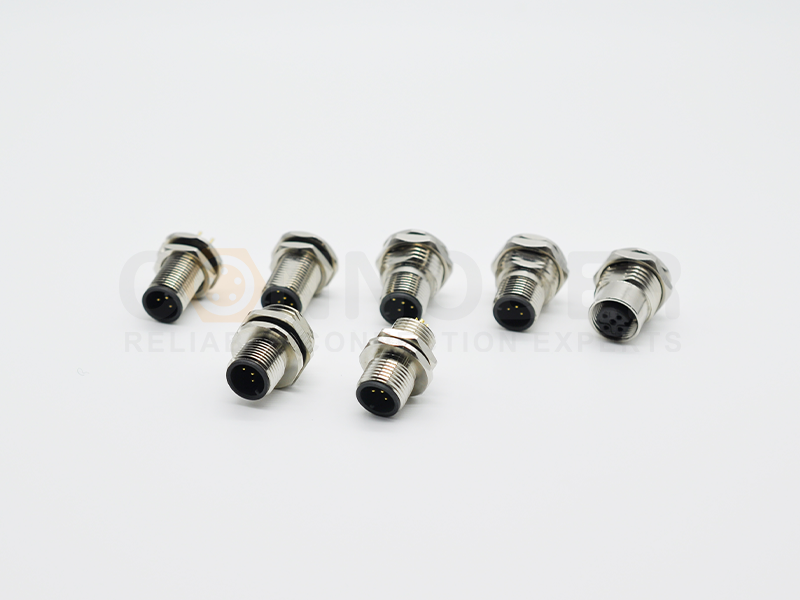

M12 vs M23 Connector Comparison
Introduction
As industrial automation, robotics, and Industry 4.0 technologies continue to evolve, selecting the right connector has become increasingly important. Connectors are no longer just components that establish electrical connections—they play a critical role in ensuring system reliability, signal integrity, equipment uptime, and long-term operational efficiency.
Circular Connectors
Rugged, compact and versatile — ideal when you need mixed power & signal plus environmental protection.
Among the most widely used industrial circular connectors, M12 connectors and M23 connectors are two of the most common choices. While both are designed for harsh industrial environments, they serve different purposes and excel in different applications.
In this comprehensive guide, we'll compare M12 and M23 connectors in terms of design, electrical performance, installation requirements, and industrial applications to help engineers, OEM manufacturers, and system integrators make the right choice.
What Is an M12 Circular Connector?
An M12 circular connector is a compact industrial connector featuring a 12 mm threaded locking mechanism. Originally developed for sensor connectivity, M12 connectors have evolved into one of the most versatile connection solutions in modern automation systems.
Today, M12 connectors support:
Signal transmission
Industrial Ethernet communication
Power distribution
Sensor and actuator connectivity
Machine vision systems
Key Benefits of M12 Connectors
Compact design for limited installation space
Reliable screw-locking mechanism
Excellent vibration resistance
Available in multiple coding types
Supports Industrial Ethernet protocols
IP67, IP68, and IP69K protection ratings
Common M12 Connector Applications
Industrial sensors
PLC systems
Factory automation
Conveyor systems
Machine vision equipment
Industrial networking
Automated warehousing
What Is an M23 Connector?
An M23 connector is a larger circular connector featuring a 23 mm threaded coupling system. Unlike M12 connectors, M23 connectors are primarily designed for applications requiring higher power transmission, more contact positions, and greater mechanical robustness.
M23 connectors are commonly used in:
Servo motors
Industrial robotics
Motion control systems
CNC machines
Packaging equipment
Heavy-duty automation systems
Key Benefits of M23 Connectors
Higher power handling capability
More contact configurations
Strong mechanical locking
Excellent environmental protection
Suitable for combined power and signal transmission
M12 vs M23 Connector: Key Differences at a Glance
M12 Connectors: Ideal for Compact Equipment
Because of their compact design, M12 connectors are ideal for sensors, actuators, distributed I/O systems, compact machinery, and high-density installations. Manufacturers increasingly favor M12 connectors in Industry 4.0 environments where space optimization is essential.
M23 Connectors: Built for Heavy-Duty Equipment
The larger housing of M23 connectors allows for more contacts, larger conductors, and greater mechanical durability, making them well suited for demanding industrial applications where strength and power transmission are priorities.
| Feature | M12 Connector | M23 Connector |
| Thread Size | 12 mm | 23 mm |
| Typical Application | Sensors, Ethernet, Automation | Servo Motors, Motion Control |
| Pin Count | 2–17 Pins | 6–19 Pins |
Current Capacity | Low to Medium | Medium to High |
Data Transmission | Excellent | Moderate |
Power Transmission Capability
M12 Connectors
Sensor power
Signal transmission
Low-power control circuits
Industrial communication systems
M23 Connectors
Servo motor power
Motion control systems
Industrial drives
High-current equipment
Data Communication Performance
With the rapid adoption of Industrial Ethernet, communication performance has become more important than ever.
Why M12 Connectors Dominate Industrial Networking
PROFINET
EtherCAT
Ethernet/IP
CANopen
DeviceNet
D-coded and X-coded M12 connectors are specifically designed for high-speed Industrial Ethernet applications.
Why More Manufacturers Are Choosing CONNODER
CONNODER is a professional industrial connector manufacturer dedicated to providing high-quality connectivity solutions for global customers. The company integrates product design, R&D, precision manufacturing, quality inspection, and custom engineering services.
CONNODER Product Range
M5 Connectors
M8 Connectors
M12 Circular Connectors
M16 Connectors
M23 Connectors
7/8" Connectors
Industrial Ethernet Connectors
Custom Cable Assemblies
OEM & ODM Connector Solutions
Frequently Asked Questions
Is M23 better than M12?
Not necessarily. M23 connectors are better for high-power and motion-control applications, while M12 connectors are ideal for sensors, Industrial Ethernet, and compact automation systems.
Can M12 connectors transmit power?
Yes. Modern L-coded, K-coded, S-coded, and T-coded M12 connectors are specifically designed for power transmission applications.
Which connector is better for Industrial Ethernet?
M12 connectors—particularly D-coded and X-coded versions—are the industry standard for Industrial Ethernet networks.
Does CONNODER offer custom connector solutions?
Yes. CONNODER provides OEM/ODM services, custom cable assemblies, overmolded solutions, and application-specific connector designs for industrial customers worldwide.
Conclusion
If your priority is compact design, Industrial Ethernet communication, and sensor connectivity, the M12 circular connector is often the ideal solution. If your application requires higher current capacity, servo motor connectivity, or heavy-duty industrial performance, the M23 connector is generally the better option. As a trusted industrial connector manufacturer, CONNODER offers both M12 and M23 connector solutions designed to support Industry 4.0, automation, robotics, and smart manufacturing worldwide.
What is the main difference between M12 and M23 connectors?
The primary difference between M12 and M23 connectors is their size and power capacity. M12 connectors feature a 12 mm threaded coupling and are commonly used for sensors, actuators, and Industrial Ethernet communication. M23 connectors use a larger 23 mm threaded coupling and are designed for servo motors, motion control systems, and high-power industrial applications that require higher current and voltage ratings.
When should I choose an M12 circular connector instead of an M23 connector?
You should choose an M12 circular connector when your application requires compact installation, reliable signal transmission, or Industrial Ethernet connectivity. M12 connectors are ideal for factory automation, machine vision systems, sensors, PLCs, and smart manufacturing equipment where space is limited and high-speed data communication is important.
Are M23 connectors better for servo motor applications?
Yes. M23 connectors are widely used in servo motor and motion control applications because they can handle higher currents, support more contact configurations, and provide stronger mechanical locking. Their robust design makes them suitable for robotics, CNC machinery, industrial drives, and other demanding automation systems.
Can M12 connectors be used for power transmission?
Yes. Modern M12 connectors are available in power-specific coding types such as L-coded, K-coded, S-coded, and T-coded versions. These connectors can transmit both power and signals, making them suitable for decentralized automation systems, industrial equipment, and smart factory applications that require compact power connectivity.
M12 A 5 Pin Circular Connector is a versatile and robust connector designed for industrial applications.
M12 A 5 Pin Circular Connector is a metric circular connector used in industrial automation and other harsh environments.

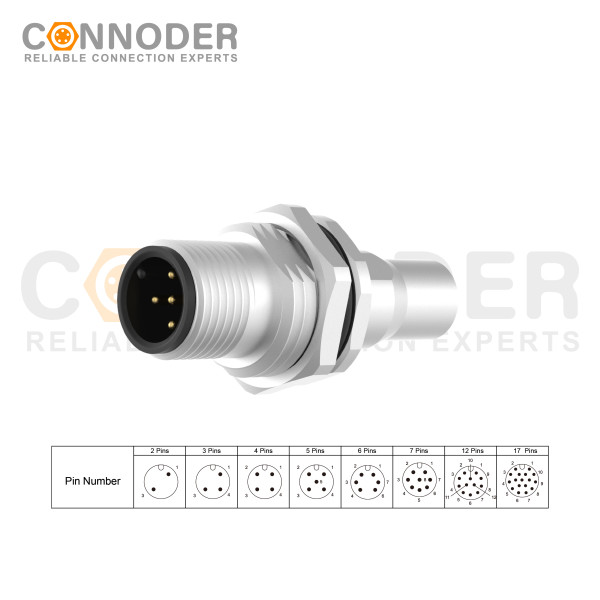

Wholesale M12 A Circular Connector | Male Panel Mount Solder Square Flange for Industrial Connectors
