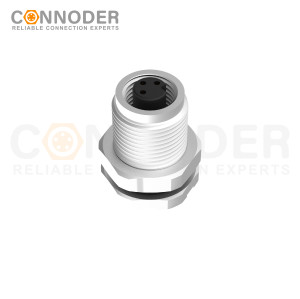

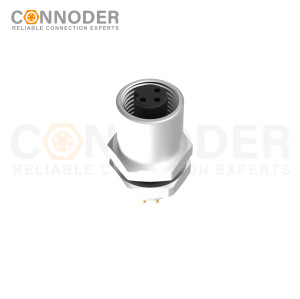

M5 3 Pin Female Circular Connector-Panel Mount,Solder Connection, Rear Fastened
- Model
- MC05NF-03F2LSLNS1101
Item specifics
- Type
- M5Circular Connector
- Contact Connection Type
- Female Connector
- Number OF Positions
- 3 Pin、4 Pin
- Coding
- A
- Termination
- Solder type
- Mounting Type
- Rear Fastened
- Shielded Option
- Unshielded
- Approval
- UL
- Pollution
- III
- Flame Retardant
- IEC 61076-2-105
Review
Description
M5 Circular Connector characteristic
Description
- Compact Design: M5 connectors are known for their small form factor (approximately 5mm OD), making them ideal for space-constrained application scenarios. The miniaturized design helps save valuable space while maintaining good electrical performance.
- Rugged: Provide excellent mechanical strength and durability. They are typically equipped with metal housings and can achieve IP67 levels of protection for use in harsh environments, including resistance to dust ingress and short-term water submersion.
- Easy to install: M5 connectors offer a variety of mounting options, including front panel mounting and rear panel mounting options.
- Cable assemblies: In addition to individual connectors, pre-assembled M5 cable assemblies are available, which can be customized in length and configuration to meet specific customer needs.
- Wide range of application scenarios: M5 connectors are used in a wide range of industries, including but not limited to industrial automation, robotics, automotive manufacturing, and medical devices.
M5 Circular Connector Specification
Shell Material | Brass Nickel Plated/Zinc Alloy Nickel Plated/PA+GF | |
Sealing Material | Epoxy Resin/Rubber | |
Contact Material | Phosphor Copper Gold Plated/Brass Gold Plated | |
Insulator Material | PA+PA+GF/TPU | |
Molding Material | TPU/PVC | |
Contact Resistance | ≤5mΩ | |
Durability | ≥ 500 Cycles | |
Insulation Resistance | 100 MΩ | |
Applicable Temperature | -40℃ Tо +80℃ | |
Waterproof Grade | IP67/IP68 | |
M5 Circular Connector Size diagram
M5 Circular Connector Electrical parameter:
Product model | Pins | Rated current | Rated voltage | Wire Gauge/Size | |||
A/C | D/C | AWG | mm² | ||||
MC05NF-03F2LSLNS1101 | 3 | 1A | 60V | 60V | 26 | 0.14 | |
MC05NF-04F2LSLNS1101 | 4 | 1A | 60V | 60V | 26 | 0.14 | |
M5 Circular Connector Coding Parameter:
| Pins | 3 | 4 | Pins | 3 | 4 |
| Male |  |
 |
Female |  |
 |
Note: If you need more parameter pictures or can not see clearly, please contact our customer service staff
M5 Circular Connector Wire Definition:
| Pins | 3 Pin Core Color | Pins | 4 Pin Core Color | ||
| 1 | BN |  |
1 | BN | |
| 2 | - |  |
2 | WH |  |
| 3 | BU |  |
3 | BU | |
| 4 | BK |  |
4 | BK | |
Remark: Wiring definition according to conventional standards. if according to the agreement or other please contact our sales.
M5 Circular Connector Application:
Industrial Automation
Food Packaging
Warehousing Logistics
Automated Production
