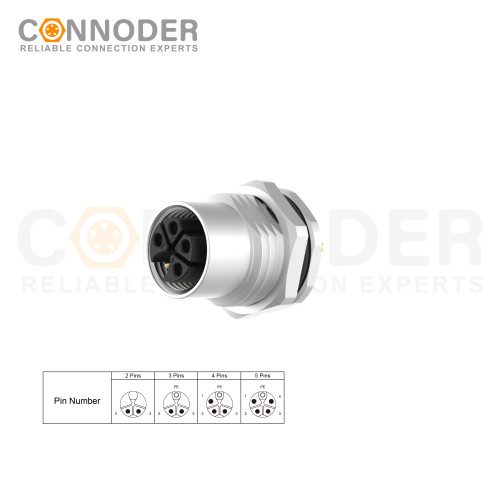

M12 K Coded Female 4+PE Circular Connector Wholesale | Panel Mount, Solder Connection, M16x1.5, Front Fastened - Custom OEM & ODM Solutions for Industrial Cable Distributors
- Model
- MC12KF-05R2LDLNS301
Item specifics
- Type
- M12 Circular Connector
- Contact Connection Type
- Female Connector
- Number OF Positions
- 2 Pin/2 Pin+PE/3 Pin+PE/4 Pin+PE
- Coding
- K
- Termination
- Solder
- Mounting Type
- Front Fastened
- Shielded Option
- Unshielded
- Approval
- UL
- Pollution
- III
- Flame Retardant
- IEC61076-2-111
Review
Description
M12 K code circular connectors characteristic
Description
- Standards: M12 K Coded Female 4+PE Circular Connector follow specific standards, which allow them to provide higher current carrying capacity. Coded connectors can support voltages up to 800VAC/DC and currents up to 16A per pole for applications requiring high power inputs.
- High-performance materials and design: Manufactured with high-quality materials, including gold-plated contacts and corrosion resistant housings. It not only improves the electrical conductivity, but also extends the service life of the connector and enhances its durability in harsh environments.
- Protection level: IP67 level of protection, can effectively prevent dust from entering and resist underwater immersion in a short time.
- Application scenario: Due to its powerful power transmission capability and rugged design,M12 K Coded Female 4+PE Circular Connector are widely used in servo drives, robotics, and other fields requiring high power input. Ideal for replacing traditional power interfaces, especially when space is limited.
- Installation Flexibility: A variety of shape design options are available, including straight and angular shapes, to suit different installation needs. The most suitable product can be selected according to the specific application scenario, thus simplifying the installation process and improving the overall efficiency of the system.
M12 K Coded Female 4+PE Circular Connector Specification
Shell Material | Brass Nickel Plated/Zinc Alloy Nickel Plated/PA+GF | |
Sealing Material | Epoxy Resin/Rubber | |
Contact Material | Phosphor Copper Gold Plated/Brass Gold Plated | |
Insulator Material | PA+PA+GF/TPU | |
Molding Material | TPU/PVC | |
Contact Resistance | ≤5mΩ | |
Durability | ≥ 500 Cycles | |
Insulation Resistance | 100 MΩ | |
Applicable Temperature | -40℃ Tо +80℃ | |
Waterproof Grade | IP67/IP68 | |
M12 K Coded Female 4+PE Circular Connector Size diagram
M12 K Coded Female 4+PE Circular Connector Electrical parameter:
Product model | Pins | Rated current | Rated voltage | Wire Gauge/Size | |||
A/C | D/C | AWG | mm² | ||||
MC12KF-02R2LDLNS301 | 2 | 16A | 800V | 800V | 16 | 2.5 | |
MC12KF-03R2LDLNS301 | 2+PE | 16A | 800V | 800V | 16 | 2.5 | |
MC12KF-04R2LDLNS301 | 3+PE | 16A | 800V | 800V | 16 | 2.5 | |
MC12KF-05R2LDLNS301 | 4+PE | 16A | 800V | 800V | 16 | 2.5 | |
M12 K Coded Female 4+PE Circular Connector Coding Parameter:
| Code Type | Pins | Male | Female |
| S Code | 2 |  |
 |
| 2+PE |  |
 |
|
| 3+PE |  |
 |
|
| T Code | 2 |  |
 |
| 2+PE |  |
 |
|
| 3+PE |  |
 |
|
| K Code | 2 |  |
 |
| 2+PE |  |
 |
|
| 3+PE |  |
 |
|
| 4+PE |  |
 |
|
| L Code | 2 |  |
 |
| 2+FE |  |
 |
|
| 3 |  |
 |
|
| 3+FE |  |
 |
|
| 4 |  |
 |
|
| 4+FE |  |
 |
|
| M Code | 2 |  |
 |
| 2+PE |  |
 |
|
| 3+PE |  |
 |
|
| 4+PE |  |
 |
|
| 5+PE |  |
 |
Note: If you need more parameter pictures or can not see clearly, please contact our customer service staff
M12 K Coded Female 4+PE Circular Connector Wire Definition:
| Pins | 2+PE S Core Color | Pins | 4+PE S Core Color | Pins | 4Pin T Core Color | |||
| 1 | BK1 |  |
1 | BK1 | |
1 | BN |  |
| 2 | BK2 | |
2 | BK2 | |
2 | WH |  |
| PE | GNYE |  |
3 | BK3 | |
3 | BU |  |
| PE | GNYE | |
4 | BK | |
|||
| - | ||||||||
| Pins | 4/4+PE L Core Color | Pins | 4+PE K Core Color | Pins | 5+PE M Core Color | |||
| 1 | BN | |
1 | BK1 | |
1 | BK1 | |
| 2 | WH | |
2 | BK2 | |
2 | BK2 | |
| 3 | BU | |
3 | BK3 | |
3 | BK3 | |
| 4 | BK | |
4 | BK4 | |
4 | BK4 | |
| PE | GY |  |
PE | GNYE | |
5 | BK5 | |
| PE | GNYE | |
||||||
Remark: Wiring definition according to conventional standards. if according to the agreement or other please contact our sales.
M12 K Coded Female 4+PE Circular Connector PCB Pins Arrangement:
| Pins | 2T | 3S | 3T | 4S |
| Male |  |
 |
 |
 |
| 4T | 3K/3L | 4K/4L | 5K/5L | |
 |
 |
 |
 |
|
| Pins | 2T | 3S | 3T | 4S |
| Female | |
|
 |
 |
| 4T | 3K/3L | 4K/4L | 5K/5L | |
 |
 |
 |
 |
M12 K Coded Female 4+PE Circular Connector Application:
Industrial Automation
Food Packaging
Warehousing Logistics
Automated Production
