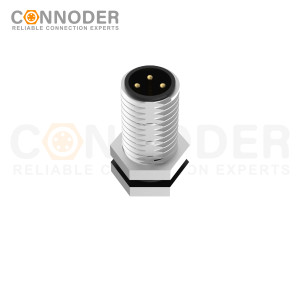

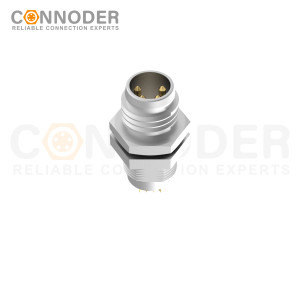

M8 Male Circular Connector-Panel Mount,Solder Connection,A code,M8*0.5, Rear Fastened
- Model
- MC08AM-04F2LSLNS1301
Item specifics
- Type
- M8 Circular Connector
- Contact Connection Type
- Male Connector
- Number OF Positions
- 3 Pin（3/4/6/8Pin Optional）
- Coding
- A
- Termination
- Solder
- Mounting Type
- Rear Fastened
- Shielded Option
- Unshielded
- Approval
- UL
- Pollution
- III
- Flame Retardant
- IEC61076-2-111
Review
Description
M8 Male Circular Connector characteristic
Description
- Pin count configurations: The M8A coded circular connector is available in 3, 4, 6, and 8 pin configurations, ideal for signal transmission and power distribution tasks. The choice of different needle counts allows users to customize the solution according to their specific needs.
- Polarization design: To ensure proper pairing and prevent misinsertion, the A-code connector has A unique keyway design. It is essential to avoid errors in high density cabling environments, thus ensuring the safety and reliability of the connection.
- Protection level: Under normal circumstances, the M8A code connector meets the IP67 standard, can effectively prevent dust, and can resist underwater immersion for a short time.
- Material Quality: M8A coded connectors Connectors are manufactured with high-quality materials such as nickel-plated brass housings and gold-plated copper contacts. It not only enhances mechanical strength and corrosion resistance, but also improves electrical conductivity, ensuring long-term stability and reliability.
- Installation Flexibility: The M8A coded circular connector supports a variety of mounting methods, including panel mounting (front or rear locking), direct cable connection, and more. Their flexibility makes them easy to integrate into different system designs to meet a variety of application requirements.
M8 Male Circular Connector Specification
Shell Material | Brass Nickel Plated/Zinc Alloy Nickel Plated/PA+GF | |
Sealing Material | Epoxy Resin/Rubber | |
Contact Material | Phosphor Copper Gold Plated/Brass Gold Plated | |
Insulator Material | PA+PA+GF/TPU | |
Molding Material | TPU/PVC | |
Contact Resistance | ≤5mΩ | |
Durability | ≥ 500 Cycles | |
Insulation Resistance | 100 MΩ | |
Applicable Temperature | -40℃ Tо +80℃ | |
Waterproof Grade | IP67/IP68(locked state) | |
M8 Male Circular Connector Size diagram
M8 Male Circular Connector Electrical parameter:
Product model | Pins | Rated current | Rated voltage | Wire Gauge/Size | |||
A/C | D/C | AWG | mm² | ||||
MC08AM-03F2LSLNS1301 | 3 | 3A | 60V | 60V | 24 | 0.25 | |
MC08AM-04F2LSLNS1301 | 4 | 3A | 60V | 60V | 24 | 0.25 | |
MC08AM-06F2LSLNS1301 | 6 | 1.5A | 30V | 30V | 26 | 0.14 | |
MC08AM-08F2LSLNS1301 | 8 | 1.5A | 30V | 30V | 26 | 0.14 | |
M8 Male Circular Connector Coding Parameter:
| Pins | 3A | 4A | 6A |
| Male |  |
 |
 |
| 8A | 5B | 4D | |
 |
 |
 |
|
| Pins | 3A | 4A | 6A |
| Female |  |
 |
 |
| 8A | 5B | 4D | |
 |
 |
 |
Note: If you need more parameter pictures or can not see clearly, please contact our customer service staff
M8 Male Circular Connector Wire Definition:
| Pins | 3 Pin Core Color | Pins | 4 Pin A Core Color | Pins | 4 Pin D Core Color | |||
| 1 | BN |  |
1 | BN | |
1 | YE |  |
| 2 | - |  |
2 | WH |  |
2 | WH | |
| 3 | BU |  |
3 | BU | |
3 | OG |  |
| 4 | BK |  |
4 | BK | |
4 | BU | |
| - | ||||||||
| Pins | 5 Pin Core Color | Pins | 6 Pin Core Color | Pins | 8 Pin Core Color | |||
| 1 | BN | |
1 | BN | |
1 | WH | |
| 2 | WH | |
2 | WH | |
2 | BN | |
| 3 | BU | |
3 | BU | |
3 | GN |  |
| 4 | BK | |
4 | BK | |
4 | YE | |
| 5 | GY |  |
5 | GY | |
5 | GY | |
| 6 | PK |  |
6 | PK | |
|||
| 7 | BU | |
||||||
| 8 | RD |  |
||||||
Remark: Wiring definition according to conventional standards. if according to the agreement or other please contact our sales.
M12 Circular Connector Application:
Industrial Automation
Food Packaging
Warehousing Logistics
Automated Production
