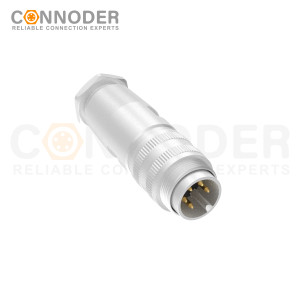

M16 Right Angled Metal Assembled Connector Shield 2 3 4 5 6 8 12 14 16 19 24 Pin Aviation Plug Connector
- Model
- MC16NM-05U4LSANR401
Item specifics
- Type
- M16 Circular Connector
- Contact Connection Type
- Male Connector
- Number OF Positions
- 2/3/4/5/6/8/12/14/16/19/24 Pin
- Coding
- General
- Termination
- Solder
- Mounting Type
- Metal Assembled
- Shielded Option
- Shielded
- Approval
- UL
- Pollution
- III
- Flame Retardant
- IEC61076-2-111
Review
Description
M16 Right Angled Connector characteristic
Description
- M16 Right Angled Connector ideal for demanding industrial applications such as industrial automation and aerospace, marine, and telecom systems.
- M16 Right Angled Connector are available in quick-lock wiring assembly types with IP67 protection and a vibration-resistant screw design
- Connoder M16 Right Angled Connector series with rugged metal housing is the ideal solution to ensure uncompromised power and signal connections in harsh environments and industrial applications.
- Connoder M16 Right Angled Connector are manufactured according to the AISG standard (AISG C 485), which offers 2 to 24 contacts with dip soldering, crimp, screw clamp, solder and stranded wire, and is also available with moulded cable. Some versions are shieldable, and users can expect more than 500 mating cycles.
M16 Right Angled Connector Specification
Shell Material | Brass Nickel Plated/Zinc Alloy Nickel Plated/PA+GF | |
Sealing Material | Epoxy Resin/Rubber | |
Contact Material | Phosphor Copper Gold Plated/Brass Gold Plated | |
Insulator Material | PA+PA+GF/TPU | |
Molding Material | TPU/PVC | |
Contact Resistance | ≤5mΩ | |
Durability | ≥ 500 Cycles | |
Insulation Resistance | 100 MΩ | |
Applicable Temperature | -40℃ Tо +80℃ | |
Waterproof Grade | IP67/IP68 | |
M16 Right Angled Connector Size diagram
M16 Right Angled Connector Electrical parameter:
Product model | Pins | Rated current | Rated voltage | Wire Gauge/Size | |||
A/C | D/C | AWG | mm² | ||||
MC16NM-02U4LSANR401 | 2 | 7A | 250V | 32V | 20 | 0.75 | |
MC16NM-03U4LSANR401 | 3 | 7A | 250V | 32V | 20 | 0.75 | |
MC16NM-04U4LSANR401 | 4 | 7A | 250V | 32V | 20 | 0.75 | |
MC16NM-05U4LSANR401 | 5 | 7A | 250V | 32V | 20 | 0.75 | |
MC16NM-06U4LSANR401 | 6 | 5A | 250V | 32V | 20 | 0.75 | |
MC16NM-07U4LSANR401 | 7 | 5A | 125V | 32V | 20 | 0.75 | |
MC16NM-08U4LSANR401 | 8 | 5A | 60V | 32V | 20 | 0.75 | |
MC16NM-12U4LSANR401 | 12 | 3A | 60V | 32V | 24 | 0.25 | |
MC16NM-14U4LSANR401 | 14 | 3A | 60V | 32V | 24 | 0.25 | |
MC16NM-16U4LSANR401 | 16 | 3A | 60V | 32V | 24 | 0.25 | |
MC16NM-19U4LSANR401 | 19 | 1A | 60V | 32V | 24 | 0.25 | |
MC16NM-24U4LSANR401 | 24 | 1A | 60V | 32V | 24 | 0.25 | |
M16 Right Angled Connector Coding Parameter:
| Pins | 2 | 3 | 4 | 5 | Pins | 5A |
| Male |  |
 |
 |
 |
Male |  |
| 6 | 7 | 8 | 12 | 7A | ||
 |
 |
 |
 |
 |
||
| 14 | 16 | 19 | 24 | 14A | ||
 |
 |
 |
 |
 |
||
| Pins | 2 | 3 | 4 | 5 | Pins | 5A |
| Female |  |
 |
 |
 |
Female |  |
| 6 | 7 | 8 | 12 | 7A | ||
 |
 |
 |
 |
 |
||
| 14 | 16 | 19 | 24 | 14A | ||
 |
 |
 |
 |
 |
||
Note: If you need more parameter pictures or can not see clearly, please contact our customer service staff
M16 Right Angled Connector Downloads:
M16 Right Angled Connector Application:
Industrial Automation
Food Packaging
Warehousing Logistics
Automated Production
