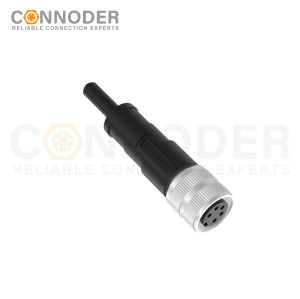

M16 Straight Cable Connector 2 24 core Plug with Wire Harne Overmolded Type Shield Waterproof Industrial Connector
- Model
- MB16NM-055LSSTXXXXX01
Item specifics
- Type
- M16 Circular Cable Connector
- Contact Connection Type
- Male Connector
- Number OF Positions
- 2/3/4/5/6/8/12/14/16/19/24 Pin
- Coding
- General
- Termination
- Solder
- Mounting Type
- Overmolded Type
- Shielded Option
- Shielded
- Approval
- UL
- Pollution
- III
- Flame Retardant
- IEC61076-2-111
Review
Description
M16 Straight Cable Connector characteristic
Description
- M16 Straight Cable Connector ideal for demanding industrial applications such as industrial automation and aerospace, marine, and telecom systems.
- M16 Straight Cable Connector are available in quick-lock wiring assembly types with IP67 protection and a vibration-resistant screw design
- Connoder M16 Straight Cable Connector series with rugged metal housing is the ideal solution to ensure uncompromised power and signal connections in harsh environments and industrial applications.
- Connoder M16 Straight Cable Connector are manufactured according to the AISG standard (AISG C 485), which offers 2 to 24 contacts with dip soldering, crimp, screw clamp, solder and stranded wire, and is also available with moulded cable. Some versions are shieldable, and users can expect more than 500 mating cycles.
M16 Straight Cable Connector Specification
Shell Material | Brass Nickel Plated/Zinc Alloy Nickel Plated/PA+GF | |
Sealing Material | Epoxy Resin/Rubber | |
Contact Material | Phosphor Copper Gold Plated/Brass Gold Plated | |
Insulator Material | PA+PA+GF/TPU | |
Molding Material | TPU/PVC | |
Contact Resistance | ≤5mΩ | |
Durability | ≥ 500 Cycles | |
Insulation Resistance | 100 MΩ | |
Applicable Temperature | -40℃ Tо +80℃ | |
Waterproof Grade | IP67/IP68 | |

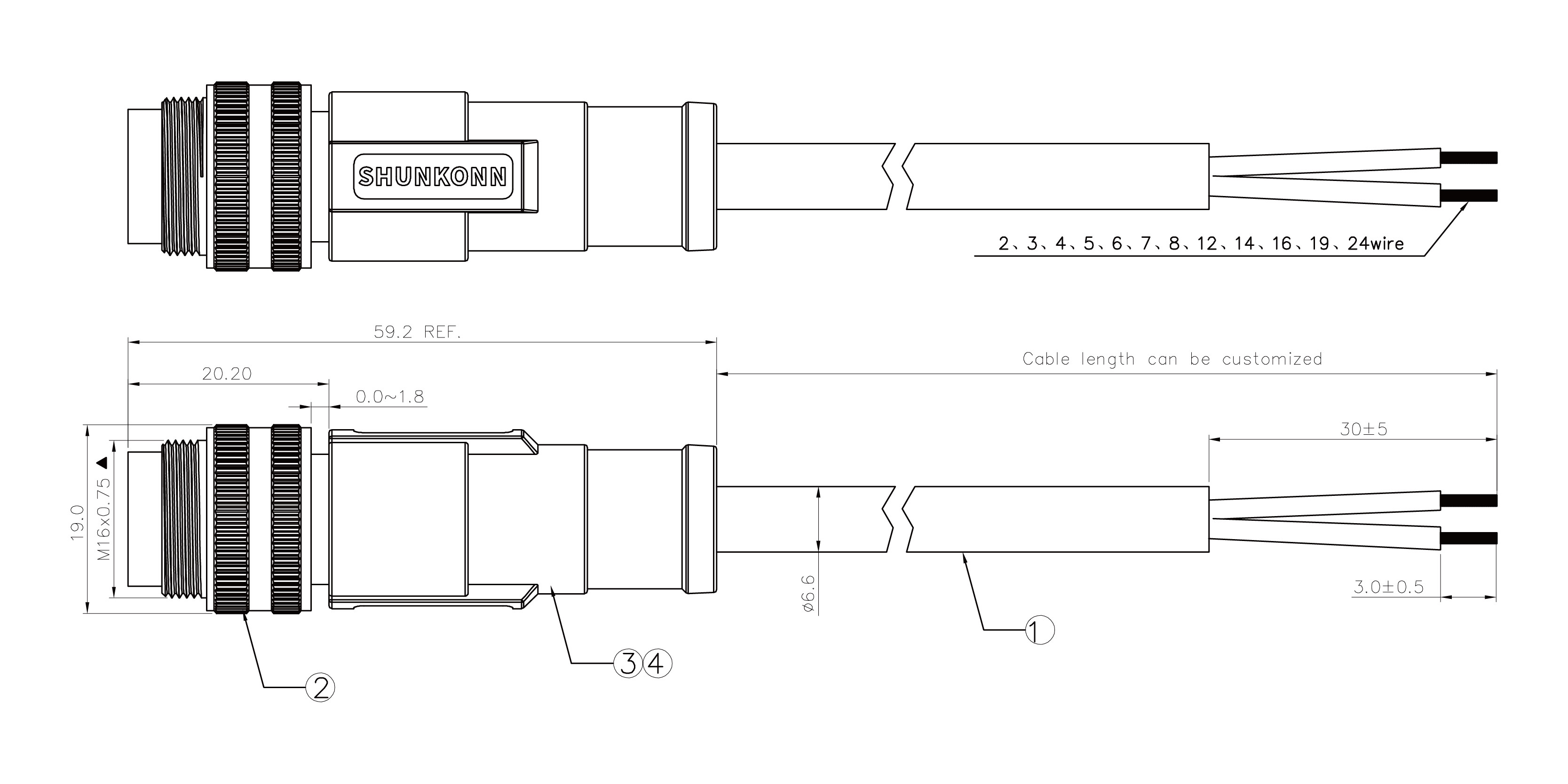

M16 Straight Cable Connector Size diagram
M16 Straight Cable Connector Electrical parameter:
Product model | Pins | Rated current | Rated voltage | Wire Gauge/Size | |||
A/C | D/C | AWG | mm² | ||||
MB16NM-025LSSTXXXXX01 | 2 | 7A | 250V | 32V | 20 | 0.75 | |
MB16NM-035LSSTXXXXX01 | 3 | 7A | 250V | 32V | 20 | 0.75 | |
MB16NM-045LSSTXXXXX01 | 4 | 7A | 250V | 32V | 20 | 0.75 | |
MB16NM-055LSSTXXXXX01 | 5 | 7A | 250V | 32V | 20 | 0.75 | |
MB16NM-065LSSTXXXXX01 | 6 | 5A | 250V | 32V | 20 | 0.75 | |
MB16NM-075LSSTXXXXX01 | 7 | 5A | 125V | 32V | 20 | 0.75 | |
MB16NM-085LSSTXXXXX01 | 8 | 5A | 60V | 32V | 20 | 0.75 | |
MB16NM-125LSSTXXXXX01 | 12 | 3A | 60V | 32V | 24 | 0.25 | |
MB16NM-145LSSTXXXXX01 | 14 | 3A | 60V | 32V | 24 | 0.25 | |
MB16NM-165LSSTXXXXX01 | 16 | 3A | 60V | 32V | 24 | 0.25 | |
MB16NM-195LSSTXXXXX01 | 19 | 1A | 60V | 32V | 24 | 0.25 | |
MB16NM-245LSSTXXXXX01 | 24 | 1A | 60V | 32V | 24 | 0.25 | |
M16 Straight Cable Connector Coding Parameter:
| Pins | 2 | 3 | 4 | 5 | Pins | 5A |
| Male |  |
 |
 |
 |
Male |  |
| 6 | 7 | 8 | 12 | 7A | ||
 |
 |
 |
 |
 |
||
| 14 | 16 | 19 | 24 | 14A | ||
 |
 |
 |
 |
 |
||
| Pins | 2 | 3 | 4 | 5 | Pins | 5A |
| Female |  |
 |
 |
 |
Female |  |
| 6 | 7 | 8 | 12 | 7A | ||
 |
 |
 |
 |
 |
||
| 14 | 16 | 19 | 24 | 14A | ||
 |
 |
 |
 |
 |
||
Note: If you need more parameter pictures or can not see clearly, please contact our customer service staff
M16 Straight Cable Connector Downloads:
M16 Straight Cable Connector Application:
Industrial Automation
Food Packaging
Warehousing Logistics
Automated Production
