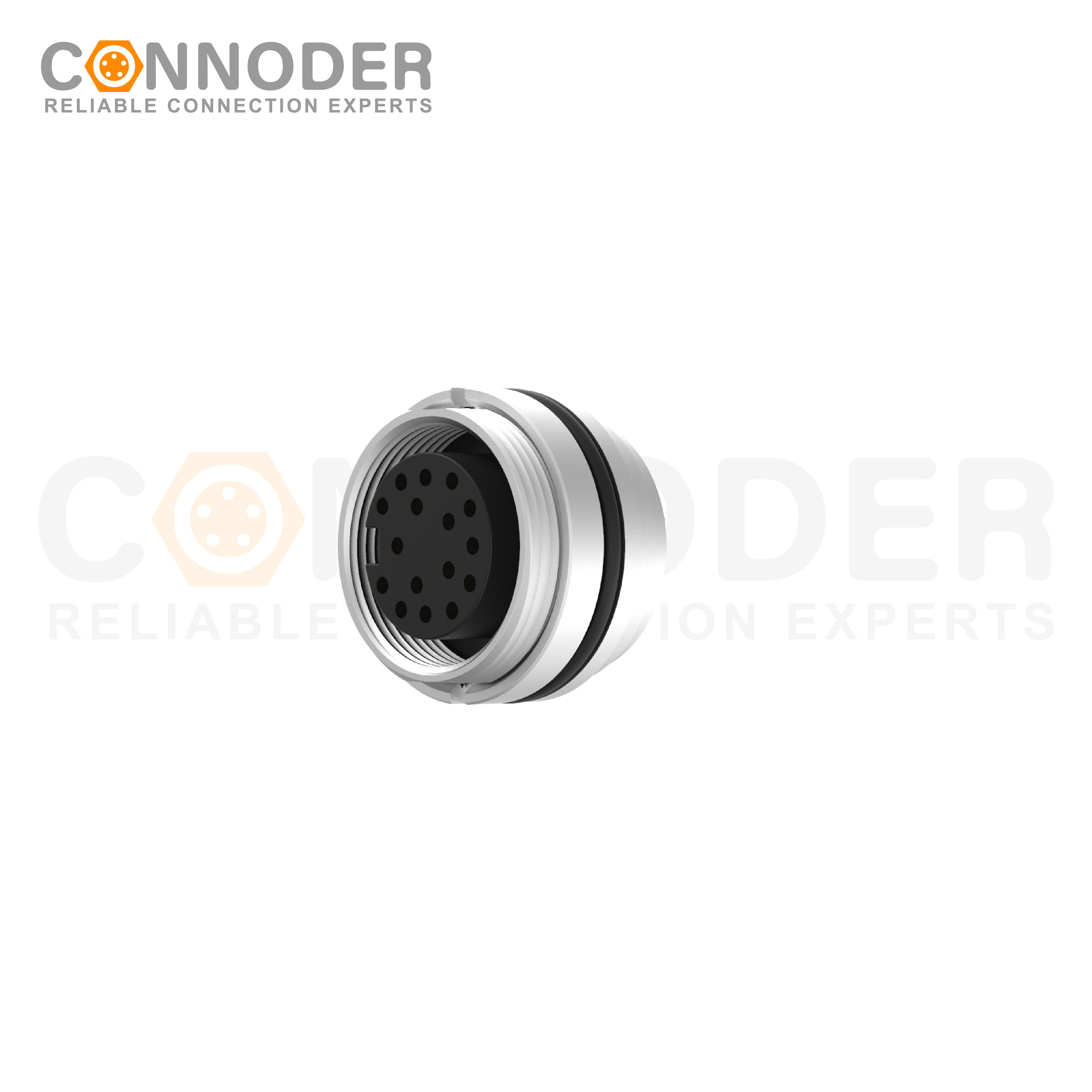

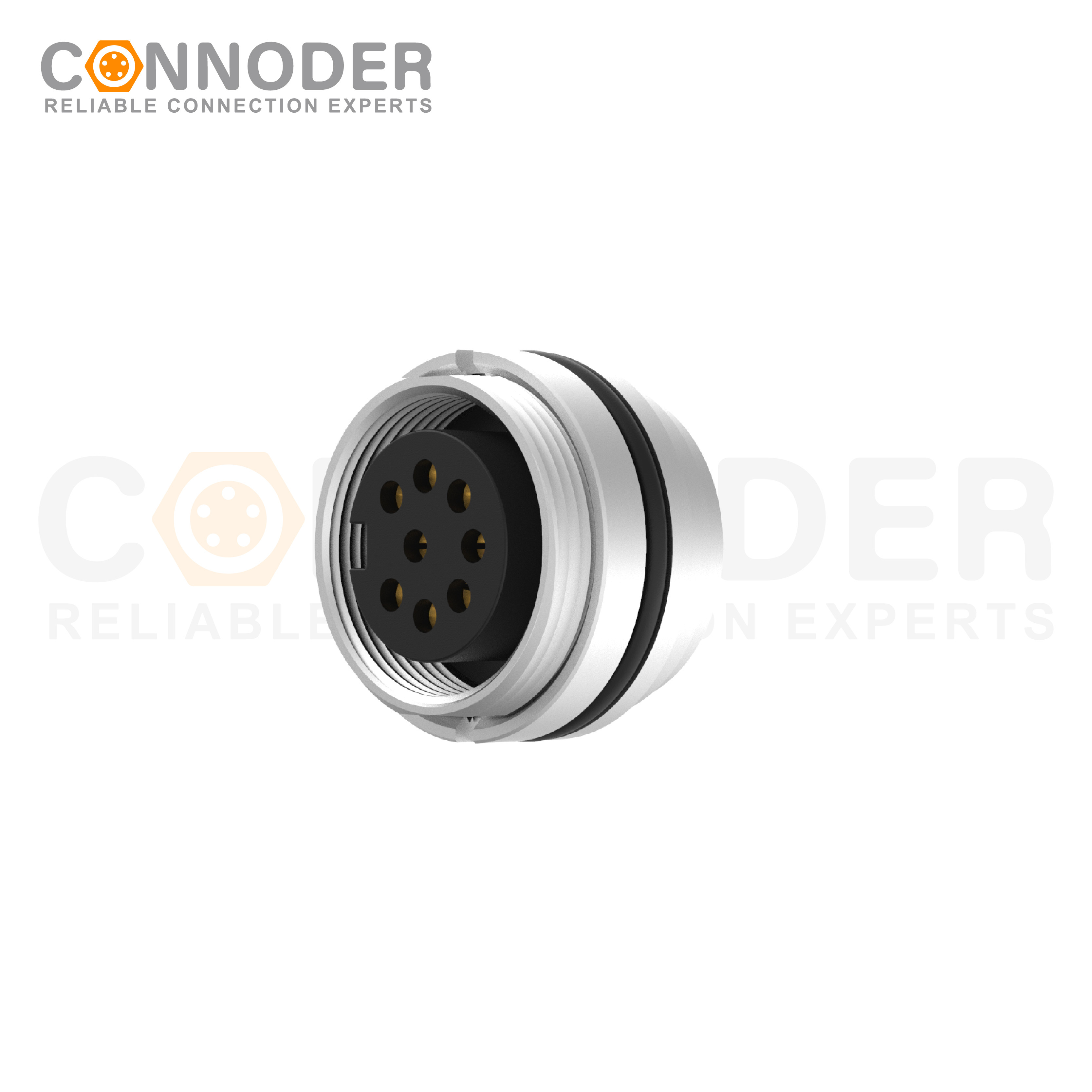

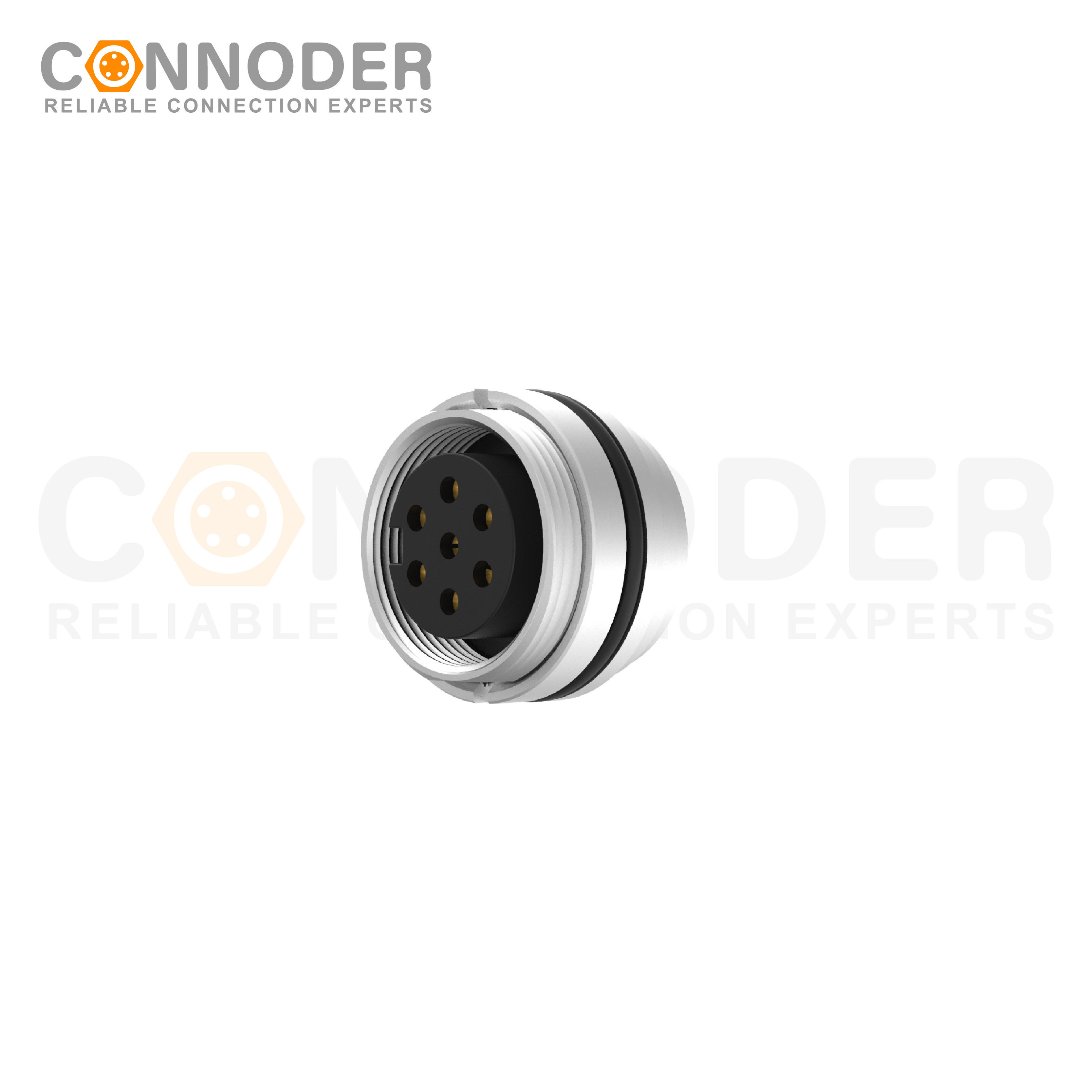

Wholesale M16 Female 2-24 Pin Circular Connector | Waterproof Straight Solder Cable Front Fastened Industrial Automation Connector(M18*0.75)
- Model
- MC16NF-XXR2LSLNS401
Item specifics
- Type
- M16 Circular Connector
- Contact Connection Type
- Female Connector
- Number OF Positions
- 2/3/4/5/6/7/8/12/14/16/19/24 Pin
- Coding
- General
- Termination
- Solder
- Mounting Type
- Front Fastened
- Shielded Option
- Unshielded
- Approval
- UL
- Pollution
- III
- Flame Retardant
- IEC61076-2-111
Review
Description
M16 Circular Connector characteristic
Description
- M16 Circular Connector assemblies are ideal for demanding industrial applications such as industrial automation and aerospace, marine, and telecom systems.
- M16 Circular Connector are available in quick-lock wiring assembly types with IP67 protection and a vibration-resistant screw design.
- M16 Circular Connector with IP67 rating, provides with 2, 3, 4, 5, 6, 7, 8, 12, 14, 16, 19, 24 contacts. Different pin matches specific applications. M16 Round Female Plug Connector series with rugged metal housing is the ideal solution to ensure uncompromised power and signal connections in harsh environments and industrial applications.
- The primary use of M16 Circular Connector is to build custom patch cords. Provide a quick disconnect for a device, terminate field devices on an I/O block, or bring multiple sensor signals into one port.
- M16 6 Pin Circular Connector support higher bandwidth while providing an IP67 rated solution for demanding applications.
M16 Circular Connector Specification
Shell Material | Brass Nickel Plated/Zinc Alloy Nickel Plated/PA+GF | |
Sealing Material | Epoxy Resin/Rubber | |
Contact Material | Phosphor Copper Gold Plated/Brass Gold Plated | |
Insulator Material | PA+PA+GF/TPU | |
Molding Material | TPU/PVC | |
Contact Resistance | ≤5mΩ | |
Durability | ≥ 500 Cycles | |
Insulation Resistance | 100 MΩ | |
Applicable Temperature | -40℃ Tо +80℃ | |
Waterproof Grade | IP67/IP68 | |

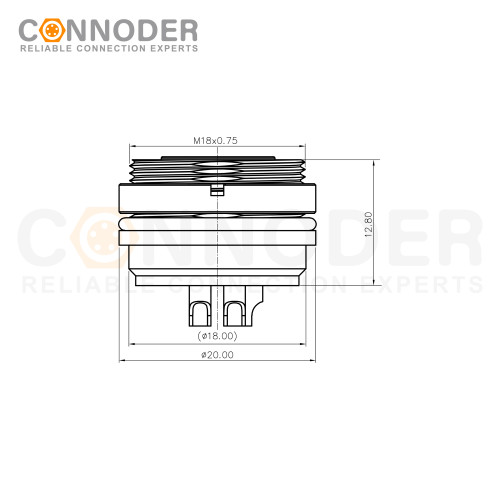

M16 Circular Connector Size diagram
M16 Circular Connector Electrical parameter:
Image | Product model | Pins | Rated current | Rated voltage | Wire Gauge/Size | |||
A/C | D/C | AWG | mm² | |||||
 | MC16NF-02R2LSLNS401 | 2 | 7A | 250V | 32V | 20 | 0.75 | |
 | MC16NF-03R2LSLNS401 | 3 | 7A | 250V | 32V | 20 | 0.75 | |
 | MC16NF-04R2LSLNS401 | 4 | 6A | 250V | 32V | 20 | 0.75 | |
 | MC16NF-05R2LSLNS401 | 5 | 6A | 250V | 32V | 20 | 0.75 | |
 | MC16NF-06R2LSLNS401 | 6 | 5A | 250V | 32V | 20 | 0.75 | |
 | MC16NF-07R2LSLNS401 | 7 | 5A | 125V | 32V | 20 | 0.75 | |
 | MC16NF-08R2LSLNS401 | 8 | 5A | 60V | 32V | 20 | 0.14 | |
 | MC16NF-12R2LSLNS401 | 12 | 3A | 60V | 32V | 24 | 0.25 | |
 | MC16NF-14R2LSLNS401 | 14 | 3A | 60V | 32V | 24 | 0.25 | |
 | MC16NF-16R2LSLNS401 | 16 | 3A | 60V | 32V | 24 | 0.25 | |
 | MC16NF-19R2LSLNS401 | 19 | 3A | 60V | 32V | 24 | 0.25 | |
 | MC16NF-24R2LSLNS401 | 24 | 1A | 60V | 32V | 26 | 0.14 | |
M16 Circular Connector Coding Parameter:
| Pins | 2 | 3 | 4 | 5 | Pins | 5A |
| Male |  |  |  |  | Male |  |
| 6 | 7 | 8 | 12 | 7A | ||
 |  |  |  |  | ||
14 | 16 | 19 | 24 | 14A | ||
 |  |  |  |  | ||
Pins | 2 | 3 | 4 | 5 | Pins | 5A |
| Female |  |  |  |  | Female |  |
6 | 7 | 8 | 12 | 7A | ||
 |  |  |  |  | ||
14 | 16 | 19 | 24 | 14A | ||
 |  |  |  |  |
Note: If you need more parameter pictures or can not see clearly, please contact our customer service staff
M16 Circular Connector Application:
Industrial Automation
Food Packaging
Warehousing Logistics
Automated Production
