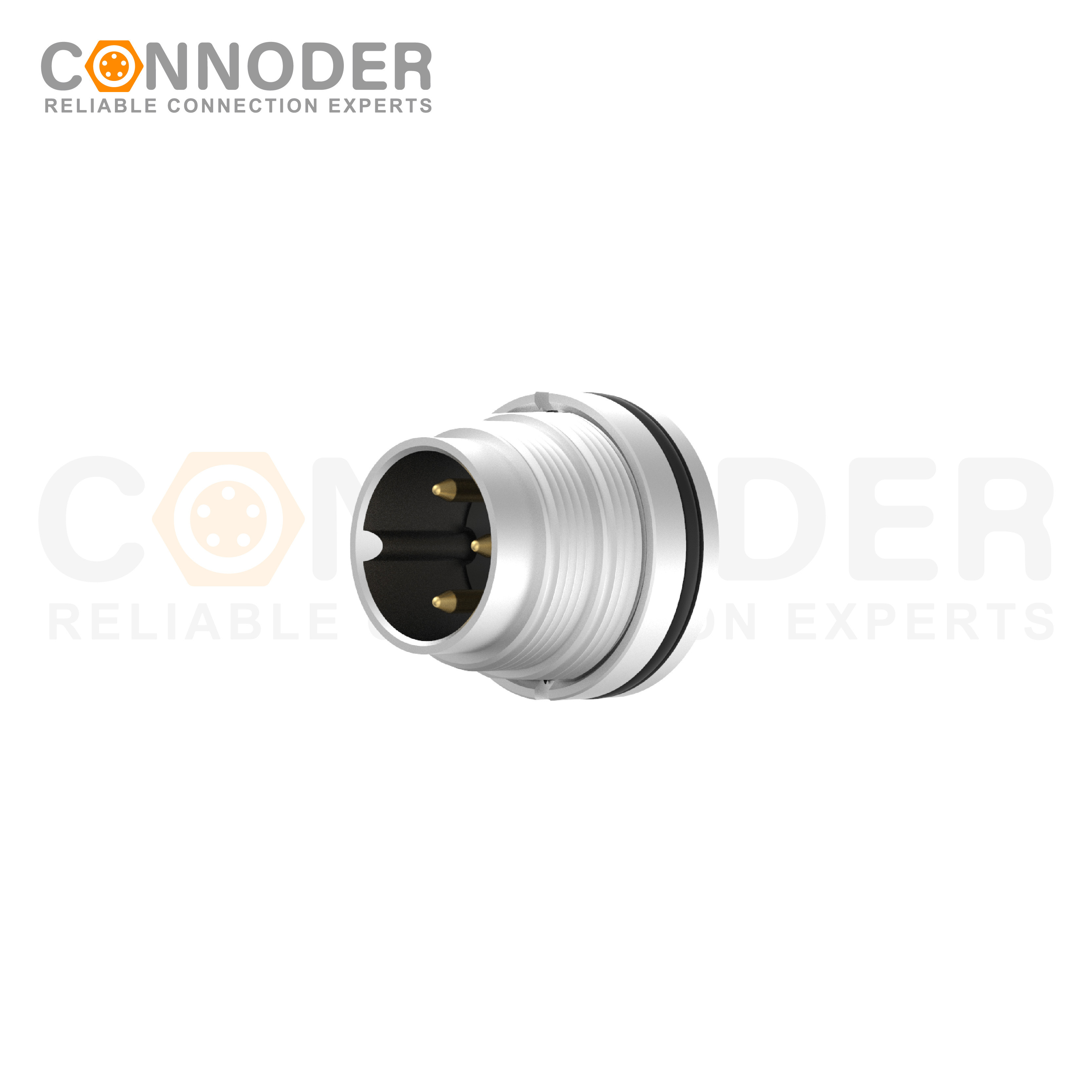

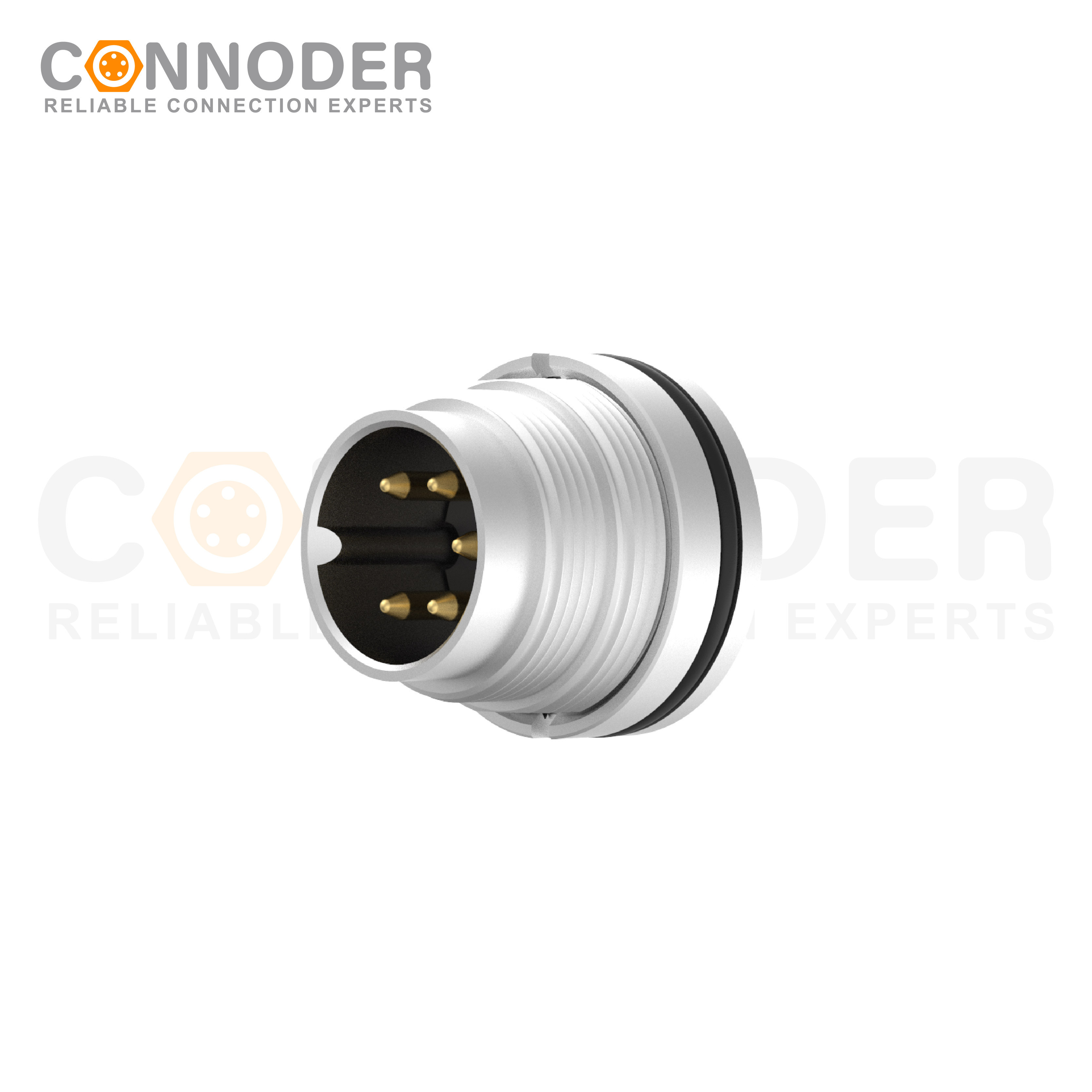

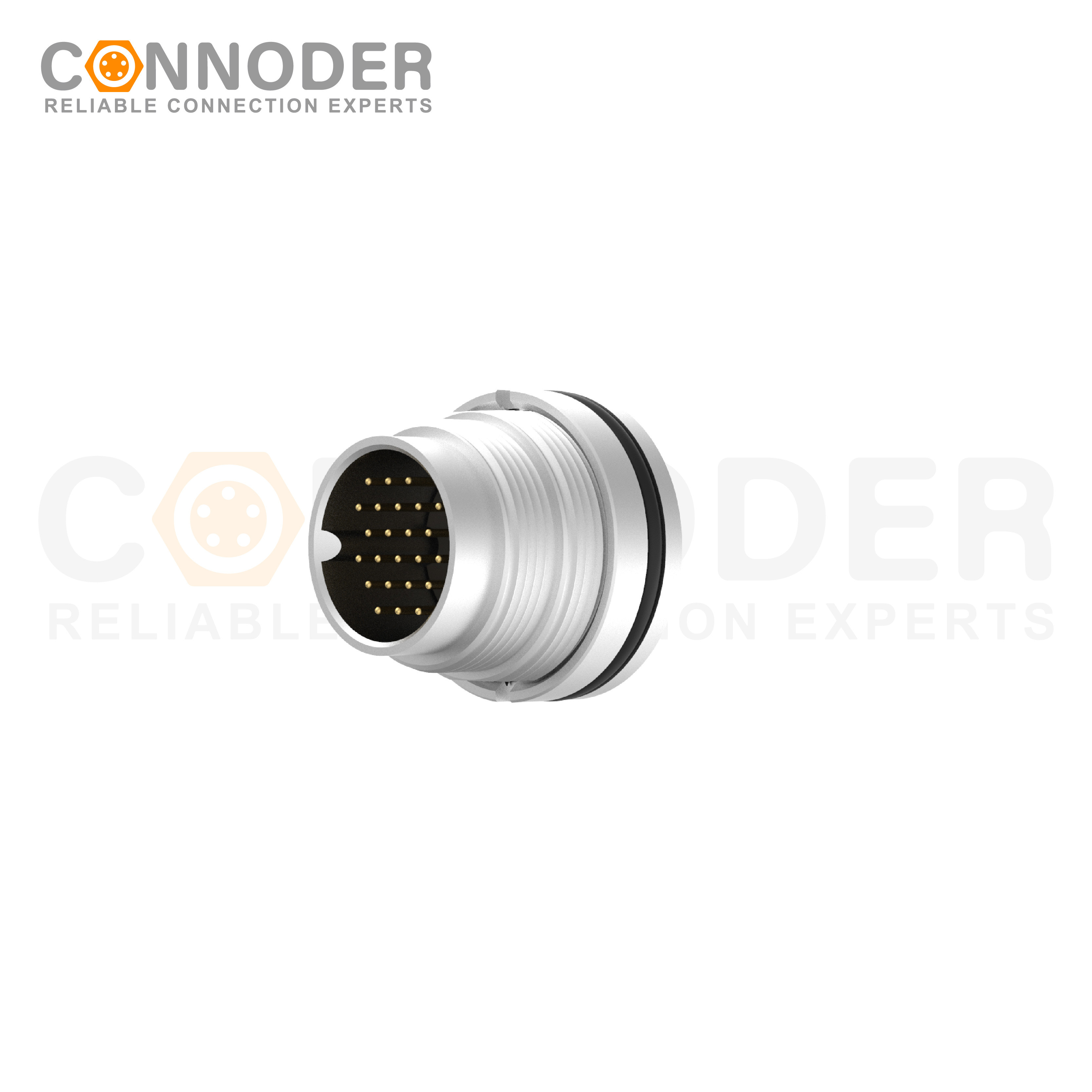

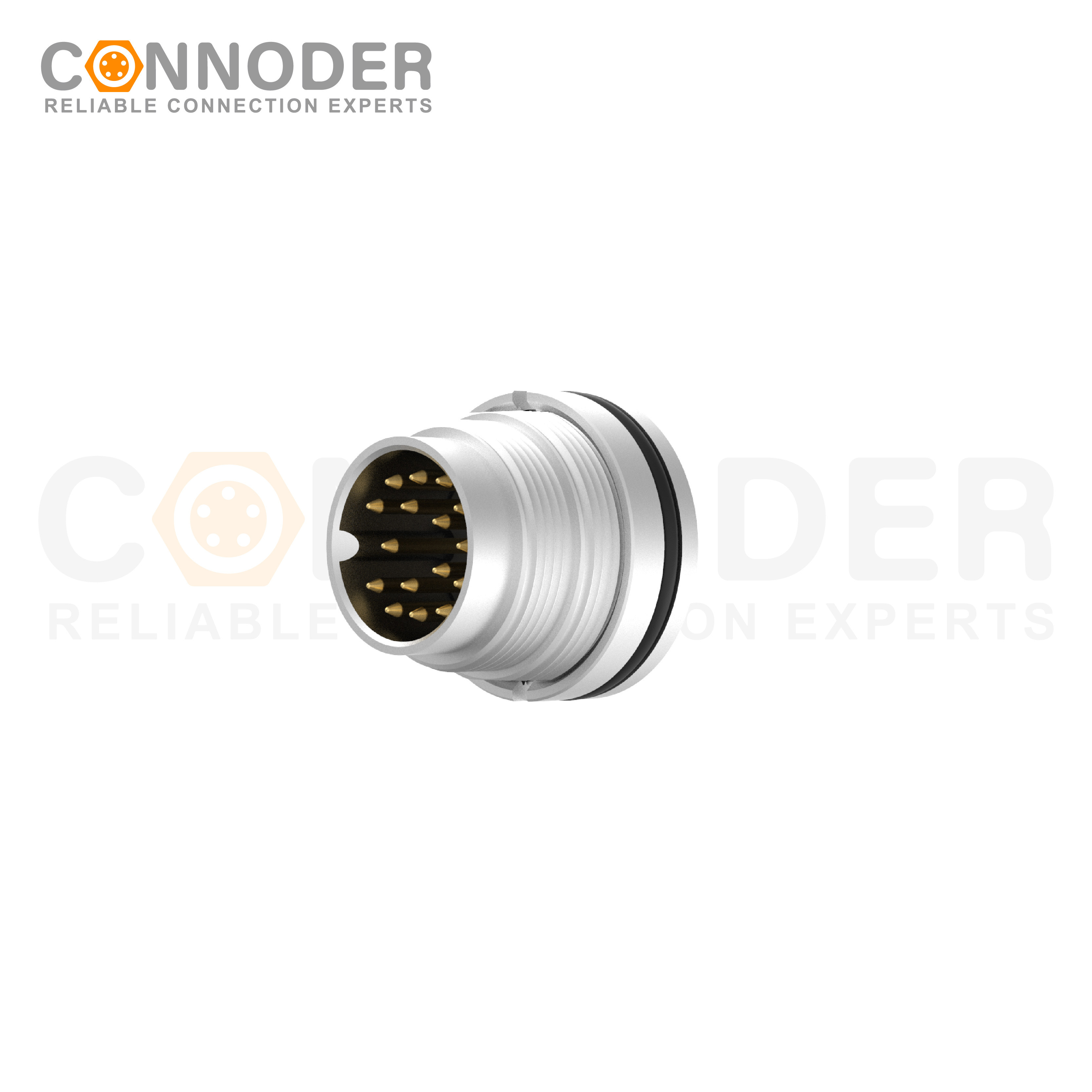

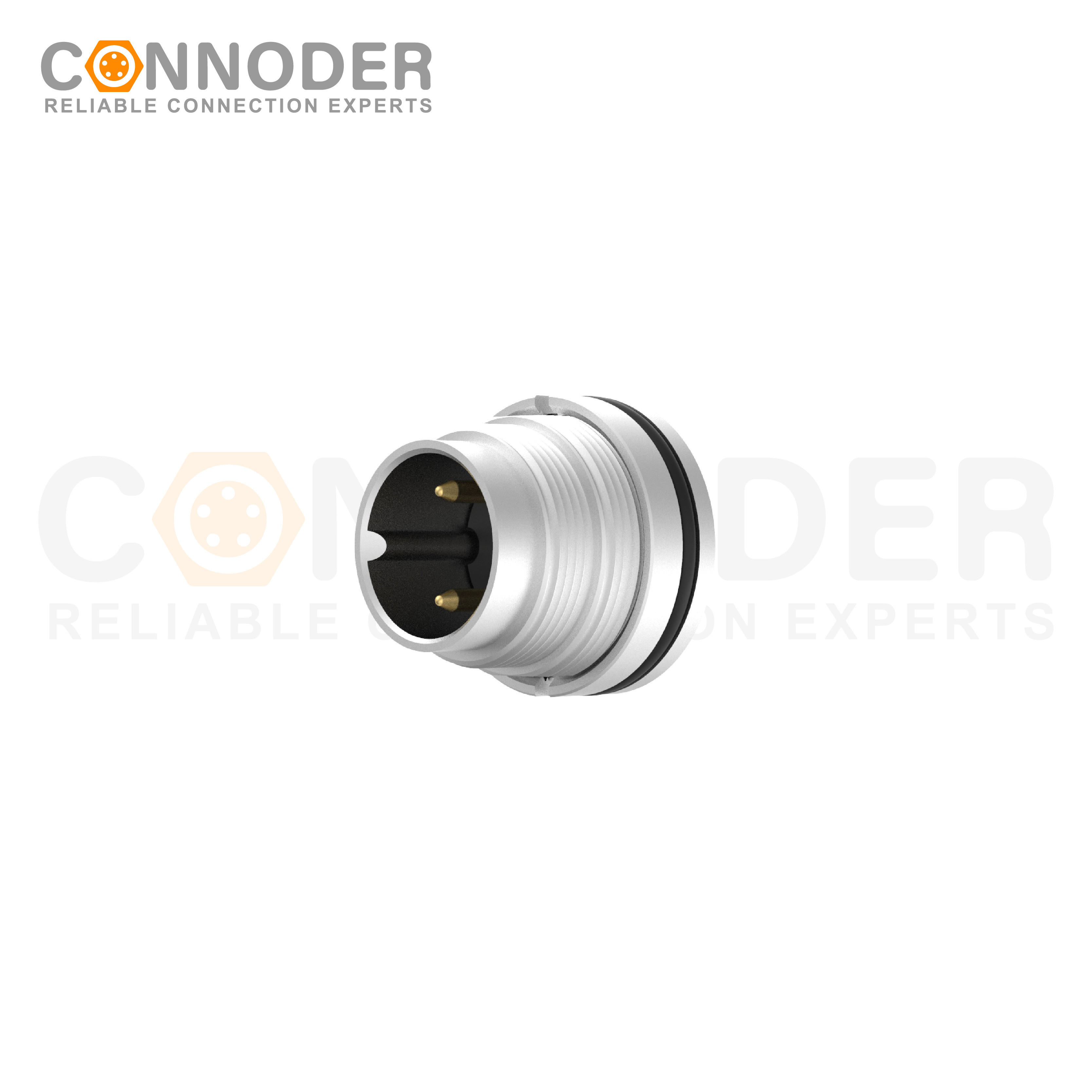

Wholesale M16 2-24 Pin Circular Connector | Rear Panel Mounted Welded Type Connector Ip67 Waterproof, Industrial Automation Signal Connector
- Model
- MC16NM-XXR2LSLNS401
Item specifics
- Type
- M16 Circular Connector
- Contact Connection Type
- Male Connector
- Number OF Positions
- 2/3/4/5/6/7/8/12/14/16/19/24 Pin
- Coding
- General
- Termination
- Solder
- Mounting Type
- Front Fastened
- Shielded Option
- Unshielded
- Approval
- UL
- Pollution
- III
- Flame Retardant
- IEC61076-2-111
Review
Description
M16 Circular Connector Connector characteristic
Description
- M16 Circular Connector ideal for demanding industrial applications such as industrial automation and aerospace, marine, and telecom systems.
- M16 Circular Connector are available in quick-lock wiring assembly types with IP67 protection and a vibration-resistant screw design
- Connoder M16 Circular Connector series with rugged metal housing is the ideal solution to ensure uncompromised power and signal connections in harsh environments and industrial applications.
- Connoder M16 Circular Connector are manufactured according to the AISG standard (AISG C 485), which offers 2 to 24 contacts with dip soldering, crimp, screw clamp, solder and stranded wire, and is also available with moulded cable. Some versions are shieldable, and users can expect more than 500 mating cycles.
M16 Circular Connector Specification
Shell Material | Brass Nickel Plated/Zinc Alloy Nickel Plated/PA+GF | |
Sealing Material | Epoxy Resin/Rubber | |
Contact Material | Phosphor Copper Gold Plated/Brass Gold Plated | |
Insulator Material | PA+PA+GF/TPU | |
Molding Material | TPU/PVC | |
Contact Resistance | ≤5mΩ | |
Durability | ≥ 500 Cycles | |
Insulation Resistance | 100 MΩ | |
Applicable Temperature | -40℃ Tо +80℃ | |
Waterproof Grade | IP67/IP68 | |

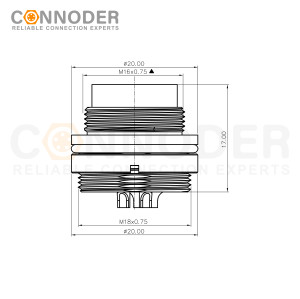

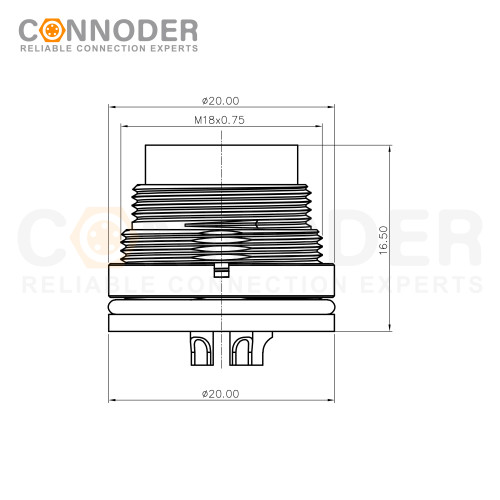

M16 Circular Connector Size diagram
M16 Circular Connector Electrical parameter:
Image | Product model | Pins | Rated current | Rated voltage | Wire Gauge/Size | |||
A/C | D/C | AWG | mm² | |||||
 | MC16NM-02R2LSLNS401 | 2 | 7A | 250V | 32V | 20 | 0.75 | |
 | MC16NM-03R2LSLNS401 | 3 | 7A | 250V | 32V | 20 | 0.75 | |
 | MC16NM-04R2LSLNS401 | 4 | 7A | 250V | 32V | 20 | 0.75 | |
 | MC16NM-05R2LSLNS401 | 5 | 7A | 250V | 32V | 20 | 0.75 | |
 | MC16NM-06R2LSLNS401 | 6 | 5A | 250V | 32V | 20 | 0.75 | |
 | MC16NM-07R2LSLNS401 | 7 | 5A | 125V | 32V | 20 | 0.75 | |
 | MC16NM-08R2LSLNS401 | 8 | 5A | 60V | 32V | 20 | 0.75 | |
 | MC16NM-12R2LSLNS401 | 12 | 3A | 60V | 32V | 24 | 0.25 | |
 | MC16NM-14R2LSLNS401 | 14 | 3A | 60V | 32V | 24 | 0.25 | |
 | MC16NM-16R2LSLNS401 | 16 | 3A | 60V | 32V | 24 | 0.25 | |
 | MC16NM-19R2LSLNS401 | 19 | 1A | 60V | 32V | 24 | 0.25 | |
 | MC16NM-24R2LSLNS401 | 24 | 1A | 60V | 32V | 24 | 0.25 | |
M16 Circular Connector Coding Parameter:
| Pins | 2 | 3 | 4 | 5 | Pins | 5A |
| Male |  |  |  |  | Male |  |
| 6 | 7 | 8 | 12 | 7A | ||
 |  |  |  |  | ||
14 | 16 | 19 | 24 | 14A | ||
 |  |  |  |  | ||
Pins | 2 | 3 | 4 | 5 | Pins | 5A |
| Female |  |  |  |  | Female |  |
6 | 7 | 8 | 12 | 7A | ||
 |  |  |  |  | ||
14 | 16 | 19 | 24 | 14A | ||
 |  |  |  |  |
Note: If You Need More Parameter Pictures Or Can Not See Clearly, Please Contact Our Customer Service Staff
M16 Circular Connector Downloads:
M16 Circular Connector Application:
Industrial Automation
Food Packaging
Warehousing Logistics
Automated Production
