Introduction
In modern industrial automation, outdoor electronics, and sensor-driven smart systems, Waterproof M12 circular connectors have become essential. Their compact size, threaded locking, and IP65/IP67/IP68 protection levels make them ideal for harsh environments. This article integrates professional insights from industry M12 products together with Connoder’s manufacturing expertise to help engineers choose reliable, high-performance waterproof connectors.
What Makes an M12 Waterproof Connector Industrial-Grade?
M12 circular connectors use a standardized 12 mm threaded coupling, providing secure, vibration-resistant electrical transmission. When equipped with waterproof design, they deliver strong dust and moisture protection.
✔ IP65 / IP67 / IP68 Protection
IP65 – Dustproof + water jets
IP67 – Temporary immersion
IP68 – Long-term immersion and harsh environmental resistance
Connoder’s M12 series adopts enhanced sealing structures, gold-plated contacts, and robust materials to maintain reliable performance under shocks, humidity, or outdoor exposure.
M12 Circular Connectors
Rugged, compact and versatile — ideal when you need mixed power & signal plus environmental protection.
Typical Industrial Applications
Sensors & actuators
Robotics and automated machinery
Outdoor LED & smart lighting systems
IoT / smart city devices
Transportation, railway & vehicle electronics
How to Select the Right Waterproof M12 Connector
1. Identify Your Application Environment
Outdoor, humid, dusty, or high-vibration conditions require higher IP ratings.
2. Determine Pin Count
Options include 3 / 4 / 5 / 8 / 12 / 17-pin, depending on power or signal complexity.
3. Choose the Correct Coding Type
A-coded – General sensors
D-coded – Industrial Ethernet
B-coded – Fieldbus systems
4. Select Assembly & Mounting Style
Overmolded cable assemblies
Field-wireable connectors
Panel-mount sockets
Straight or right-angle designs
5. Check Material & Electrical Ratings
Connoder provides options including metal shells, engineering plastics, gold-plated contacts, and corrosion-resistant components.
6. Consider Long-Term Durability
Select UV-resistant, corrosion-resistant connectors with strong seal structures for outdoor use.

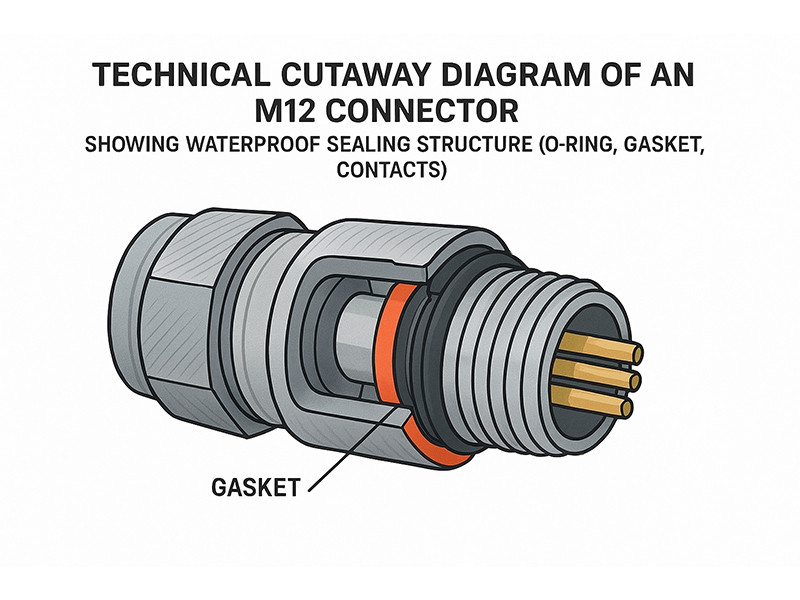

Technical section drawing of M12 connector
M12 connector technical cross-section diagram, clearly presenting the waterproof structure of the O-ring, sealing gasket and precise contacts. The high-precision design ensures stable connection and protection performance in harsh environments.
Connoder’s M12 Series — Trusted Industrial Solutions
As highlighted on our company profile page, Connoder provides professional connector R&D and manufacturing with reliable quality control and strong engineering support. Our M12 waterproof connector line offers:
Industrial-grade IP65/IP67/IP68 protection
Fully customizable pin count, cable length, and materials
Gold-plated contacts for enhanced stability
OEM/ODM engineering support for system integration
Fast lead times and consistent batch quality
Why Engineers Choose Connoder
Reliable manufacturing quality
Competitive pricing
Flexible low-MOQ customization
Comprehensive testing and QC system
Full technical support for projects
Connoder is committed to delivering not only connectors but complete, reliable connectivity support for industrial systems.
Learn More
Explore Connoder’s full M12 circular connector product series here: M12 Circular Connector – Connoder
What are the advantages of using waterproof M12 circular connectors in industrial environments?
Waterproof M12 circular connectors provide strong IP65/IP67/IP68 protection, ensuring reliable performance in wet, dusty, or high-vibration environments. Their compact size, threaded locking design, and durability make them ideal for sensors, automation equipment, outdoor devices, and industrial control systems.
How do I choose the right M12 connector for my application?
Selection depends on environment (indoor/outdoor), IP rating requirements, pin count, coding type (A, B, D, etc.), mounting style, and cable length. For harsh environments, higher IP ratings and corrosion-resistant materials are recommended. Connoder also provides OEM/ODM customization for specific needs.
What IP rating should I choose for a waterproof M12 connector?
IP65 for environments with dust and light water exposure.
IP67 for temporary submersion or outdoor equipment.
IP68 for long-term exposure to water or highly humid conditions.
Connoder’s M12 series covers all three protection levels to meet various industrial requirements.
What applications commonly use M12 waterproof connectors?
M12 connectors are widely used in industrial automation, robotics, IIoT devices, smart lighting, transportation electronics, sensors, actuators, and machine vision systems. Their reliability and waterproof structure make them suitable for demanding applications.

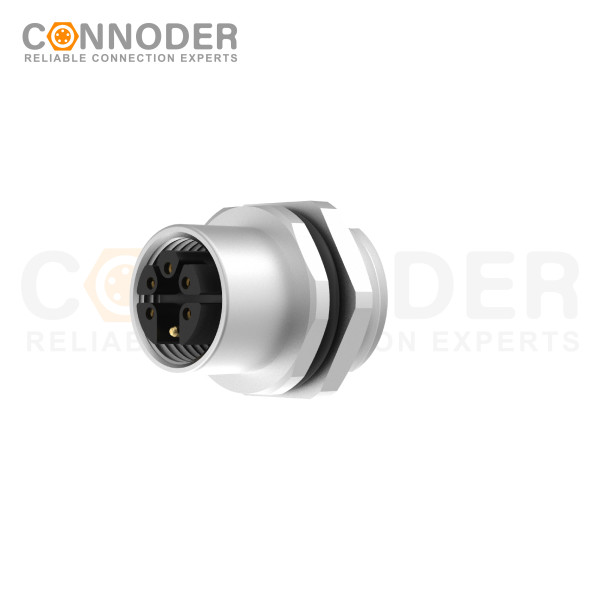

M12 M Coded 4+PE Circular Connector is a metric circular connector used in industrial automation and other harsh environments.

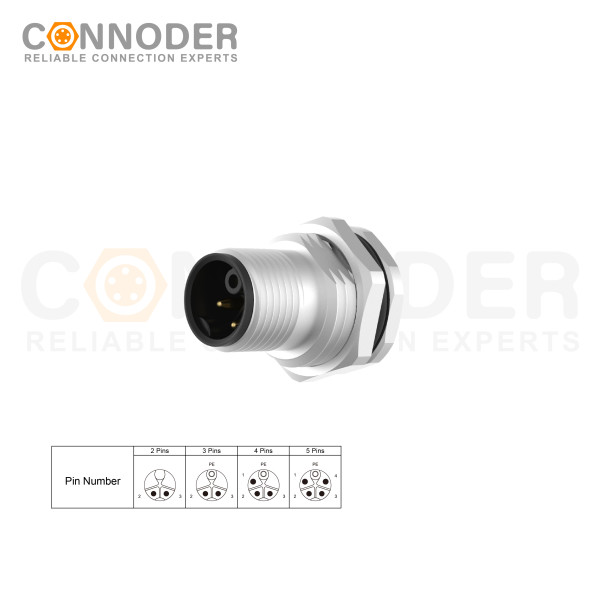

The M12K coded circular connector is specifically designed for applications requiring high power transmission
