The top ten most frequently asked questions about M12 circular connectors by customers
Introduction
Choosing the right M12 circular connector is one of the most important steps in achieving reliable industrial connectivity. Whether you’re designing an automation system, sensor network, or Ethernet communication line, the correct connector ensures optimal performance and long-term reliability. At Connoder , we’ve supported automation innovators for over a decade, manufacturing customized M12 connectors that meet stringent requirements for data, power, and harsh-environment protection.
What Is an M12 Circular Connector?
An M12 circular connector is a threaded connector with a 12 mm locking nut, widely used in industrial automation, robotics, and machine vision systems. It ensures vibration-proof connectivity for signals, data, and power.
At Connoder, our M12 series includes A-, B-, D-, X-, K- and L-coded versions designed for both low-voltage signals and high-speed Ethernet needs.s.
M12 Circular Connectors
Rugged, compact and versatile — ideal when you need mixed power & signal plus environmental protection.
2. How Do I Choose the Right Coding Type (A, B, D, X etc.)?

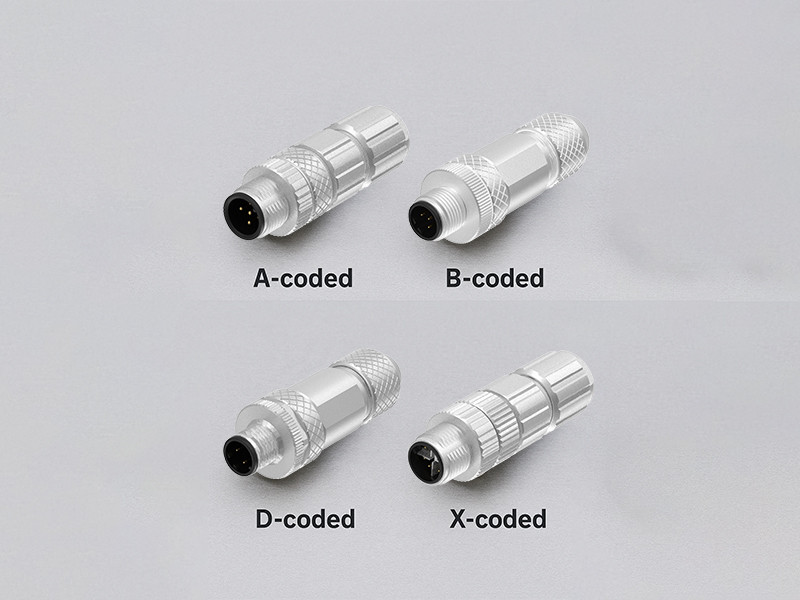

Different coding types define electrical compatibility and prevent mismating:
A-coded – Sensors, actuators, DC power (≤ 250 V)
B-coded – Profibus / DeviceNet
D-coded – Ethernet 100 Mb/s
X-coded – High-speed Ethernet 10 Gb/s
K/L-coded – Power supply up to 16 A
Connoder engineers provide guidance to match your coding to application voltage, speed, and environment—ensuring performance and safety.
3. Which Pin Configuration Should I Use?
Pin count determines available signal or power lines: 2,3, 4, 5, 8, or 12 pins.
2/4-pin: DC power, basic sensors
5-pin: signal and control
8-pin: Ethernet and mixed signals
12-pin: compact control systems
Connoder also designs hybrid M12 connectors combining signal and power in one interface.
4. Are M12 Connectors Waterproof and Dustproof?
Yes—rated IP67 or IP68, they resist dust and temporary water immersion.
All Connoder M12 connectors undergo 100 % waterproof testing and salt-spray verification to guarantee reliability in outdoor or wash-down environments.

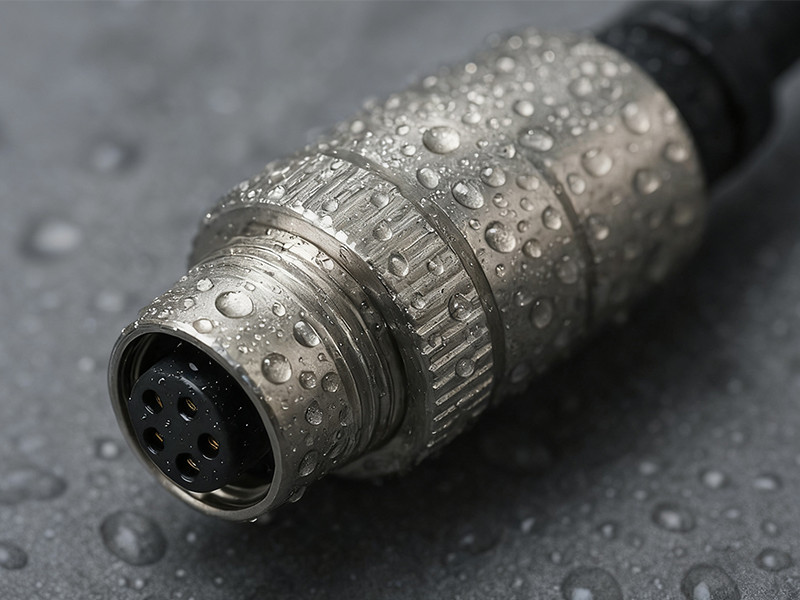

M12 Connector Waterproof Test
M12 connector waterproof testing scenario diagram, clearly presenting the details of the waterproof performance test, highlighting the advantages of the product's sealing design, and providing reliable protection for outdoor and industrial humid environment applications.
5. What Materials Are Best for My Application?
Typical materials:
Nickel-plated brass: rugged and corrosion-resistant
Stainless steel: for food / chemical industries
Reinforced plastic: lightweight and economical
Connoder’s M12 connectors use industrial-grade nickel alloys and PUR overmolding for maximum resistance to vibration, oil, and temperature extremes.
6. What Are the Mounting Options for M12 Connectors?
Cable-mount (pre-molded or field-attachable)
Panel-mount (front / rear)
PCB-mount
Connoder provides pre-assembled harnesses with custom lengths and terminations to reduce installation time and errors.
7. Can M12 Connectors Be Used for Ethernet or IO-Link Systems?
Yes.
D-coded – Ethernet / Profinet (100 Mb/s)
X-coded – 10 Gb/s Industrial Ethernet
A-coded – IO-Link and sensor applications
Connoder’s shielded M12 connectors ensure stable data transmission with minimal EMI and cross-talk.
8. How Do I Install M12 Connectors Correctly?
Follow best practices:
Apply the correct torque (avoid over-tightening)
Inspect O-rings and seals
Provide strain relief on cables
Use dielectric grease for moisture protection
Connoder offers installation guides and on-site training for OEM partners.
9. What Are Common Selection Mistakes to Avoid?
Choosing the wrong coding (A vs D vs X)
Neglecting IP rating requirements
Underestimating current or data needs
Ignoring vibration or EMI factors
Connoder’s application engineers provide free consultation to avoid these issues and optimize system design.
10. Why Choose Connoder as Your M12 Connector Supplier?
Founded in 2013, Connoder focuses on industrial automation connectivity solutions with integrated R&D, manufacturing, and global supply.
Certified ISO / CE / RoHS
Full portfolio (M8, M12, M23 connectors and custom designs)
In-house testing for IP, vibration, and signal integrity
OEM branding and worldwide support
Connoder’s Mission: Connecting industry with reliability, innovation, and precision.
M12 connector component inspection
Industrial-grade M12 connector component inspection scenario diagram, presenting the process of item-by-item verification of the component appearance and performance, strictly controlling product quality to ensure stable equipment connection and service life
Conclusion
Selecting the right M12 circular connector depends on environmental conditions, electrical requirements, and mechanical compatibility.
By understanding these ten FAQs and partnering with Connoder
, you can achieve durable, efficient, and future-proof industrial connectivity.
What are M12 circular connectors used for?
M12 circular connectors are used to connect sensors, actuators, and communication devices in industrial automation, robotics, and control systems. Their threaded locking design ensures stable, vibration-resistant connections for signal, data, and power transmission in harsh environments.
How do I select the right M12 coding type (A, B, D, X, etc.)?
Choose your coding based on application and voltage:
A-coded for sensors and DC power
B-coded for Profibus or DeviceNet
D-coded for 100 Mbps Ethernet
X-coded for 10 Gbps high-speed Ethernet
K/L-coded for power circuits
If you’re unsure, Connoder’s technical team can help you identify the best coding for your system.
Are M12 connectors waterproof?
Yes, most M12 circular connectors are rated IP67 or IP68, offering excellent protection against dust and temporary water immersion. Connoder’s M12 series undergoes strict waterproof testing to ensure reliability in outdoor and washdown environments.
Can M12 connectors be used for Ethernet and IO-Link?
Absolutely. D-coded M12 connectors are ideal for 100 Mbps Ethernet, while X-coded types support up to 10 Gbps industrial Ethernet. A-coded versions are compatible with IO-Link devices. Connoder’s shielded M12 connectors maintain stable data transmission and minimize EMI.
