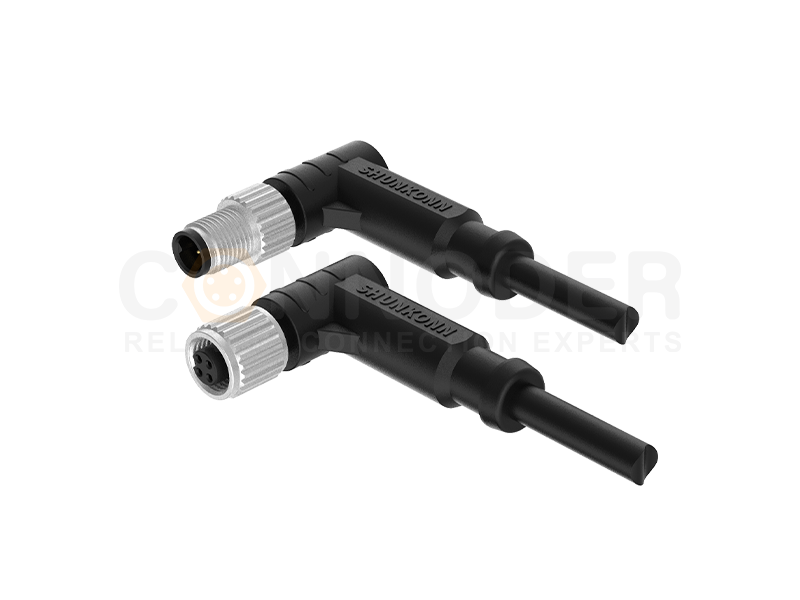

The top features that need to be paid attention to for the M5 circular connector (such as protection level, number of pins, etc.)
Introduction
In modern industrial automation and compact electronic systems, selecting the right connector directly impacts equipment stability and lifespan. The M5 circular connector is widely used due to its compact size, reliable threaded locking mechanism, and stable electrical performance. Understanding the characteristics of M5 circular connector helps engineers and buyers select the most suitable solution for demanding applications.
Circular Connectors
Rugged, compact and versatile — ideal when you need mixed power & signal plus environmental protection.
1. Compact Structure & Mechanical Characteristics
The M5 connector features a miniature threaded interface (M5 × 0.5), making it ideal for installations where space is limited. Its screw coupling mechanism ensures secure mating even in vibration-prone environments.
Key Mechanical Features:
Precision threaded locking system
Anti-vibration and anti-loosening design
Multiple mounting options (cable mount & panel mount)
Durable housing materials (brass, stainless steel options)
2. Protection Level (IP Rating) – Critical for Harsh Environments
One of the most important characteristics of M5 circular connectors is their protection level. High-quality connectors typically achieve IP67 when properly mated, and some models can reach IP68 or IP69K.
Protection Features Include:
Waterproof O-ring sealing structure
Dust-proof housing design
Corrosion-resistant metal shell
Wide operating temperature range
These features make M5 connectors suitable for outdoor automation, humid factory environments, wash-down production lines, and sensor networks.
3. Number of Pins & Contact Configuration
The number of pins is another key factor when evaluating the characteristics of M5 circular connector.
Common Pin Options:
2-pin configuration
3-pin configuration
4-pin configuration (most common for sensor + power)
Gold-plated brass contacts are typically used to ensure low contact resistance, stable signal transmission, and extended service life.
4. Electrical Characteristics
M5 circular connectors are designed primarily for low-power signal and sensor applications.
Rated voltage: up to 60V
Rated current: approx. 1A per contact
Insulation resistance: ≥100MΩ
Contact resistance: ≤5mΩ
These electrical parameters ensure stable connectivity in industrial automation systems.
5. Compliance & Standardization
Most M5 circular connectors comply with international standards such as IEC 61076-2-105 and RoHS requirements, ensuring compatibility and safe operation across global markets.
Why Choose Connoder M5 Circular Connectors?
Connoder specializes in manufacturing industrial circular connectors with strict quality control and international compliance standards. Our M5 connectors are engineered for reliability, durability, and customization flexibility.
Our Advantages:
Professional OEM & ODM customization
Stable IP67/IP68 waterproof performance
Strict quality inspection process
Global export experience
Conclusion
Industrial automation systems
Sensor and actuator networks
Robotics and motion control
Smart embedded equipment
Vision and monitoring systems
Understanding the characteristics of M5 circular connector — including protection level, pin configuration, electrical performance, and mechanical reliability — ensures long-term stability and performance in demanding industrial environments.
What are the main characteristics of an M5 circular connector?
The main characteristics of an M5 circular connector include its compact threaded design (M5 × 0.5), IP67/IP68 waterproof protection, 2-pin to 4-pin configurations, low contact resistance, and stable electrical performance. It is specifically designed for space-limited industrial and sensor applications.
What protection level should I look for in an M5 circular connector?
For most industrial environments, an IP67-rated M5 circular connector is recommended. IP67 ensures protection against dust and temporary water immersion. For harsher environments such as wash-down production lines, IP68 or IP69K options provide enhanced waterproof protection.
How many pins are available for M5 circular connectors?
M5 circular connectors are typically available in 2-pin, 3-pin, and 4-pin configurations. The 4-pin version is the most commonly used because it supports both power and signal transmission in sensor and automation systems.
What are the typical electrical specifications of an M5 circular connector?
Standard M5 connectors usually support up to 60V rated voltage and approximately 1A per contact. They also feature insulation resistance ≥100MΩ and contact resistance ≤5mΩ, ensuring stable and reliable signal transmission.
