The ten advantages of the M9 circular connector
Introduction
In modern industrial automation and smart manufacturing environments, reliable connectivity plays a critical role in ensuring system stability and long-term performance. Among various industrial connectors, the M9 circular connector and M12 circular connector stand out for their compact design, robust construction, and high environmental resistance.
As an experienced industrial connector manufacturer, Connoder provides a complete range of M9 connectors designed to meet demanding application requirements across automation, sensors, robotics, and industrial control systems.
M9 Circular Connectors
Rugged, compact and versatile — ideal when you need mixed power & signal plus environmental protection.
Understanding M9 Circular Connectors
The M9 circular connector features a 9 mm threaded locking mechanism, offering a compact yet secure solution for applications where installation space is limited. Positioned between M8 and M12 connectors, M9 connectors provide an excellent balance of size, performance, and reliability. It supports a wider range of pin configurations, higher data rates, and greater power transmission capabilities, making it ideal for sensors, actuators, fieldbus, and Ethernet-based systems.

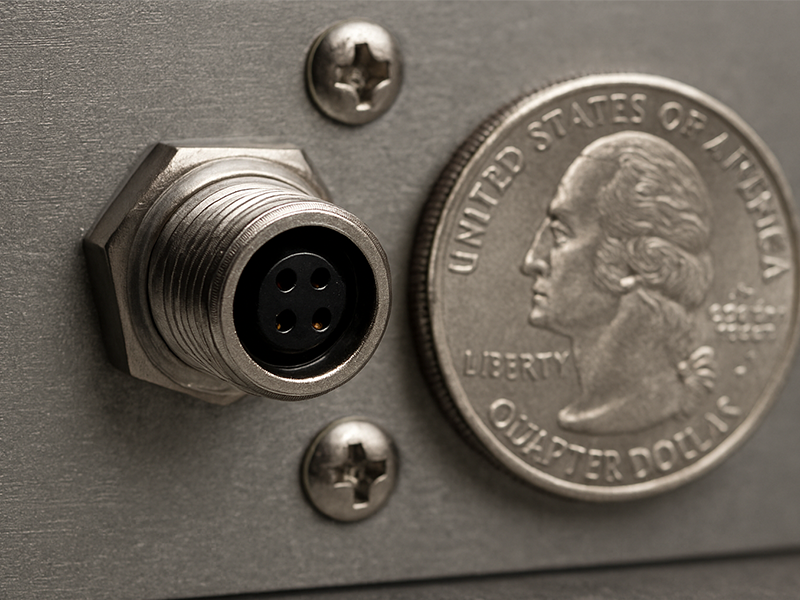

The M9 circular connector is installed on the industrial panel.
Actual installation shots of Connoder M9 circular connectors on industrial panels. Their compact design fits into small spaces. The installation is convenient and secure, providing stable and interference - resistant signal transmission for industrial control equipment.
The Ten Key Advantages of the M9 Circular Connector
1. Compact and Space-Saving Design
M9 circular connectors are designed for applications with limited installation space, enabling compact device layouts without sacrificing performance.
2. Secure Threaded Locking Mechanism
The threaded coupling ensures a stable and vibration-resistant connection, minimizing the risk of accidental disconnection in dynamic environments.
3. High Environmental Protection
With IP67-rated sealing options, M9 connectors provide excellent protection against dust and temporary water immersion.
4. Mechanical Durability
The circular structure enhances resistance to shock, vibration, and mechanical stress, improving overall connector lifespan.
5. Flexible Customization Options
M9 connectors support customized pin counts, cable lengths, and termination methods to suit specific application requirements.
6. Reliable Electrical Performance
Precision-engineered contacts ensure stable signal transmission and consistent electrical performance.
7. Easy Installation and Maintenance
Despite secure locking, M9 connectors allow straightforward mating and unmating during installation or servicing.
8. Multiple Pin Configurations
Available in various pin layouts, M9 connectors accommodate power, signal, and mixed-signal applications.
9. Broad Industrial Applicability
M9 connectors are widely used in automation, sensors, instrumentation, medical devices, and transportation systems.
10. Long Service Life and System Stability
Durable materials and robust design contribute to reduced maintenance costs and improved system reliability.
M9 and M12 connectors are installed on the sensor.
Connoder M9/M12 connectors are equipped with industrial sensors, meeting different signal transmission requirements. They are easy to install and provide a stable connection, laying a solid foundation for the accurate operation of automated equipment in terms of signal transmission.
Why Choose Connoder for Your M9 Circular Connector Needs
At Connoder, we specialize in engineered connection solutions designed for real-world industrial challenges:
📌 Expertise & Quality: Decades of experience in industrial connector design and manufacturing.
📌 Comprehensive Product Range: From M5 to M16 circular connectors including customized M9 and M12 series.
📌 Global Reliability: Products tested for environmental endurance, vibration resistance, and long-term performance.
📌 Customer-centric Customization: Tailored solutions for unique application specs.
We partner with customers around the world to solve connectivity challenges, accelerate industrial automation projects, and ensure system reliability.
Conclusion
The M9 circular connector is an excellent choice when compact size, secure locking, environmental protection, and customization are critical.
What are the main advantages of an M9 circular connector compared to other small connectors?
The M9 circular connector offers an excellent balance between compact size and reliable performance. Compared with smaller connectors, it provides a secure threaded locking mechanism, better vibration resistance, and higher environmental protection such as IP67 sealing. These features make M9 connectors ideal for space-constrained industrial applications where stable signal transmission and durability are required.
In which applications is an M9 circular connector the best choice?
M9 circular connectors are commonly used in industrial automation, sensors, instrumentation, medical devices, and compact control systems. They are especially suitable for applications with limited installation space but demanding requirements for mechanical stability and environmental protection.
How does an M9 circular connector differ from an M12 circular connector?
The main difference lies in size, capacity, and application scope. M9 circular connectors are smaller and optimized for compact designs, while M12 circular connectors support higher pin counts, more coding options, and higher data or power transmission. In practice, M9 connectors are often used for sensors and compact devices, whereas M12 connectors are preferred for broader industrial automation and communication systems.
Are M9 circular connectors suitable for harsh industrial environments?
Yes. Thanks to their circular design, threaded coupling, and IP67-rated sealing options, M9 circular connectors perform reliably in environments exposed to dust, moisture, vibration, and mechanical stress. This makes them a dependable solution for long-term industrial operation.
