The ten advantages of the M12 circular connector
Introduction
In modern industrial automation, reliable connectivity is everything. Whether you’re wiring sensors, actuators, or industrial Ethernet systems, the M12 circular connector has become the global standard for performance, durability, and compact design. This M12 Circular Connector Selection Guide explains the ten key advantages of M12 connectors, shows you how to select the right type for your application, and introduces how Connoder — a trusted connector manufacturer — helps industries achieve smarter, more reliable connections.

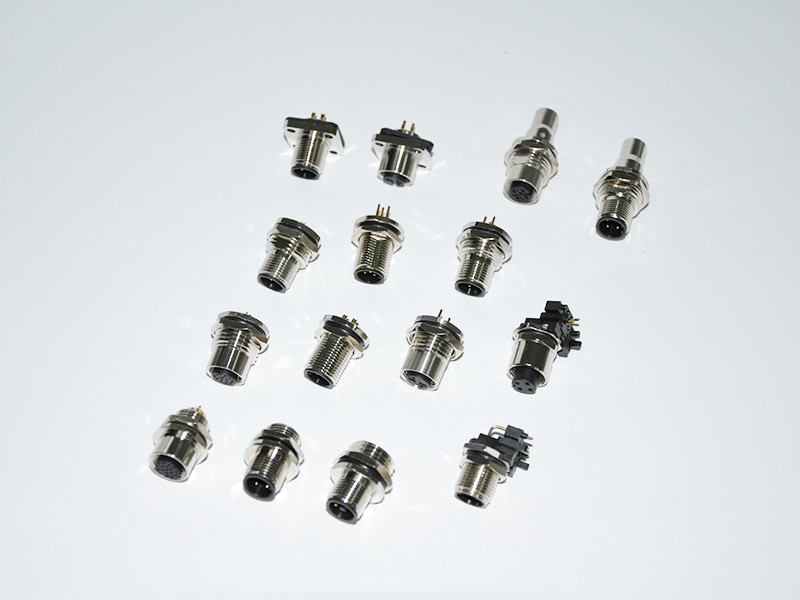

M12 Circular Connectors
Rugged, compact and versatile — ideal when you need mixed power & signal plus environmental protection.
What Is an M12 Circular Connector?
The M12 connector is a compact, 12 mm threaded circular connector widely used in sensors, robotics, and industrial Ethernet. Originally standardized by IEC, it ensures interoperability between brands and devices. Its threaded locking mechanism provides secure mating even under vibration or harsh conditions, making it the preferred choice in manufacturing, transportation, and IIoT environments.

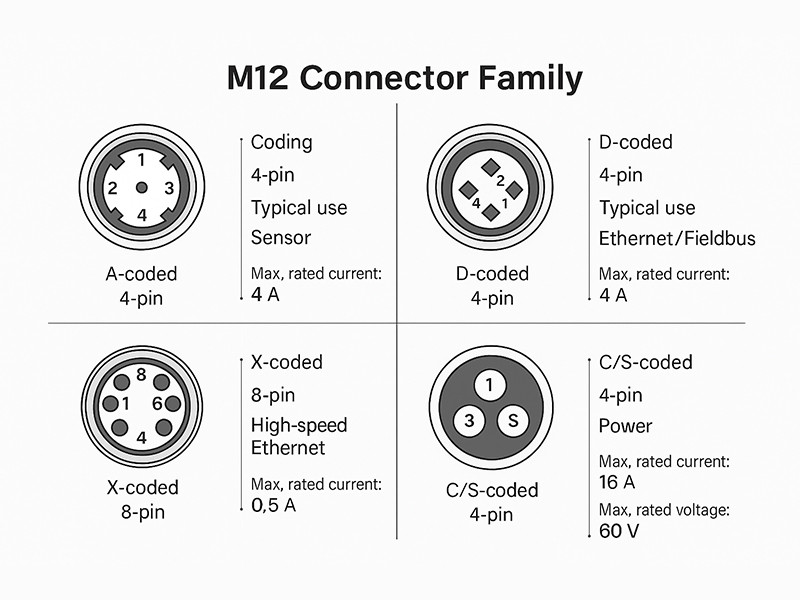

Detailed technical illustration of the M12 connector
It presents the pin layout, the number of pins, and their functions, highlighting its durability, vibration resistance, and reliable signal transmission performance in industrial equipment integration.
The Ten Advantages of M12 Circular Connectors
Compact Design — Small 12 mm thread fits tight spaces while maintaining strong mechanical locking.
Rugged Durability — With IP67 and IP69K options, M12 connectors resist dust, moisture, and vibration.
Multiple Codings — A-, B-, D-, X-coded versions allow separation of power, signal, and data.
High Mating Reliability — Threaded coupling ensures secure, repeatable connections even in vibration zones.
Flexible Termination Options — Choose molded, field-attachable, or PCB-mount types for versatility.
Ethernet Compatibility — D- and X-coded connectors support 100 Mbps to 10 Gbps industrial Ethernet.
EMI/RFI Shielding — Metal shells and 360° shielding improve signal integrity in noisy environments.
Wide Pin Configurations — 3 to 12 pins available to suit power, signal, and hybrid applications.
Standardized & Interoperable — Fully compliant with IEC standards; compatible across vendors.
Cost-Effective & Scalable — Broad availability and competitive pricing for large-scale projects.

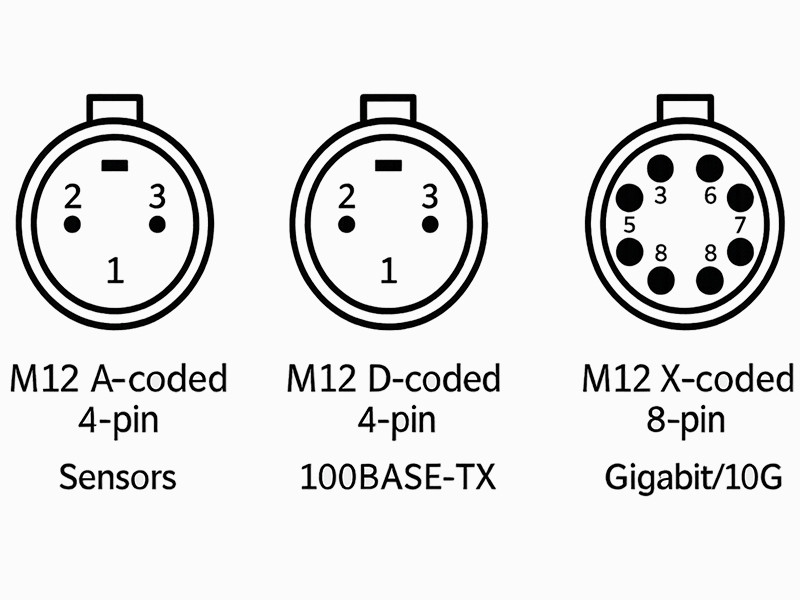

M12 Coding Type Wiring Diagram
It provides detailed explanations of the pin assignments, color coding, and connection layouts for different encoding types (A/D/X). It also clarifies the wiring protocols for the connections of industrial sensors/actuators.
How to Choose the Right M12 Connector
When selecting an M12 connector, consider these key parameters:
| Selection Factor | Details / Tips |
| Application Type | Signal / Power / Ethernet |
| Coding | A (Sensors), B (Fieldbus), D/X (Ethernet) |
| Pin Count | 3–12 pins depending on circuit needs |
Environment | Check IP rating (IP65/IP67/IP69K) |
Termination | Molded, crimp, screw, or solder |
Shielding | Required for Ethernet or EMI-sensitive zones |

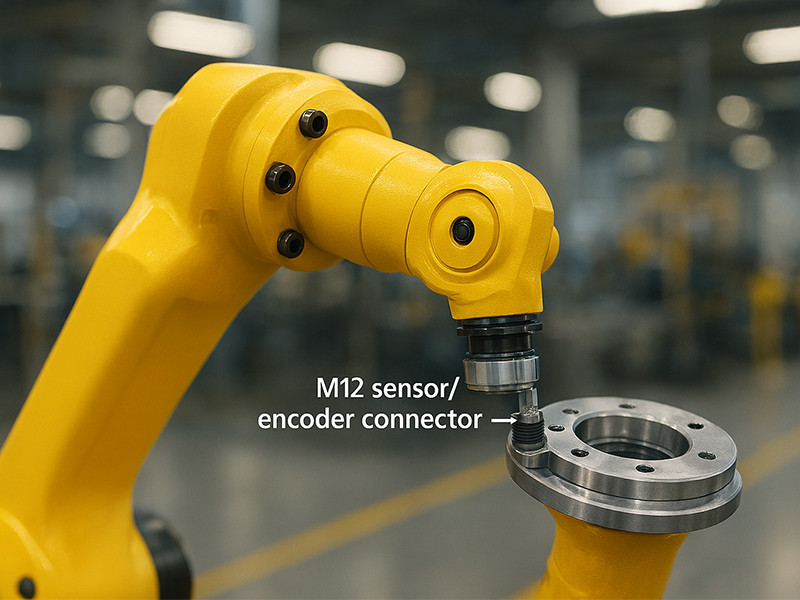

M12 Circular Connectors
It demonstrates the applications in automation, robotics and sensor networks, emphasizing the robust waterproof design, anti-vibration performance, and reliable signal/power transmission capability in harsh industrial environments.
Why Choose Connoder M12 Solutions
At Connoder, we design and manufacture precision-engineered connectors that exceed IEC and IP standards. Our M12 connector line covers sensor I/O, industrial Ethernet, and power variants for automation, robotics, and IIoT systems.
Certified manufacturing and full traceability
OEM customization (coding, length, overmold, labeling)
Global distribution and fast delivery
Expert engineering and technical documentatio.
Conclusion
The M12 circular connector remains one of the most trusted solutions for industrial connectivity — offering unmatched durability, versatility, and standardization. By understanding the ten key advantages and following this selection guide, engineers can design reliable, scalable systems that perform in any environment.
Connect with Confidence — Choose Connoder.
What is an M12 circular connector used for?
M12 circular connectors are widely used in industrial automation to connect sensors, actuators, and field devices.
Their 12 mm threaded design provides secure, vibration-resistant connections for signal, power, and data transmission — making them ideal for harsh industrial environments, robotics, and IIoT systems.
What are the main advantages of M12 connectors?
The key advantages of M12 connectors include compact size, rugged IP67/IP69K protection, multiple codings (A, B, D, X), high mating reliability, EMI shielding, and wide pin configurations.
They combine versatility and durability, ensuring long service life even under demanding operating conditions.
How do I choose the right M12 connector for my application?
To select the right M12 connector, consider the following:
Application type (signal, power, or Ethernet)
Coding type (A, B, D, X, S, T)
Pin count and current rating
IP protection level (IP65–IP69K)
Termination style (molded, screw, or solder)
For guidance, Connoder offers a complete M12 Circular Connector Selection Guide and custom configuration options.
What makes Connoder’s M12 connectors different from others?
Connoder’s M12 connectors are precision-engineered to exceed IEC and IP standards.
They feature enhanced durability, customizable cable lengths, overmold colors, and labeling options.
With certified manufacturing, global distribution, and expert engineering support, Connoder ensures reliable performance and fast delivery worldwide.
Learn more at Connoder About Us.
