The common M16 circular connector solution in the rail transit industry
- Share
- Issue Time
- Oct 21,2025
Summary
In today’s rapidly evolving industries — from factory automation to transportation — connector technology plays a quietly pivotal role. Among the many interface hardware options, M16 circular connectors stand out for their flexibility, robustness, and mid-sized footprint.
The common M16 circular connector solution in the rail transit industry
Introduction
In today’s rapidly evolving industries — from factory automation to transportation — connector technology plays a quietly pivotal role. Among the many interface hardware options, M16 circular connectors stand out for their flexibility, robustness, and mid-sized footprint.
This article explores the The application fields of M16 circular connectors and focuses on how they are implemented in the rail-transit industry — a domain demanding extreme reliability and compliance. As a leading provider of circular connector solutions, Connoder demonstrates how our products meet these demands.
What Are M16 Circular Connectors and Why They Matter
An M16 circular connector refers to a round connector interface with a nominal 16 mm thread diameter. Within the broader M-series family (M5, M8, M12, M16, M23, etc.), the M16 connector strikes a balance between compact size and multi-pin capacity.
Compact form with multiple contacts
Strong sealing (up to IP67/68)
Suitable for signal, data, or power lines
Flexible mounting: cable-to-panel, cable-to-cable, or overmolded assemblies
At Connoder, our M16 connectors are manufactured with high precision, tested for vibration and moisture resistance, and designed to perform in industrial and transportation environments.

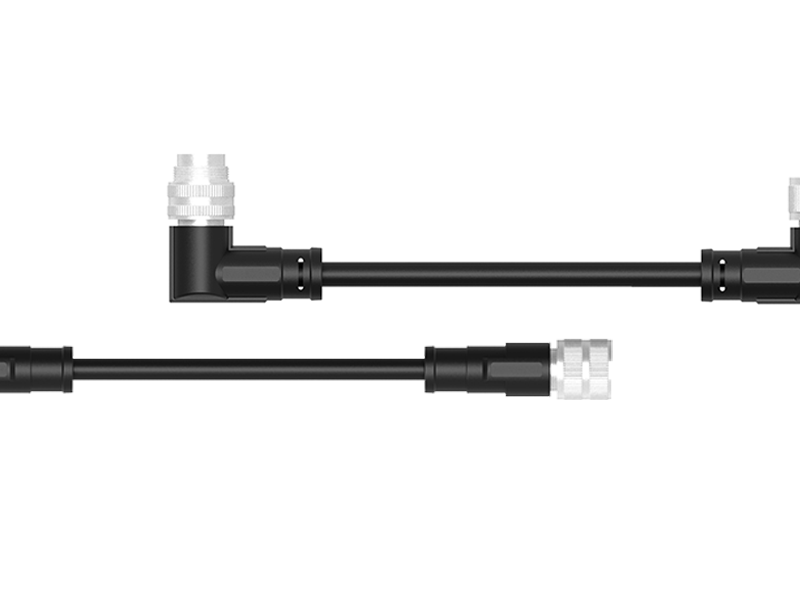

M16 Circular Connectors
Rugged, compact and versatile — ideal when you need mixed power & signal plus environmental protection.
Application Fields of M16 Circular Connectors
1. Industrial Automation & Robotics
Used in sensors, actuators, and PLC I/O modules where space is limited and durability is vital.
2. Instrumentation & Testing
vides reliable, shielded connections in laboratories, diagnostic systems, and measurement instruments.
3. Telecommunications & Outdoor Equipment
Ideal for outdoor base stations and control boxes thanks to excellent sealing and corrosion resistance.
4. Renewable Energy & Smart Infrastructure
Supports photovoltaic inverters, wind turbine sensors, and other outdoor power systems.
5. Rail Transit & Transportation Systems
The most demanding field for M16 connectors — where vibration, temperature variation, and safety standards push the limits of design.

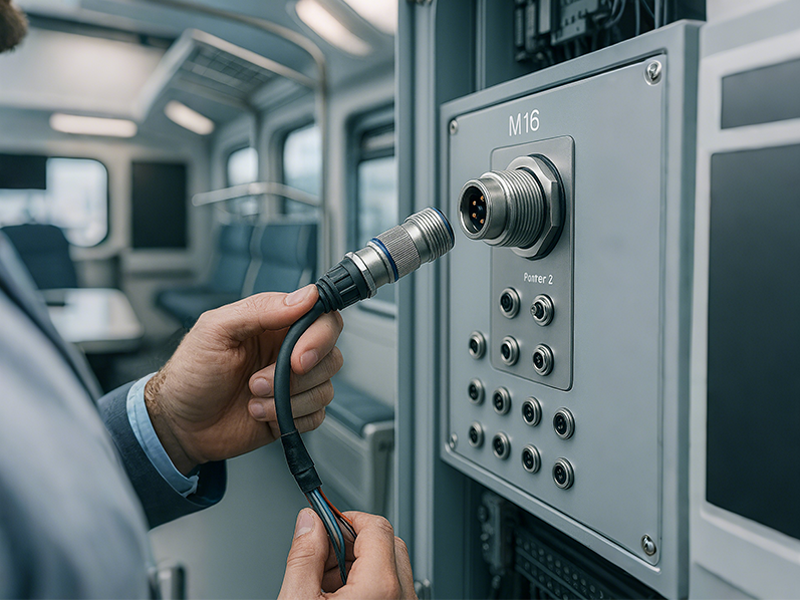

Technician installing M16 circular connector in train control panel
The technicians installed an M16 circular connector into the train control panel, ensuring a secure and accurate connection of the lines to guarantee the stability of the train control system's operation.
Rail Transit: Harsh Environments, High Reliability
In railway and subway systems, connectors must endure constant vibration, shock, and temperature extremes. According to industry leaders such as Amphenol and JAE Japan Aviation Electronics, circular connectors — especially the M-series — are essential for onboard vehicle control, power distribution, door systems, lighting, and signal transmission.
IP67/IP68 sealing for outdoor conditions
Vibration resistance and mechanical locking (screw or bayonet)
Compliance with VG95234 / EN50467 railway standards
Long mating lifecycle for frequent maintenance operations

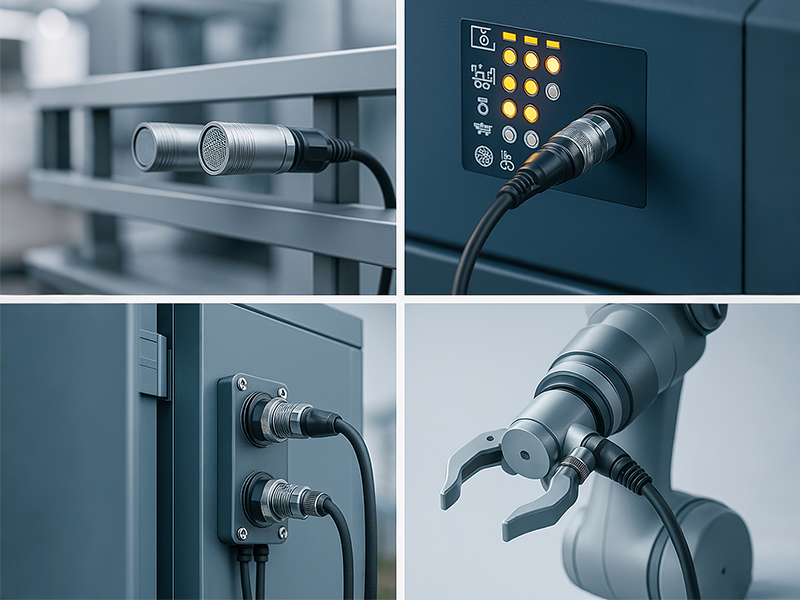

M16 connector use cases: factory, rail, wayside, robotics.
M16 connectors serve factories (equipment links), rail (control systems), wayside (signal devices), and robotics (motion connections), ensuring reliable power/data transmission.
Common M16 Connector Solutions in Rail Transit
Panel-mount connectors with screw or bayonet locks for driver consoles
Overmolded cable assemblies for sensors, doors, and HVAC systems
Waterproof connectors for undercarriage and trackside use
Customized harnesses pre-terminated and tested by Connoder’s R&D team
Connoder: Your Partner for Rail-Ready M16 Solutions
Connoder specializes in industrial circular connectors and custom cable assemblies. With advanced manufacturing facilities and a dedicated engineering team, we provide tailored M16 solutions for transportation, automation, and renewable sectors.
Custom M16 assemblies for onboard and wayside rail systems
Certified testing for vibration, IP sealing, and thermal endurance
Global supply capability and technical support for OEM projects
Strong quality management and R&D focused on reliability and innovation
Whether you’re designing new rolling stock, retrofitting control panels, or building maintenance test rigs, Connoder’s M16 circular connectors ensure long-term performance and stability.

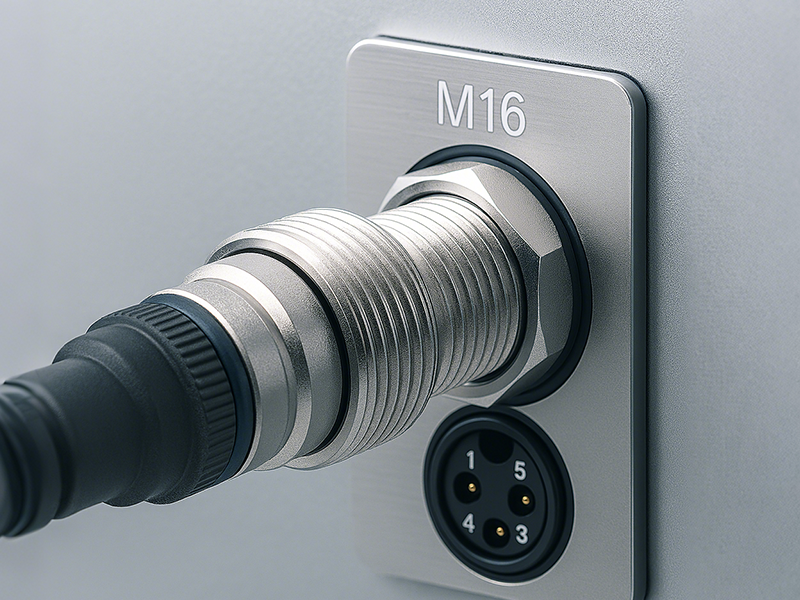

M16 connector panel installation
A close-up shows an M16 connector mating to a panel mount—metal threads align, the connector seats tightly, securing stable power/data transfer for industrial or rail systems.
Conclusion
M16 circular connectors have proven themselves across diverse application fields — from industrial automation to renewable energy and rail transit. In the demanding railway environment, their robust locking mechanisms, waterproof sealing, and compact design make them the connector of choice.
By partnering with Connoder, engineers and manufacturers gain access to high-quality, customizable M16 solutions backed by years of expertise and global reliability.
What are the main application fields of M16 circular connectors?
M16 circular connectors are widely used in industrial automation, instrumentation, telecommunications, renewable energy, and rail transit systems. Their compact size, high pin density, and strong sealing (up to IP68) make them suitable for harsh environments and high-vibration conditions.
Why are M16 connectors ideal for rail transit applications?
Rail transit systems demand connectors that can withstand vibration, shock, dust, moisture, and temperature variations. M16 connectors meet these requirements thanks to their rugged locking mechanisms, IP-rated sealing, and compliance with railway standards like VG95234 and EN50467. Connoder’s M16 solutions are specially engineered for onboard and trackside use.
How does Connoder ensure the quality and reliability of its M16 connector products?
Connoder follows a strict quality control process that includes vibration, sealing, and temperature endurance testing. Each product is developed in collaboration with our R&D and engineering teams to meet international industrial and transportation standards. Learn more about our company and certifications here: Connoder About Us.
Can M16 circular connectors be customized for specific applications?
Yes. Connoder offers customized M16 connector assemblies, including different pin configurations, cable lengths, over-molded designs, and locking types. We also provide technical consulting to help engineers select the right M16 connector for their system requirements.
