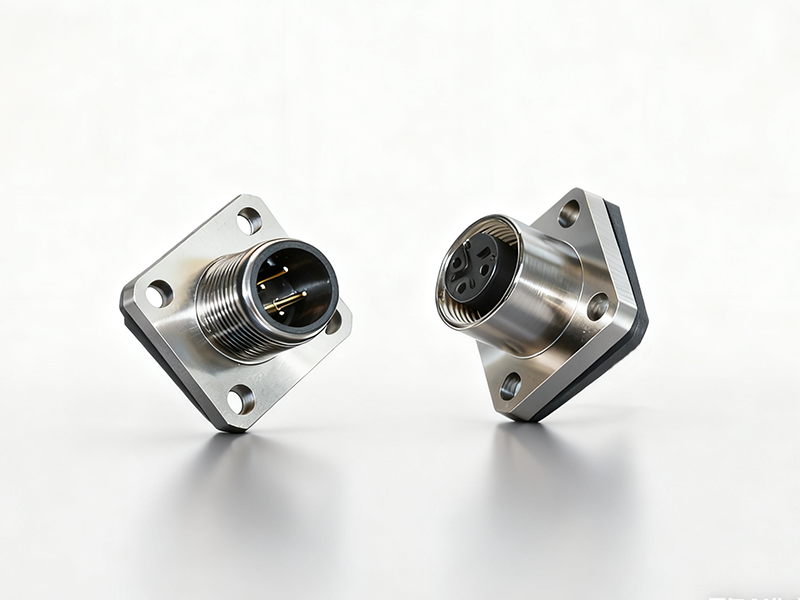

Panel-mounted M12 circular connectors - two options: flange and threaded lock types
Introduction
Panel-mounted M12 circular connectors are common in industrial automation, sensors, robotics and control panels. The chosen installation type—most often flange-mount or threaded-lock—determines mechanical stability, sealing (IP) performance, and serviceability. This guide, produced with CONNODER product & engineering experience in mind, helps engineers and procurement teams choose and specify the best panel-mount option for their application.
M12 Circular Connectors
Rugged, compact and versatile — ideal when you need mixed power & signal plus environmental protection.
Flange-Mounted M12 Connectors
What is flange-mount?
Flange-mount M12 connectors have a square or round flange with screw holes to fasten the receptacle to a panel. They are ideal where robust mechanical fixation and high vibration resistance are required. Many designs allow the contact insert to be installed after the housing is fixed — useful for modular assembly and maintenance.
Advantages
Strong, vibration-resistant mechanical mount
High sealing potential (IP67 / IP68 / IP69K with proper gasket)
Flexible assembly: mount housing first, wire later
Recommended uses
Best for heavy-duty control cabinets, outdoor enclosures or machinery where panel surfaces are uneven or thick and high mechanical strength is needed.

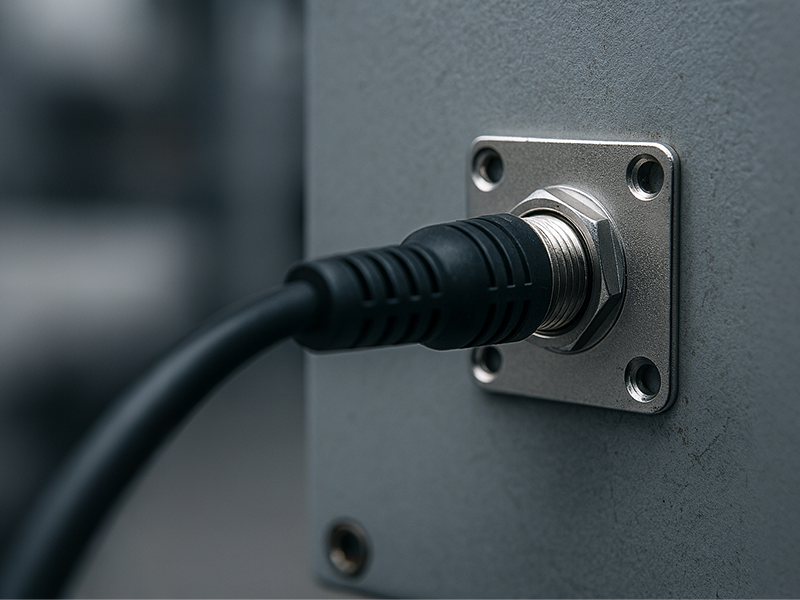

Flange-mount M12 panel connector on metal control panel
The installation components on the metal control panel are precisely fitted to the panel with a sophisticated structure. With its stable connection feature, it is suitable for industrial environments and ensures the stability and reliability of signal transmission in complex situations.
Threaded-Lock Panel-Mount M12 Connectors
What is threaded-lock?
Threaded-lock panel mounts secure the M12 connector by threading the connector barrel through a round panel hole and locking with a nut (front or rear). An O-ring or gasket provides sealing. This approach minimizes the panel footprint and simplifies installation.
Advantages
Compact footprint — only a round cutout required
Lower part count and simpler installation
Good for space-limited enclosures and sensor boxes
Recommended uses
Ideal for compact instrumentation, sensor housings, and applications where panel space is at a premium but sealed connections are still required.

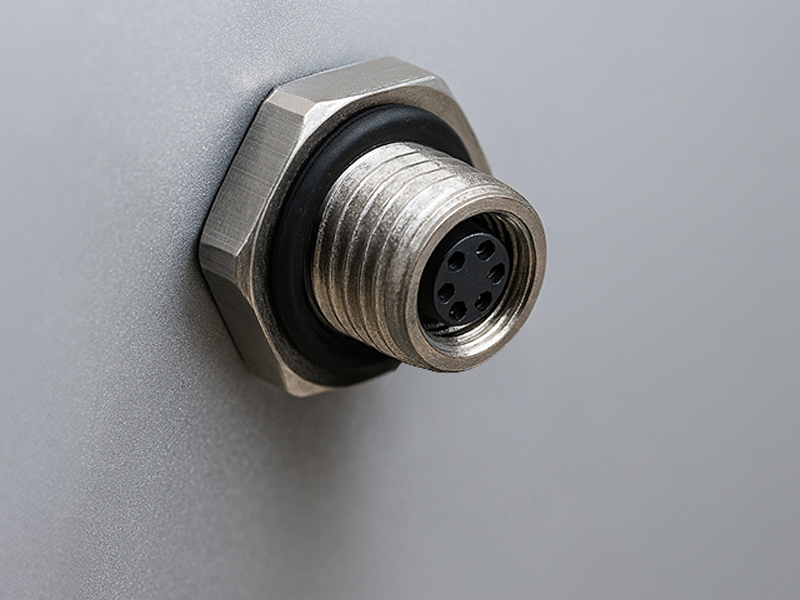

Threaded-lock M12 panel connector front-mounted
It adopts a precise threaded fastening structure, which is suitable for the front-panel installation scenario. With stable connection performance, it is compatible with industrial equipment signal transmission. The installation is convenient and it is resistant to vibration and moisture-proof.
Flange vs Threaded-Lock — Quick Comparison
| Feature | Feature | Threaded-Lock |
| Mechanical strength | Very high — multi-screw fixation | Good — depends on nut & panel |
| Panel prep | Cutout + screw holes | Single round hole (M12 × 1.0) |
| Sealing / IP | Excellent with proper gasket & torque | High if O-ring & nut tightened correctly |
Space requirement | Larger footprint | Compact |

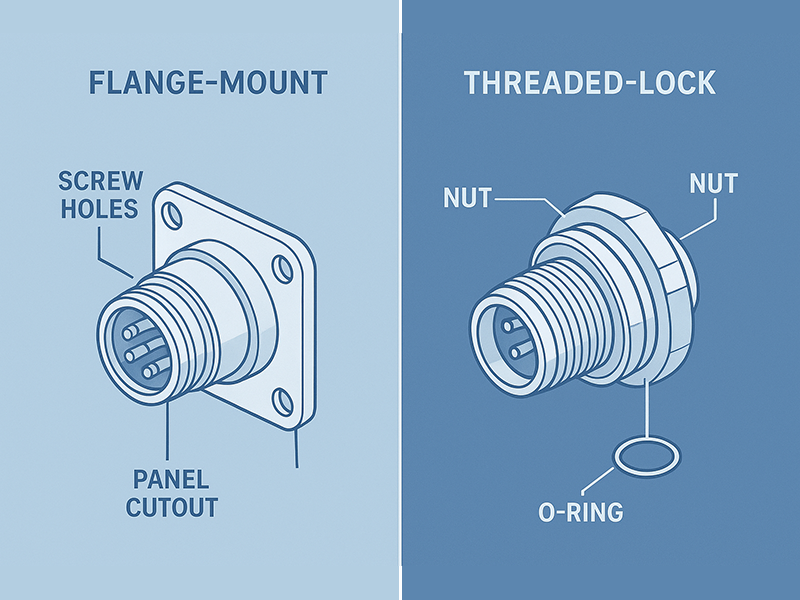

Side-by-side comparison graphic — flange vs threaded M12 panel mount
It adopts a precise threaded fastening structure, which is suitable for the front-panel installation scenario. With stable connection performance, it is compatible with industrial equipment signal transmission. The installation is convenient and it is resistant to vibration and moisture-proof.
Design & Spec Checklist (what to include)
Installation type: specify panel-mount — flange (4-hole) or panel-mount — threaded-lock (front/rear).
Mechanical drawing: panel cutout dimensions, flange hole pattern or thread depth & nut clearance.
Sealing: required IP rating (IP67 / IP68 / IP69K) and gasket/O-ring details.
Pin count & coding: e.g., 4-pin A-coded, 5-pin D-coded, etc.
Environmental & mechanical constraints: operating temperature, vibration spec, panel thickness range.
Why CONNODER?
CONNODER specializes in industrial connectivity
Industrial-grade materials, plating and QC to meet long-term use.
Full technical support — datasheets, panel cutouts and integration help.
Custom options: pinout, coding, sealing and cable-assembly services.
What are the main installation types for panel-mounted M12 circular connectors?
The two most common installation types are flange-mounted and threaded-lock panel-mounted. Flange types use a square or round plate secured with screws, while threaded-lock types use a nut on a threaded barrel that passes through a round panel cutout.
When should I choose a flange-mounted M12 connector?
Choose a flange-mounted design when you need strong mechanical stability, high vibration resistance, or when working with thick or uneven panel surfaces. These connectors are common in outdoor equipment, heavy machinery, and industrial control cabinets.
What are the benefits of a threaded-lock M12 panel-mount connector?
Threaded-lock connectors are compact, easy to install, and require only a single round panel hole. They are ideal for small sensor housings, light industrial devices, and applications where panel space is limited.
Do both installation types support high IP protection such as IP67 or IP68?
Yes. Both flange-mounted and threaded-lock M12 connectors can achieve IP67 / IP68 / IP69K protection when installed correctly with proper gaskets or O-rings. Flange mounts typically provide slightly better compression sealing.
