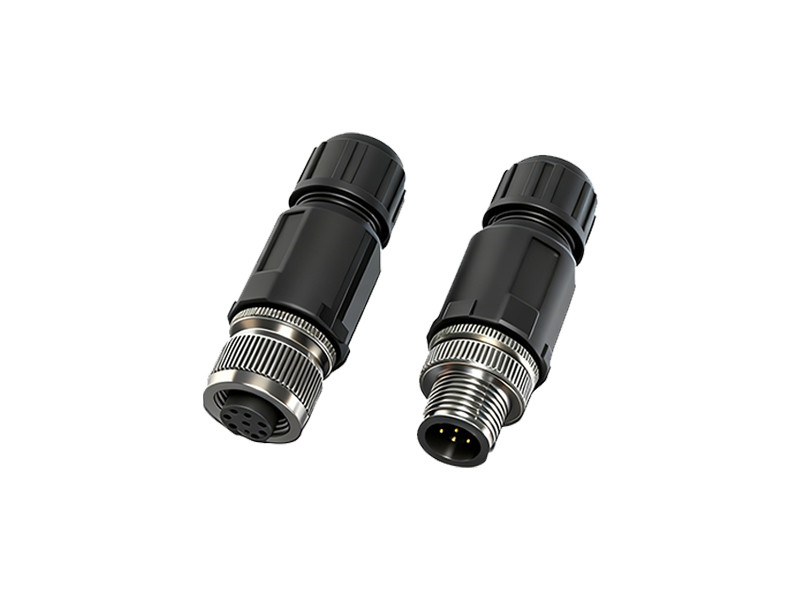

Miniature M12 circular connectors - Compact design for small devices
- Share
- Issue Time
- Nov 22,2025
Summary
As devices shrink and performance demands rise, M12 circular connector structure design must deliver industrial strength in a compact footprint. Connoder provides miniature M12 solutions engineered for embedded sensors, compact robotics, and industrial IoT devices — preserving IP protection, signal integrity, and reliable mating cycles while saving space.
Miniature M12 circular connectors - Compact design for small devices
Introduction
As devices shrink and performance demands rise, M12 circular connector structure design must deliver industrial strength in a compact footprint. Connoder provides miniature M12 solutions engineered for embedded sensors, compact robotics, and industrial IoT devices — preserving IP protection, signal integrity, and reliable mating cycles while saving space.
Anatomy of a Miniature M12 Circular Connector
Below is a concise breakdown of the structural elements that make a mini M12 both compact and industrial-grade.
Outer Shell & Coupling
Precision-machined or stamped metal shell with a shortened coupling nut preserves mating strength and shielding while reducing depth for recessed or low-profile assemblies.
Insulator & Contact Insert
High-performance thermoplastics (e.g., LCP) enable tighter contact spacing and reliable dielectric performance in a reduced volume.
Contacts & Plating
Gold or tin plating on precision contacts ensures low contact resistance and corrosion resistance; suitable for both power and high-speed signal variants (A/D/X coding).
Sealing & Strain Relief
Miniature O-rings and optimized gland geometry secure IP67/IP68 protection and compact backshells preserve cable longevity without adding bulk.
M12 Circular Connectors
Rugged, compact and versatile — ideal when you need mixed power & signal plus environmental protection.
Coding, Pinouts & Compact Variants
M12 coding (A, D, X, etc.) defines keyway and pin arrangement. For small devices, A-coded sensors and D-coded Ethernet (100 Mb) are most common; X-coded supports higher speeds but can increase contact density and complexity.
A-coded (Sensor/Actuator)
Common 3/4/5-pin options optimized for signal and low-power applications in tight spaces.
D-coded & X-coded (Ethernet)
D-coded supports industrial 100 Mb Ethernet (PROFINET); X-coded variants support multi-Gb links when required.
Connoder's Miniature M12 Solutions
Connoder designs miniature M12 circular connector structures with practical OEM needs in mind. Key product benefits include compact depth (suitable for low-profile housings), multiple termination options (PCB, crimp, solder), and tailored IP sealing.
Design & Assembly Guidance
Verify mechanical clearance for shortened coupling nut and backshell when designing enclosures.
Use recommended torque values to protect O-ring seals and ensure IP rating.
Specify plating (gold for low-resistance signal, tin for general use) according to contact lifecycle and environment.
Request Connoder's 3D CAD models to validate fit early in the design-in phase.
Applications & Case Examples
Typical use cases for Connoder miniature M12 connectors include:
Embedded sensors
Pressure, temperature and position sensors with tiny enclosures.
Compact robotics
Wrist joints and grippers where space and vibration resistance are critical.
Distributed I/O modules
Small junction boxes and edge devices for industrial networks.
Quality, Standards & Trust
Connoder follows industry best practices and standards for connector design and testing. Our manufacturing and QA processes ensure compliance with international norms (IP ratings, RoHS, and applicable IEC specs), and we provide traceable test data on request.
Conclusion
To evaluate how a miniature M12 circular connector structure fits your product, request samples or 3D CAD models from Connoder. Our engineers can assist with footprint design, pinout customization, and lifetime testing requirements.
What is the structure of a miniature M12 circular connector?
A miniature M12 circular connector consists of a compact metal shell, a shortened coupling nut, high-performance thermoplastic insulator, precision contacts with gold or tin plating, and optimized O-ring sealing for IP67/IP68 protection. The structure is designed to save space while maintaining industrial-grade performance.
Why are miniature M12 connectors ideal for small devices?
Miniature M12 connectors offer robust mechanical strength, reliable signal transmission, and full IP-rated sealing, all in a reduced footprint. This makes them perfect for space-limited applications such as compact sensors, small robotics, and embedded industrial IoT devices.
What coding types are commonly used in compact M12 connectors?
The most common coding types for compact M12 connectors are A-coded for sensors and actuators (3–5 pins) and D-coded for 100 Mbps Ethernet industrial communication. X-coded variants are also available for high-speed data but may require more contact density.
What advantages do Connoder miniature M12 connectors offer?
Connoder provides miniature M12 connectors with reduced installation depth, multiple termination options (PCB, crimp, solder), strong IP sealing, and long mating-cycle life. These designs are optimized for OEMs developing compact industrial devices. More details can be found on Connoder’s company page.
