M12 is a data connection solution for industrial Ethernet (Ethernet)
Introduction
In modern industrial automation and smart manufacturing, stable and reliable data connections are essential. Traditional RJ45 connectors often fail under harsh conditions—dust, moisture, oil, and vibration. M12 circular connectors provide a rugged alternative tailored for Industrial Ethernet. Connoder supplies high-quality M12 connector assemblies designed for demanding, real-world environments.

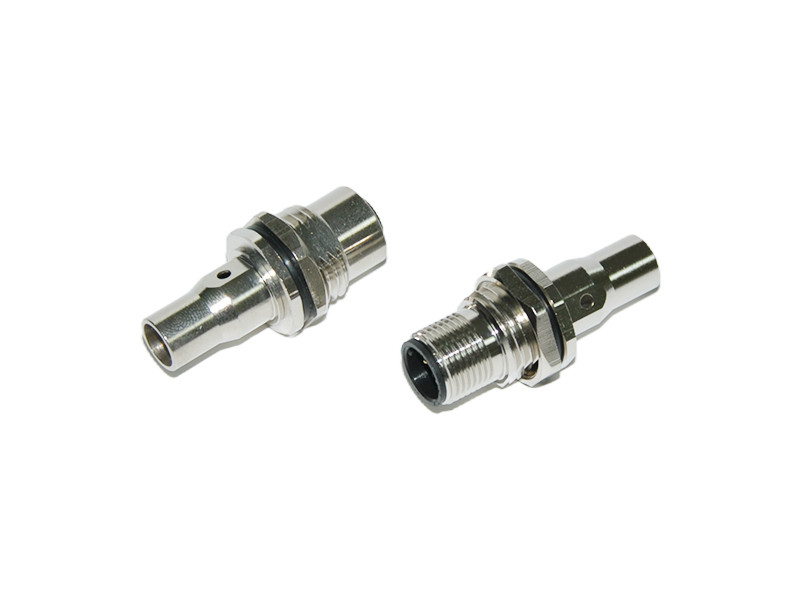

M12 Circular Connectors
Rugged, compact and versatile — ideal when you need mixed power & signal plus environmental protection.
Why M12 Connectors for Industrial Ethernet?
Superior Environmental Resistance
M12 connectors commonly meet IP67 (or higher), delivering dust-tight sealing and water resistance. Metal shell variants and screw-locking mechanics provide extra protection against vibration and contamination compared to RJ45.
Coding Options for Protocols
M12 coding prevents mismating and optimizes pin allocation. D-coded (4-pin) suits 100 Mbps Industrial Ethernet (e.g., PROFINET), while X-coded (8-pin) supports Gigabit and beyond with full shielding for EMI-prone sites.
Adoption in Industrial Switches
Many machine-mount and outdoor industrial Ethernet switches feature M12 ports to improve field reliability and reduce cable failure. Connoder offers compatible M12 cordsets and connector assemblies for seamless integration with such switches.

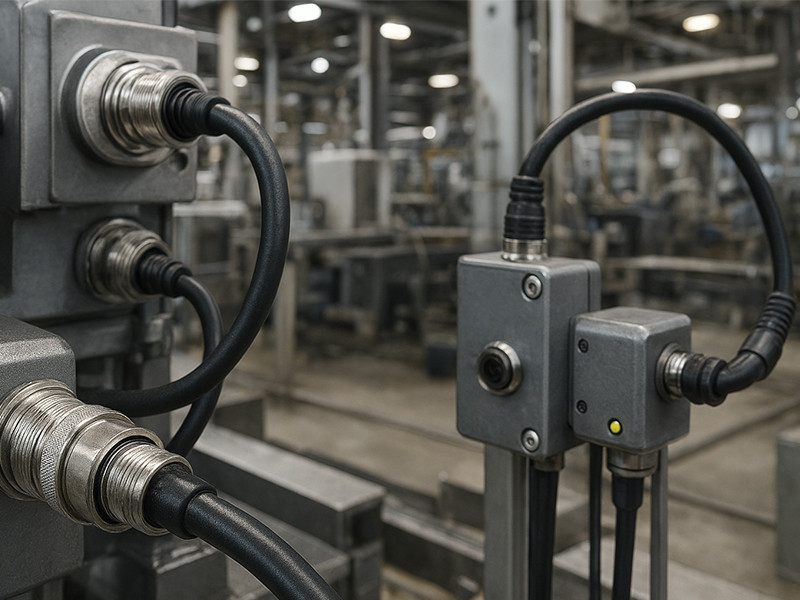

M12 circular connectors on mechanical and on-site equipment
In the integrated network of the factory environment, mechanical components and on-site equipment are equipped with robust connectors, featuring excellent protection performance. The metallic appearance provides a suitable fit for complex working conditions, ensuring stable and reliable connection guarantees for equipment interconnection.
Key Application Scenarios
Machine-Mounted Switches
Machine tools, robots and outdoor cabinets benefit from M12 ports that withstand vibration and contamination.
Harsh-Environment Field Cabling
PUR-jacketed M12-to-M12 / M12-to-RJ45 assemblies deliver IP protection, oil resistance and flex life for drag-chain use.
High-Bandwidth Systems
X-coded M12 supports high bandwidth for machine vision and edge compute, with Cat6A level performance in compact form.
Design & Engineering Considerations
Selection: choose D-coded for 100 Mbps, X-coded for Gigabit+; consider hybrid/power variants if you need combined power/data.
Cable: use shielded twisted pair (Cat5e for D, Cat6A for X); prefer PUR for oil/abrasion resistance.
Installation: follow torque specs for mating, cap unused ports, ensure proper shield grounding.
Testing: verify continuity, shield integrity, and perform periodic inspection of seals and threads.
Why Choose Connoder
Engineering Expertise
Deep understanding of IEC M12 codings and Industrial Ethernet protocols; design support from concept to production.
Full Product Range
D-coded, X-coded, panel receptacles, field-wireable connectors, pre-molded cordsets and custom assemblies.
Quality & Testing
Vibration, temperature cycling, sealing and electrical tests ensure long life in industrial deployments.
Why are M12 circular connectors widely used in Industrial Ethernet applications?
M12 circular connectors offer high vibration resistance, IP67 waterproof protection, and strong mechanical durability, making them ideal for harsh industrial environments where standard RJ45 connectors often fail. Their screw-locking design ensures stable data transmission in automation, robotics, transportation, and outdoor networks.
What is the difference between D-coded and X-coded M12 connectors?
D-coded M12 connectors are designed for 100 Mbps Industrial Ethernet such as PROFINET or EtherNet/IP, using a 4-pin configuration.
X-coded M12 connectors support Gigabit Ethernet and higher bandwidth applications using an 8-pin, fully shielded design. They are preferred in machine vision, high-speed automation, and data-intensive systems.
What types of environments benefit most from M12 connectors?
M12 connectors are ideal for harsh environments such as factories, machine tools, outdoor cabinets, railway systems, and oil-exposed or high-vibration sites. Their robust sealing, metal housings, and stable screw coupling make them suitable for dusty, wet, or mechanically stressed locations.
Can M12 connectors be used for high-speed data applications?
Yes. X-coded M12 connectors are specifically designed for high-speed transmission (Cat6A performance) and are widely used in applications like machine vision cameras, sensors, industrial controllers, and edge computing. They maintain stable signal integrity even in EMI-heavy environments.
