M12 Connector Selection Guide: In-Depth Analysis and Applications of SMD, Assembly, Panel, and Molded Types
- Share
- Issue Time
- Aug 7,2026
Summary
Industrial automation requires reliable connectivity solutions that can withstand harsh environments. This M12 Connector Selection Guide explains how to select the right M12 connector based on mounting methods, applications, electrical requirements, and environmental conditions.
M12 Connector Selection Guide: In-Depth Analysis and Applications of SMD, Assembly, Panel, and Molded Types
Introduction
Industrial automation requires reliable connectivity solutions that can withstand harsh environments. This M12 Connector Selection Guide explains how to select the right M12 connector based on mounting methods, applications, electrical requirements, and environmental conditions.
Circular Connectors
Rugged, compact and versatile — ideal when you need mixed power & signal plus environmental protection.
What Is an M12 Connector?
An M12 connector is a compact circular industrial connector with a 12mm threaded locking mechanism. It is widely used in factory automation, robotics, sensors, industrial Ethernet systems, and machine control applications.
Compared with traditional connection solutions, M12 connectors provide excellent mechanical stability, waterproof protection, vibration resistance, and flexible configuration options.
Key Advantages of M12 Connectors
Reliable threaded locking structure
IP67/IP68/IP69K protection options
Excellent resistance to vibration and shock
Multiple coding and pin configurations
Suitable for demanding industrial environments
Different Types of M12 Connectors Explained
Choosing the correct M12 connector requires understanding the differences between connector structures. The four common types include SMD, Assembly, Panel Mount, and Molded M12 connectors.
1. SMD M12 Connector: Compact PCB Integration Solution
SMD (Surface Mount Device) M12 connectors are designed for direct PCB mounting. They are ideal for compact electronic devices requiring automated manufacturing processes.
Supports surface mount technology
Suitable for high-volume production
Saves PCB space
Ideal for smart sensors and industrial controllers
2. Assembly M12 Connector: Flexible Field Installation
Assembly M12 connectors allow engineers to install cables according to specific project requirements. They provide flexibility for customized cable lengths and field maintenance.
Easy cable customization
Suitable for small batch projects
Convenient maintenance and repair
3. Panel Mount M12 Connector: Reliable Equipment Integration
Panel mount M12 connectors are installed directly on machine housings, control cabinets, and industrial equipment panels to provide stable external connections.
Strong mechanical fixation
Easy equipment integration
Suitable for industrial machinery and automation systems

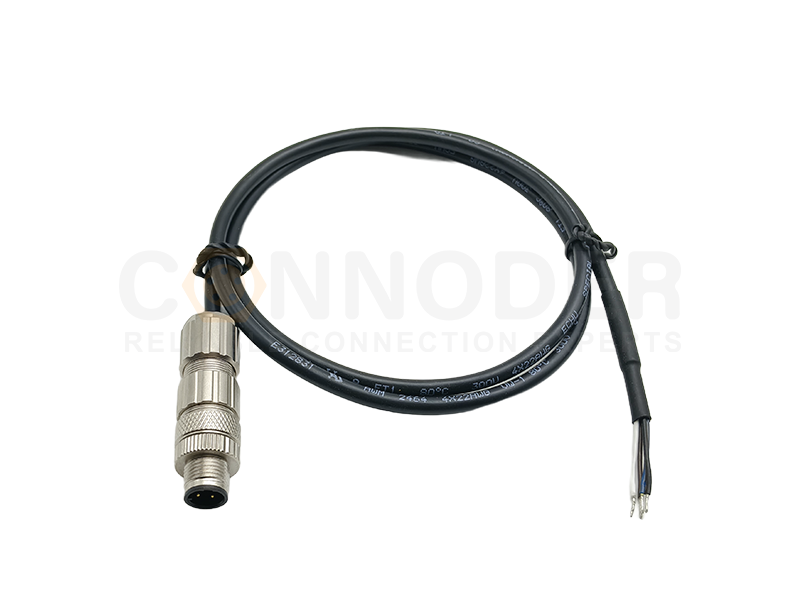

4. Molded M12 Connector: High Reliability Pre-Wired Solution
Molded M12 connectors use injection molding technology to create a sealed connection between cable and connector. They provide excellent waterproof performance and long-term reliability.
High IP protection performance
Excellent vibration resistance
Fast installation
Widely used in sensors and automation equipment
SMD vs Assembly vs Panel Mount vs Molded M12 Connector Comparison
| Type | Main Feature | Typical Application |
|---|---|---|
| SMD | PCB surface mounting | Compact electronic devices |
| Assembly | Field cable installation | Customized projects |
| Panel Mount | Equipment integration | Industrial machines |
| Molded | Pre-wired waterproof design | Sensors and harsh environments |
How to Select the Right M12 Connector?
1. Identify the Application
Select whether the connector is required for signal transmission, industrial Ethernet communication, or power applications.
2. Select the Correct Coding Type
A-coded: Sensors and signal applications
D-coded: Industrial Ethernet
X-coded: High-speed Ethernet
L-coded: Industrial power supply
3. Consider Environmental Requirements
IP protection level
Operating temperature
Vibration resistance
Chemical exposure
Why Choose CONNODER for M12 Connector Solutions?
CONNODER is a professional industrial connectivity solutions provider specializing in circular connectors and customized connection solutions.
CONNODER provides reliable M12 connector solutions including:
M12 waterproof connectors
M12 panel mount connectors
M12 molded cable assemblies
Customized OEM/ODM connector solutions
With engineering experience, manufacturing capability, and customization support, CONNODER helps customers improve connectivity reliability in automation, robotics, industrial control, and intelligent manufacturing applications.
M12 Connector Selection Checklist
Application environment
Coding type
Pin configuration
Voltage and current requirements
IP protection rating
Mounting method
Cable specification
Customization requirements
Conclusion
Selecting the right M12 connector improves equipment reliability, installation efficiency, and long-term system performance.
Whether you need SMD connectors for PCB integration, panel mount connectors for machinery, assembly connectors for flexible installation, or molded connectors for harsh environments, CONNODER provides dependable industrial connectivity solutions designed for modern automation systems.
What factors should be considered when selecting an M12 connector?
When selecting an M12 connector, engineers should consider several important factors, including application requirements, connector type, coding, pin count, electrical specifications, IP protection rating, installation method, and environmental conditions.
The main selection factors include:
Application type (signal, Ethernet, or power)
Mounting method (SMD, PCB mount, panel mount, assembly, or molded)
Voltage and current requirements
Operating temperature range
Waterproof and dust protection requirements
Choosing the correct M12 connector ensures better reliability, easier installation, and longer service life in industrial applications.
What are the main types of M12 connectors?
The main types of M12 connectors include:
1. SMD M12 Connector
Designed for direct PCB surface mounting. It is suitable for compact electronic devices, smart sensors, and automated PCB assembly.
2. Assembly M12 Connector
Allows users to install cables manually in the field. It is suitable for customized cable lengths and maintenance applications.
3. Panel Mount M12 Connector
Designed to be installed on equipment panels, control cabinets, and machine housings.
4. Molded M12 Connector
A pre-wired connector with an injection-molded sealing structure, providing excellent waterproof performance and reliability.
Each type has different advantages depending on the application environment.
What is the difference between molded M12 connectors and assembly M12 connectors?
The main difference between molded and assembly M12 connectors is the cable installation method.
Molded M12 connectors:
Factory pre-assembled cable solution
Higher waterproof reliability
Better resistance to vibration and harsh environments
Faster installation
Assembly M12 connectors:
Allow field cable termination
Provide flexible cable length customization
Easier maintenance and repair
Suitable for small batches or special projects
For demanding industrial environments, molded M12 connectors are often preferred because of their consistent sealing performance.
How do I choose between an M12 panel mount connector and an M12 PCB mount connector?
The choice depends on the equipment design and installation requirements.
Choose an M12 PCB mount connector when:
The connector needs to be directly integrated into a circuit board
Space-saving design is important
Automated PCB assembly is required
Choose an M12 panel mount connector when:
The connector needs to be installed on equipment housing
External device connection is required
Easy maintenance and replacement are important
M12 PCB connectors are commonly used inside electronic devices, while panel mount connectors are widely used in industrial machines and control systems.
