Introduction to Common Connectors for Industrial Automation Sensors
- Share
- Issue Time
- Sep 26,2025
Summary
Industrial automation relies on reliable, standardized connectors to ensure stable sensor and actuator communication. Among them, circular connectors like M8, M12, and M16 are widely adopted for their durability and adaptability. This page introduces the most common sensor connectors, with a focus on the M16 Circular Connector — a versatile solution for industrial environments.
Introduction to Common Connectors for Industrial Automation Sensors
Introduction
Industrial automation relies on reliable, standardized connectors to ensure stable sensor and actuator communication. Among them, circular connectors like M8, M12, and M16 are widely adopted for their durability and adaptability. This page introduces the most common sensor connectors, with a focus on the M16 Circular Connector — a versatile solution for industrial environments.
Why Connectors Matter in Industrial Automation
Signal reliability: Prevents data loss in harsh factory conditions.
Durability: Withstands vibration, dust, and moisture.
Standardization: Ensures interoperability across global equipment.
Efficiency: Simplifies installation and maintenance.

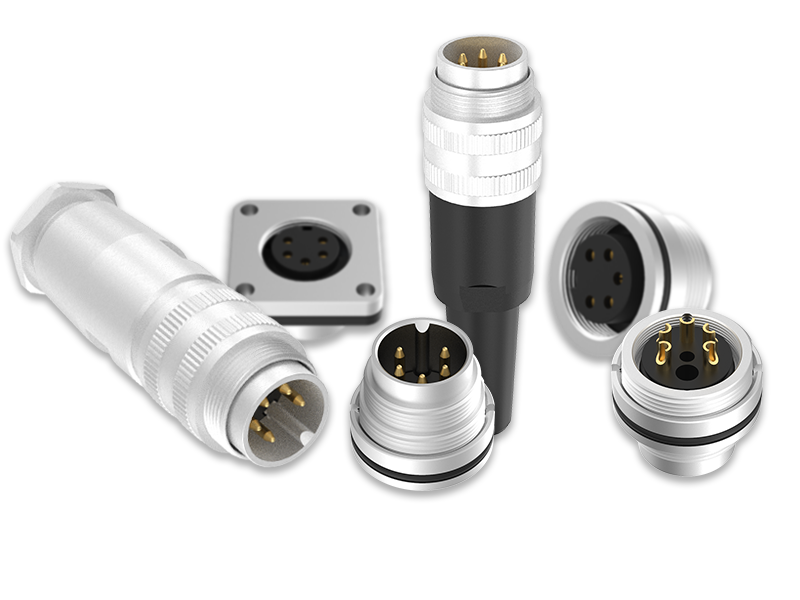

Circular Connectors (M16)
Rugged, compact and versatile — ideal when you need mixed power & signal plus environmental protection.
Overview of Common Connectors in Automation Sensors
Compact, ideal for small sensors. Typically 3–4 pins. Common in space-constrained applications..
The most common industrial sensor connector. Various codings (A, B, D, X) for power, signal, or data. Widely used in process automation.
Mid-size circular connector. Supports 2-24 pins and higher current. Strong sealing (IP67/IP68) options for harsh environments. Ideal for industrial control systems, robotics, and machinery.
M16 Circular Connector for Industrial Applications
Based on MOCO Connectors’ insights, the M16 Circular Connector is designed with:
Threaded coupling mechanism: secure, vibration-proof connection.
Customizable pin configurations: flexible for different current/voltage needs.
High environmental resistance: waterproof, dustproof, and corrosion resistant.
Industrial reliability: proven in automation, robotics, defense, and telecom.
At Connoder, our M16 Circular Connectors are engineered for industrial-grade performance with:
Extended mating cycles for long service life.
Precision sealing for outdoor/harsh conditions.
Flexible cabling options for automation systems.
Key Industrial Applications of M16 Connectors
Robotics: secure power & signal connections in moving systems.
Automation machinery: stable communication for actuators and controllers.
Industrial control panels: higher pin density for compact system wiring.
Transportation & logistics: rugged solutions for sensors in harsh settings.

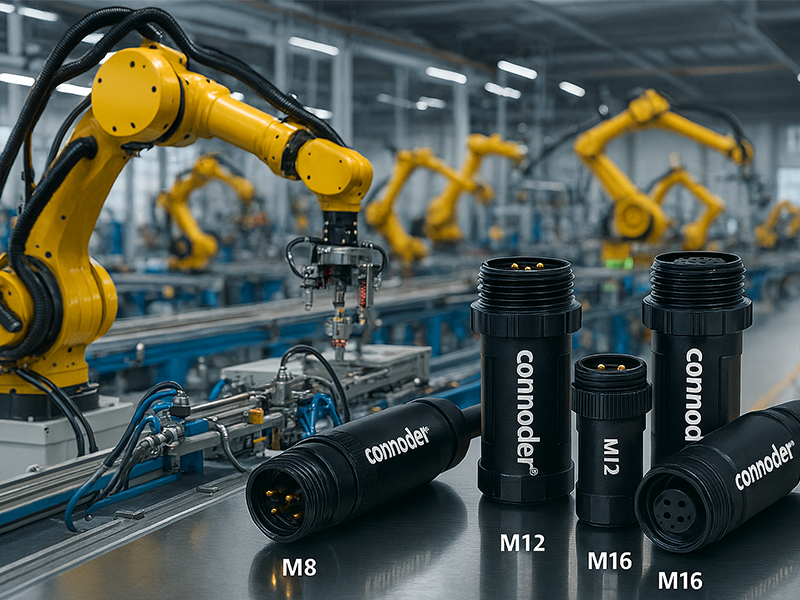

The application of different types of connectors in industrial automation

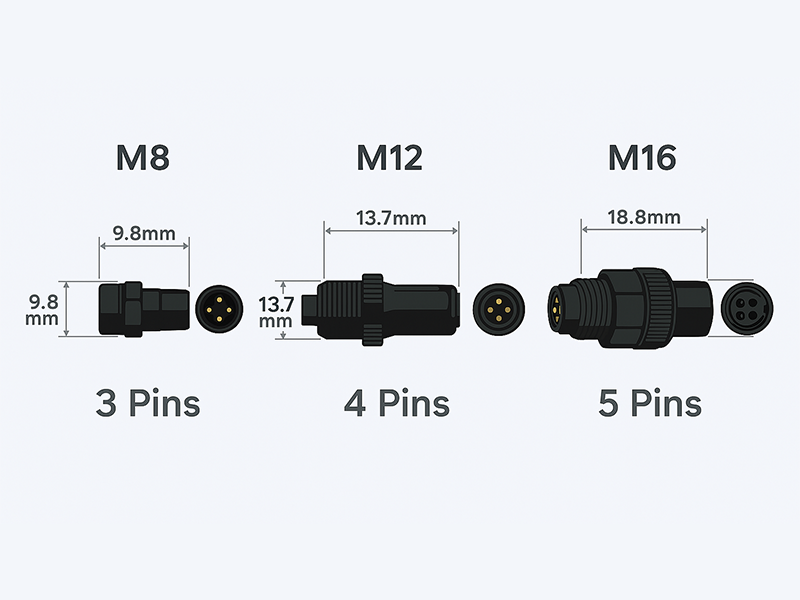

Display of pins for different types of connectors

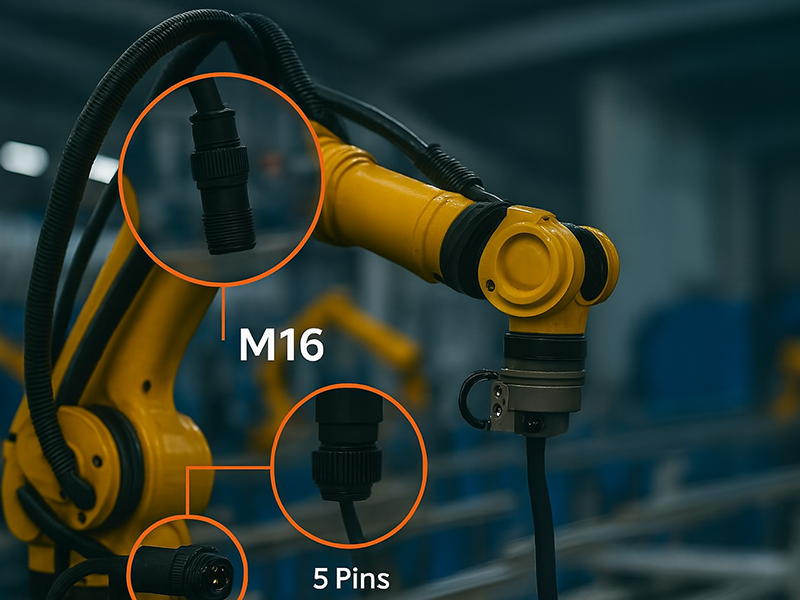

Details of Connectors in Industrial Applications
Choosing the Right Connector for Your Project
Consider environmental demands (IP rating, corrosion resistance).
Match pin count & voltage/current rating to your application.
Verify certifications & compliance (RoHS, REACH, DIN standards).
Source from trusted manufacturers for long-term reliability.
At Connoder, we provide expert guidance and high-quality connector solutions to match your industrial needs.
Contact us for technical consultation or a tailored quotation:
👉
Conclusion
The evolution of industrial automation depends on reliable connectors. While M8 and M12 dominate compact sensor applications, the M16 Circular Connector offers a powerful balance of versatility, durability, and higher pin capacity — making it a prime choice for demanding industrial applications.
By choosing Connoder’s M16 Circular Connector solutions, you ensure not only robust connectivity but also long-term reliability backed by industry expertise.
What are the most common connectors used in industrial automation sensors?
The most widely used connectors are M8, M12, and M16 circular connectors. M8 is suited for compact sensors, M12 is the industry standard for sensor and fieldbus connections, and M16 offers higher pin counts and durability for more demanding industrial applications.
Why is the M16 Circular Connector suitable for industrial applications?
The M16 Circular Connector provides a secure threaded locking system, multiple pin configurations, and strong sealing options (IP67/IP68). These features make it ideal for harsh environments, such as robotics, automation machinery, and outdoor industrial control systems.
How does an M16 connector compare with M8 and M12 connectors?
Compared with M8 (smaller, fewer pins) and M12 (standardized, versatile), the M16 offers more pins (up to 12), higher current capacity, and superior durability. This makes M16 a better choice for applications requiring robust performance and higher-density wiring.
In which industries are M16 Circular Connectors commonly used?
M16 connectors are widely applied in robotics, automation machinery, control panels, transportation, and logistics systems. Their rugged design ensures reliable performance in environments with vibration, dust, and moisture.
