Introduction
M12 circular connectors are widely used across industrial automation, robotics, sensors, transportation equipment, and outdoor machinery due to their exceptional durability and environmental sealing. In harsh industrial environments—where dust, water, vibration, chemicals, and high-pressure wash-downs are common—reliable connectivity is crucial for maintaining system uptime.
At NODERCONN, we specialize in designing and manufacturing high-performance M12 circular connectors engineered for real-world industrial demands. This article provides a comprehensive analysis of the durability and sealing performance of M12 connectors, including a detailed comparison of IP ratings.
M12 Circular Connectors
Rugged, compact and versatile — ideal when you need mixed power & signal plus environmental protection.
1. What Defines a Harsh Industrial Environment?
Harsh environments typically include:
Heavy dust, dirt, and particulate exposure
Moisture, rain, and chemical sprays
Periodic immersion or standing water
High-pressure or high-temperature wash-downs
Temperature cycling from −40°C to +85°C or higher
Constant vibration or mechanical shock

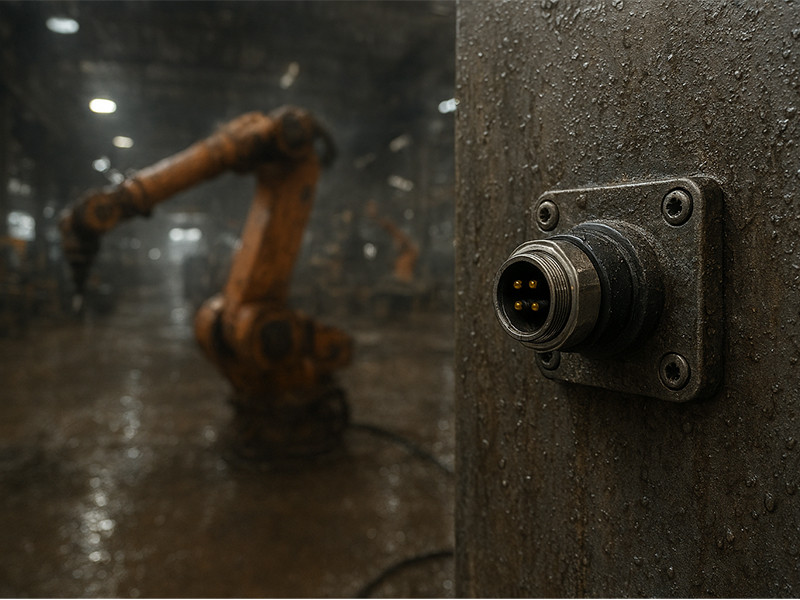

The sturdy M12 circular connector installed on the machine
In the industrial factory workshop, multiple machines are equipped with sturdy M12 circular connectors. These connectors operate stably in dusty and humid environments, demonstrating reliable protection performance and durability.
2. Understanding IP Ratings for M12 Circular Connectors
Ingress Protection (IP) ratings define how resistant a connector is to dust and liquid. These ratings are essential when selecting the appropriate M12 connector for harsh environments.
| IP Rating | Dust Protection | Water Protection | Meaning |
| IP65 | Dust Tight | Water Jets | Suitable for moderate industrial conditions |
| IP67 | Dust Tight | Temporary Immersion | Standard for most industrial M12 connectors |
| IP68 | Dust Tight | Continuous Immersion | Ideal for outdoor or submerged environments |
IP69K | Dust Tight | High-Pressure Hot Water Spray | Best for food processing, heavy wash-down, or extreme contamination |

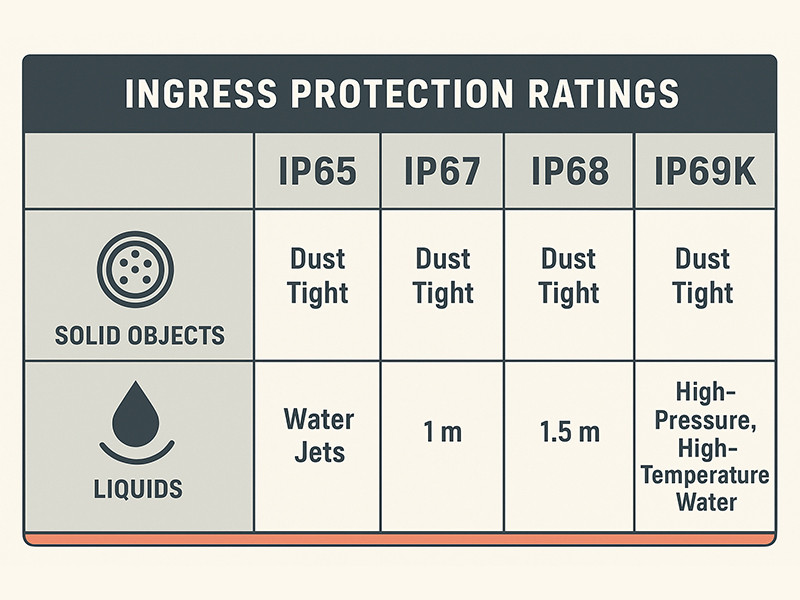

Comparison of IP65, IP67, IP68, and IP69K Protection Levels
This picture presents a comparison of four protection levels: IP65, IP67, IP68 and IP69K. It clearly shows the performance differences in terms of dust prevention, water resistance, and resistance to high-pressure and high-temperature rinsing among these levels, providing a visual reference for selection.
3. Why M12 Connectors Excel in Durability & Sealing
a) Screw-Locking Circular Design
M12’s threaded coupling prevents loosening under vibration, ensuring consistent sealing—ideal for AGVs, outdoor control boxes, and factory automation.
b) High-Quality Sealing Materials
O-rings, compression seals, and precision housings help M12 connectors maintain IP67–IP69K protection even in harsh conditions.
c) Tested for Real-World Conditions
Water immersion tests (IPx7/IPx8)
High-pressure wash-down (IP69K)
Vibration & shock resistance
Salt spray corrosion testing

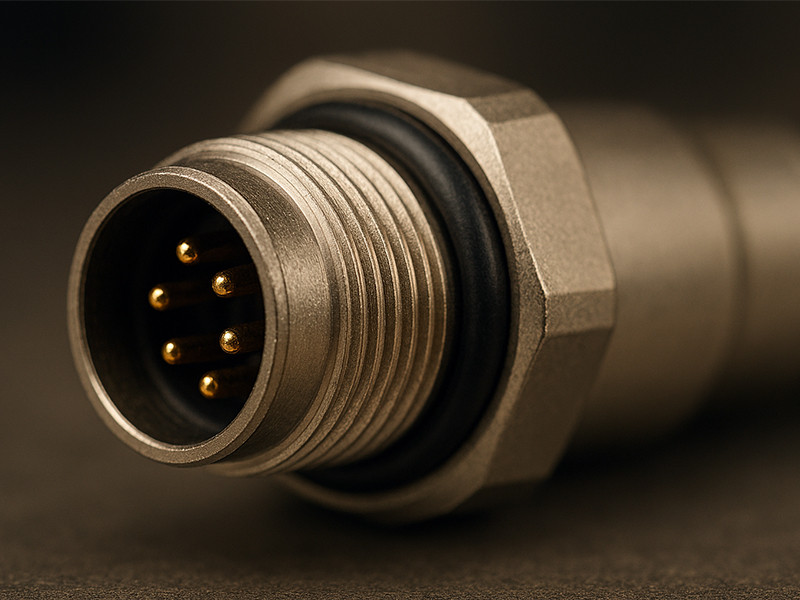

M12 Circular Connector
This picture is a close-up shot of the M12 circular connector, clearly showing its precise structure, interface details and sturdy appearance, highlighting the product's required accuracy and reliability in industrial connection scenarios.
4. Choosing the Right IP Rating for Your Application
| Environment | Recommended IP Rating | Reason |
| Indoor manufacturing | IP65–IP67 | Dust & occasional moisture |
| Outdoor equipment | IP67 | Handles rain & splash |
| Water-immersed machinery | IP68 | Continuous immersion |
High-pressure wash-down | IP69K | Hot high-pressure cleaning |
5. Installation & Maintenance Tips
Always tighten connectors to the specified torque.
Keep sealing surfaces clean before mating.
Use protective caps when unmated.
Inspect O-rings regularly.
Use metal-shell versions if chemical exposure is expected.

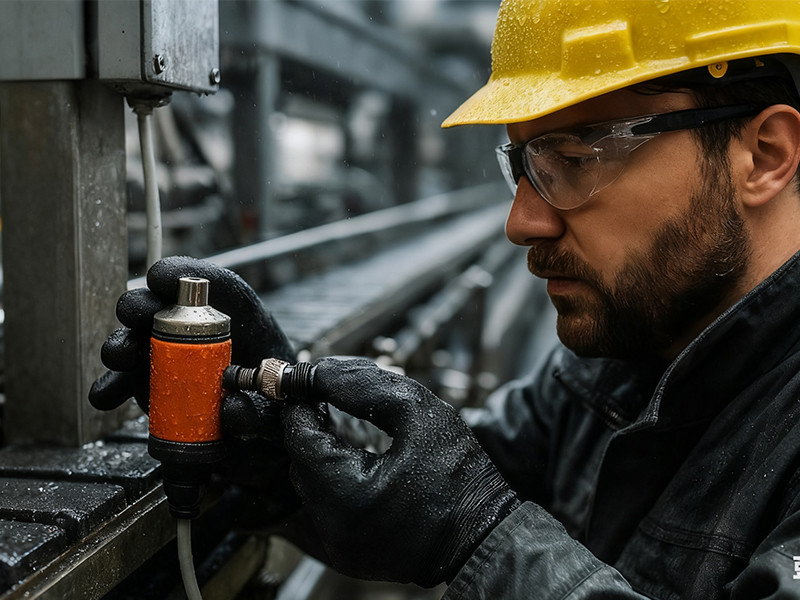

Installation of M12 circular connector
On the dusty assembly line, technicians are installing M12 circular connectors onto industrial sensors. The operational scene vividly demonstrates the installation process of the product on industrial equipment, highlighting its adaptability in complex environments.
6. Why Choose NODERCONN M12 Circular Connectors
IP67 / IP68 / IP69K options across all coding types
Metal & reinforced polymer shells for enhanced durability
Vibration-resistant screw locking
Custom cable assemblies available
Global engineering support for OEM/ODM
Contact our engineering team or request samples via our contact page.
Conclusion
M12 circular connectors deliver outstanding durability and sealing for harsh industrial environments. Whether your application requires IP67 for automation, IP68 for immersion, or IP69K for high-pressure wash-downs, choosing the right M12 connector ensures long-term reliability and performance.
What makes M12 circular connectors suitable for harsh industrial environments?
M12 circular connectors feature a threaded locking mechanism, durable metal or reinforced polymer shells, and high-performance sealing components such as O-rings. These elements allow the connectors to resist dust, moisture, vibration, and chemical exposure, making them ideal for factories, outdoor systems, and automation equipment.
What is the difference between IP67, IP68, and IP69K ratings for M12 connectors?
IP67: Dust-tight and protected against temporary water immersion.
IP68: Designed for continuous immersion under manufacturer-specified conditions.
IP69K: Resistant to high-pressure, high-temperature water spray, typically required in food processing or heavy wash-down environments.
Choosing the right rating ensures long-term reliability based on your application’s exposure conditions.
How do I choose the right M12 connector IP rating for my equipment?
You should evaluate exposure to dust, water, chemicals, vibration, and cleaning conditions.
General indoor automation: IP65–IP67
Outdoor machinery: IP67
Water-immersed applications: IP68
High-pressure wash-down: IP69K
When in doubt, select the highest rating that aligns with your environment’s stress levels.
What factors affect the sealing performance of M12 connectors over time?
Sealing performance can degrade due to O-ring wear, improper torque during installation, contamination of sealing surfaces, exposure to chemicals, or mechanical vibration. Regular inspection and correct mating procedures help maintain the IP protection level.
