Summary
M12 circular connectors are essential components in industrial automation due to their compact size, reliability, and resistance to harsh environments. However, users frequently encounter challenges such as installation errors, incorrect connector selection, and system faults. This guide provides best practices for selecting and installing M12 connectors, diagnosing common issues, and improving long-term system reliability.

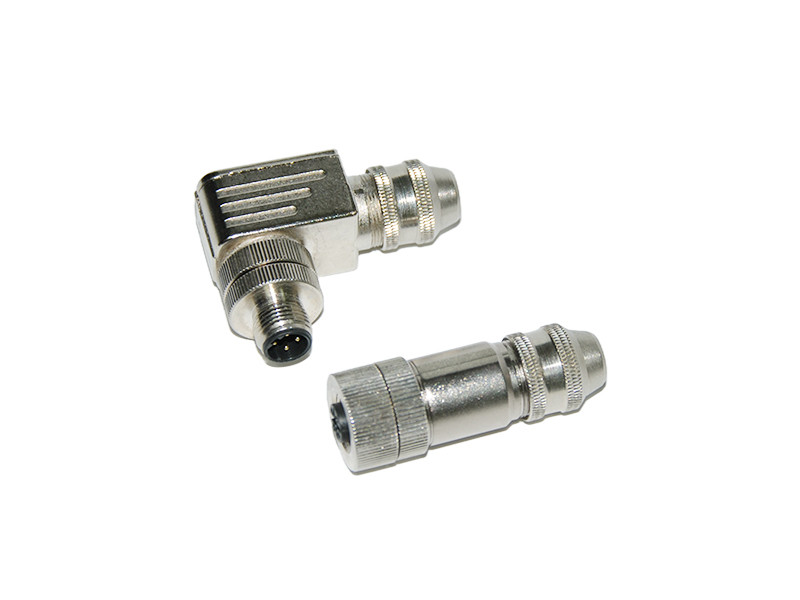

Common Issues of M12 Circular Connectors: Selection, Installation and Fault Diagnosis
Introduction
M12 circular connectors are essential components in industrial automation due to their compact size, reliability, and resistance to harsh environments. However, users frequently encounter challenges such as installation errors, incorrect connector selection, and system faults. This guide provides best practices for selecting and installing M12 connectors, diagnosing common issues, and improving long-term system reliability. As a professional manufacturer, Connoder offers engineering-level expertise and high-performance M12 solutions backed by years of experience.
M12 Circular Connectors
Rugged, compact and versatile — ideal when you need mixed power & signal plus environmental protection.
About Connoder – Your Trusted Industrial Connector Partner
Connoder specializes in the design and manufacturing of high-quality circular connectors for industrial automation, machinery, sensors, and transportation. Our engineering team ensures strict quality control, advanced production processes, and durable materials across all M-series connectors.
Selecting the Right M12 Circular Connector
Connector Coding & Pin Layout
M12 connectors come in various codings including A-code, D-code, X-code, S-code, T-code, and more. Choosing the wrong coding often results in device mismatch or system failure. Ensure that coding and pin layout match your device communication method (e.g., sensor signal, Ethernet, power transmission).
Environmental Protection & Material Selection
Evaluate the required protection rating (IP65, IP67, IP68) according to environmental conditions. For outdoor, dusty, wet, or high-vibration environments, choose connectors with durable O-rings and strong metal housing for enhanced reliability.
Shielding & Grounding Requirements
For EMC-sensitive systems, shielded M12 connectors significantly reduce signal noise. Ensure that the cable’s shielding layer is properly grounded to avoid electromagnetic interference and data corruption.

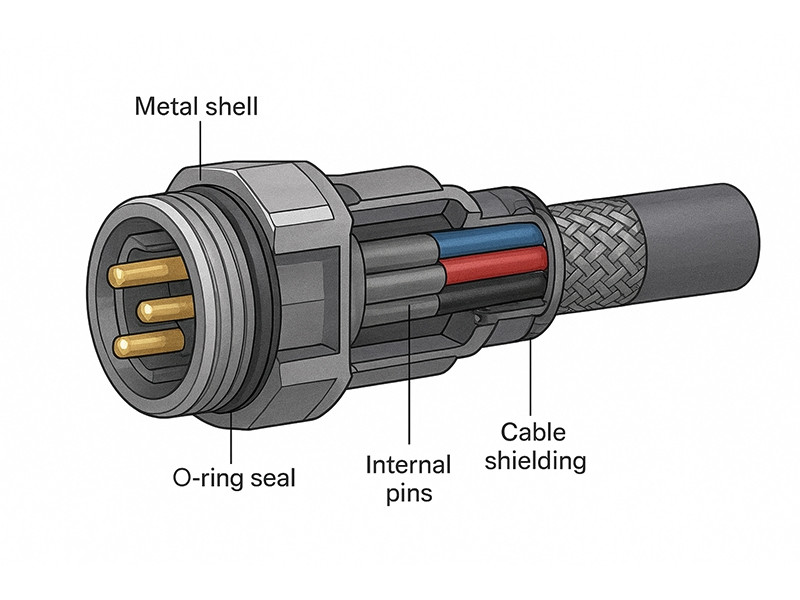

Show the structure of the connector, including the housing, sealing ring (O-ring), pins, and shielding layer.
The precise structure is seamlessly integrated layer by layer. The protective components and the conductive core work together. The shielding design isolates interference. It provides comprehensive support for connection stability and is suitable for the demanding transmission requirements in industrial scenarios.
Installing M12 Circular Connectors – Best Practices
Pre-Installation Preparation
Before installation, check the cable conductor size, confirm O-ring integrity, and prepare proper tools such as wire strippers, crimping tools, and torque wrenches. Proper pre-inspection ensures long-term connector performance.
Cable Preparation & Termination
Carefully strip cables to protect shielding layers and conductors. Poor crimping or soldering often leads to system instability. Ensure every conductor is firmly terminated.

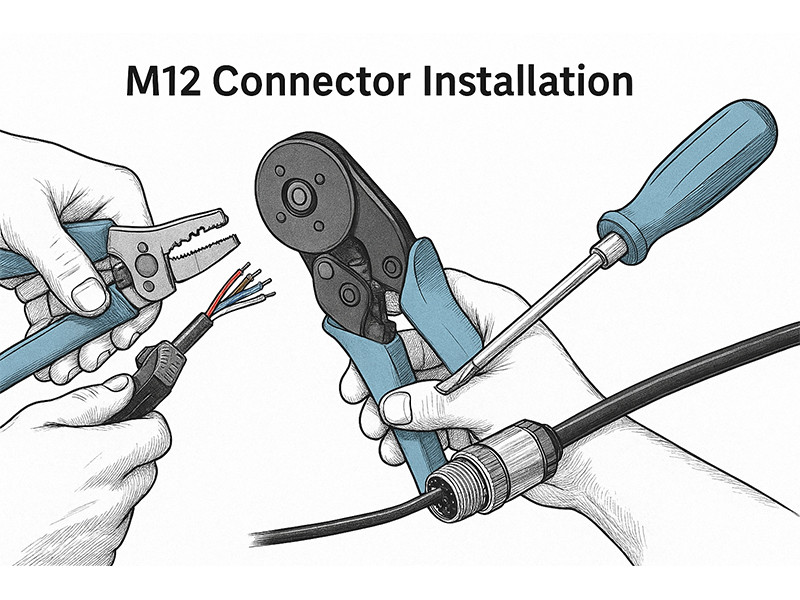

Torque screwdriver, wire stripper and wire crimping pliers are installing the M12 connector.
The professional tools work in perfect harmony, precisely controlling every detail of the installation process, from wire handling to secure connection. The process is standardized and efficient, laying a reliable connection foundation for industrial connectors and meeting the strict requirements of automated scenarios.
Assembly & Sealing
Proper alignment is essential to avoid bent pins during installation. Tighten the connector housing based on recommended torque values. Over-tightening can damage threads, while insufficient torque may cause seal failure.

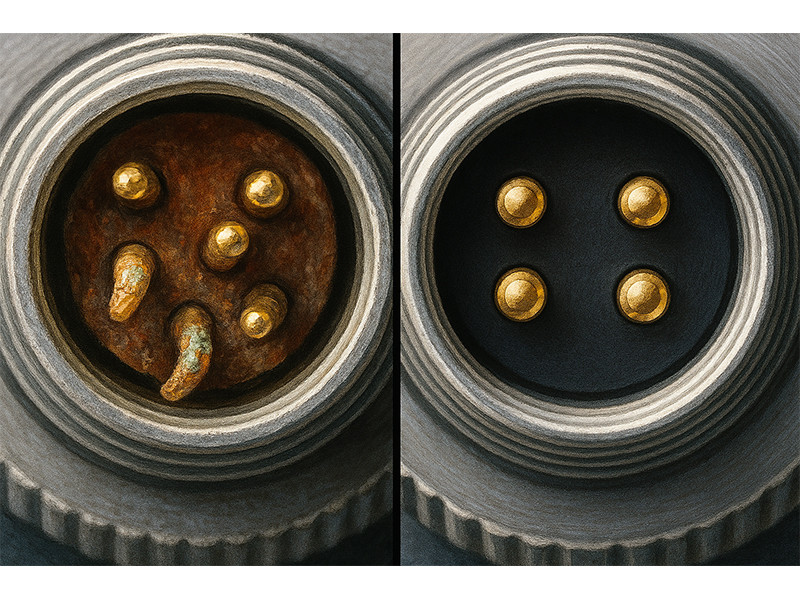

On one side, there is corrosion / bent needles causing poor contact; on the other side, there are clean and properly aligned pins.
The malfunction of the contact on one side causes the connection to be obstructed. On the other side, it is clean, regular, and precisely fits, presenting a stark contrast that highlights the importance of standard maintenance and high-quality standards, thereby providing a crucial guarantee for the stable operation of industrial equipment.
Post-Installation Testing
Perform continuity tests, insulation resistance measurements, and visual sealing inspections after installation to validate connector performance.
Diagnosing Common M12 Connector Issues
1. Poor Contact / High Resistance
Common causes include oxidation, loose crimping, or frequent mating cycles. Solutions include cleaning contacts, re-crimping, or replacing damaged terminals.
2. Sealing Failure
Seal failure leads to water ingress and corrosion. Replace worn or aged O-rings and ensure correct tightening torque during assembly.

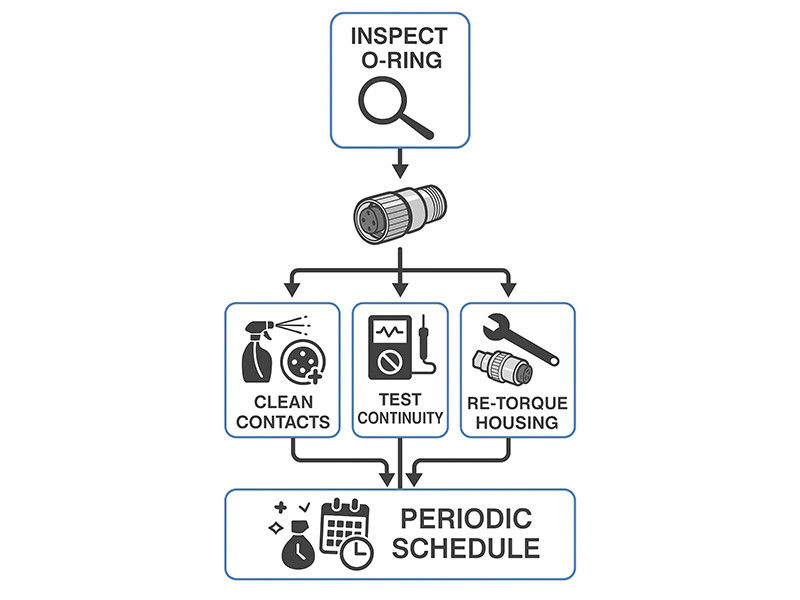

Step-by-step flowchart for daily inspections (sealing, grounding, testing)
The process is clearly broken down into the key steps of industrial connection maintenance, ranging from protection verification to performance testing. Each step is meticulously controlled and closed in a loop. Through standardized operations, a solid foundation for equipment stability is established, ensuring the continuous and efficient operation of industrial scenarios.
3. Signal Interference / EMI
Caused by poor shielding or improper grounding. Use shielded M12 connectors and ensure grounding connections are secure.
4. Mechanical Damage
Bent pins, cracked housings, and worn threads require inspection and timely replacement, especially in high-vibration environments.
Why Choose Connoder M12 Circular Connectors
High reliability and durable construction
Multiple coding options including A, D, X, S, T
IP67 / IP68 waterproof and dustproof performance
Shielded, anti-vibration, and high-temperature versions available
Engineering team offers selection and installation support
Strong supply capacity and fast delivery
Conclusion
Proper installation, selection, and maintenance of M12 circular connectors significantly reduce failure rates and improve system reliability. If you need high-quality M12 connectors or expert technical support, Connoder is ready to assist you.
What are the most common issues encountered during the installation of M12 circular connectors?
The most common issues include poor contact caused by incorrect crimping or soldering, seal failure due to improper tightening torque, bent pins during assembly, and electromagnetic interference from insufficient shielding. Proper installation procedures and quality connectors—such as those provided by Connoder—can significantly reduce these risks.
How do I choose the right type of M12 connector for industrial applications?
You should consider connector coding (A, D, X, T, S), the required IP rating, environmental conditions, cable type, and whether shielding is needed for EMI protection. For guidance, Connoder offers technical support and a full range of M12 connector options suitable for industrial automation and harsh environments.
What steps should be taken before installing an M12 circular connector?
Perform visual inspection, verify pin layout and coding, check O-ring condition, prepare tools, strip the cable carefully, and ensure conductors or shielding are not damaged. Following these steps will help ensure a reliable installation and long-term performance.
How can I diagnose faults in an M12 circular connector system?
Use continuity testing, insulation resistance testing, and visual inspection to locate issues such as poor contact, corrosion, damaged seals, or mechanical wear. Signal noise may indicate a grounding or shielding issue, while water ingress often points to sealing failure.
